Globe Valve DN15 PN40

Straight type - SDNR with spring
Item No.
150-00000940
Details

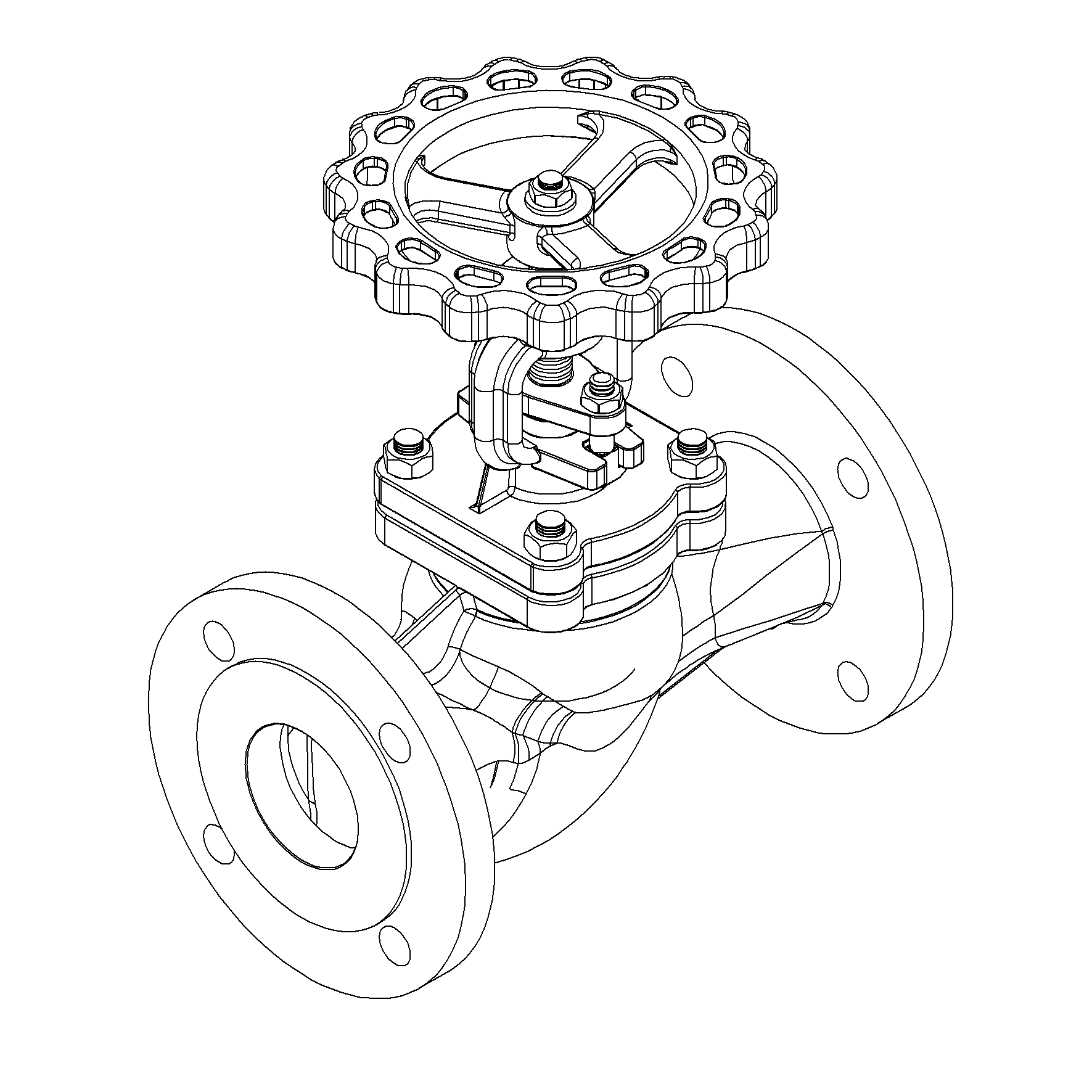

Straight type, Cast Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 467064
Material Body Cast Steel
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 558, series 1
End Standard EN 1092-1
Design Code EN 13709
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 15
Material Seat Stainless Steel, 304
Material Disc Stainless Steel, 420
Pressure Rating PN40
End Type Flanged
Sub Category GLOBE
Item Number 150-00000940
Category Valve
Variant SDNR with spring
Max temperature 300°C

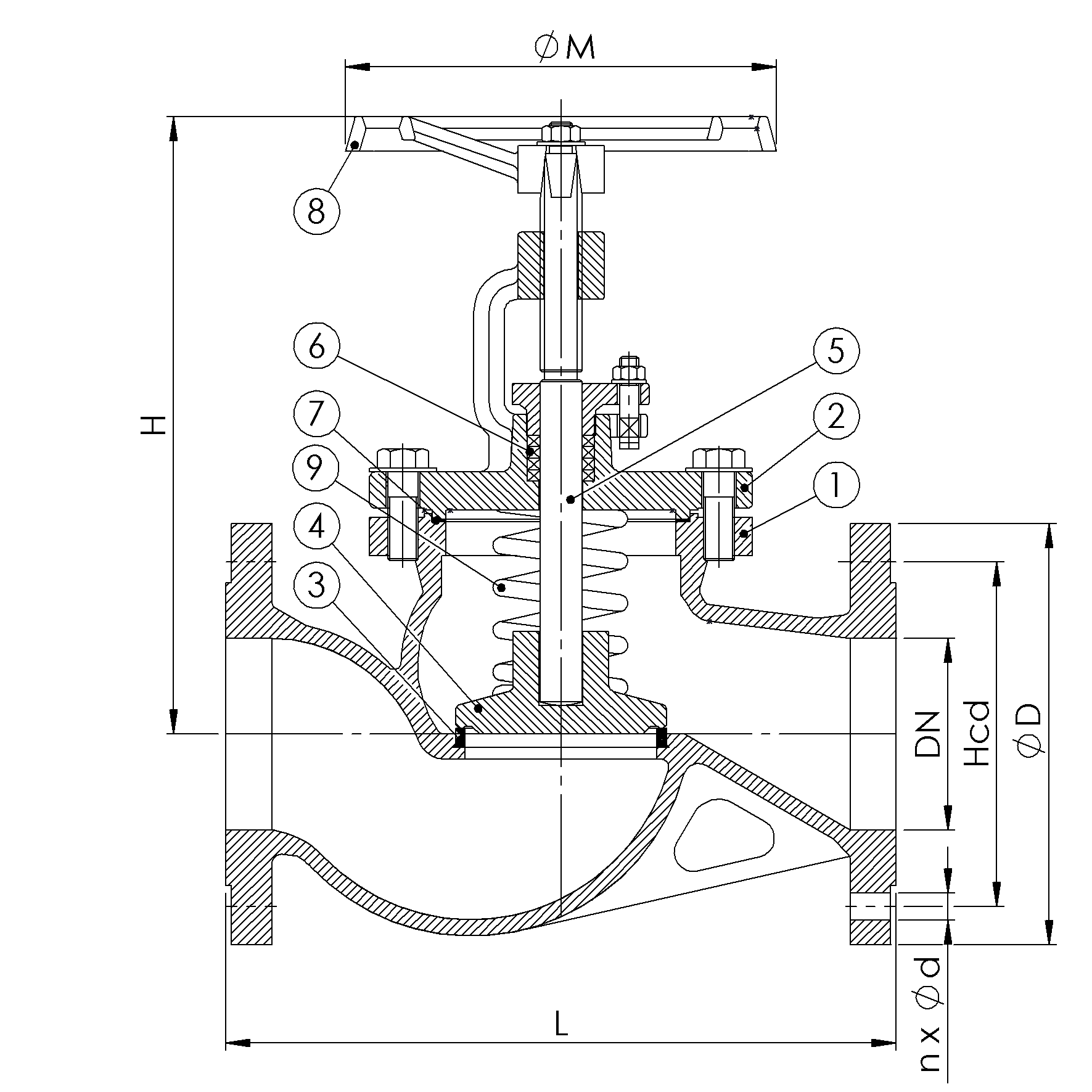

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel GS-C25
2 Bonnet Cast Steel GS-C25
3 Seat Stainless Steel 1.4301
4 Disc Stainless Steel 1.4021
5 Stem Stainless Steel 1.4021
6 Gland packing Graphite
7 Gasket Graphite
8 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
15 40 4x14 65 95 130 4 165 120
