Globe Valve DN15 PN16

Angled type - SDNR with spring
Item No.
150-00002080
Details

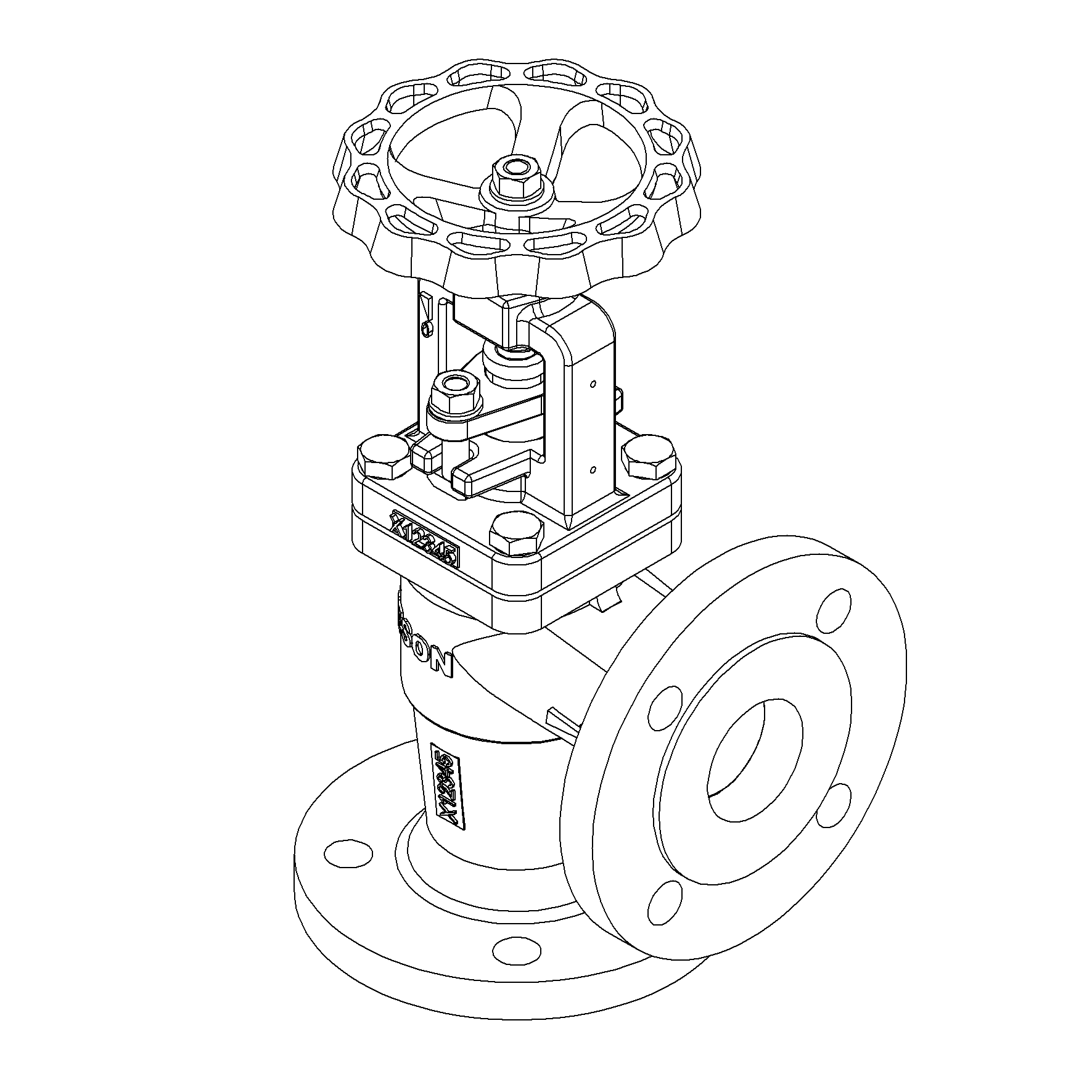

Angled type, Nodular Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 467102
Material Body Nodular Cast Iron, GGG40
Remark Connection: PN16
Throughput Direction Angled
Face To Face Standard EN 558, series 8
End Standard EN 1092-2
Design Code EN 13789
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 15
Material Seat Bronze
Material Disc Bronze
Pressure Rating PN16
End Type Flanged
Sub Category GLOBE
Item Number 150-00002080
Category Valve
Inspection Standard EN 12266
Variant SDNR with spring
Partslist and details

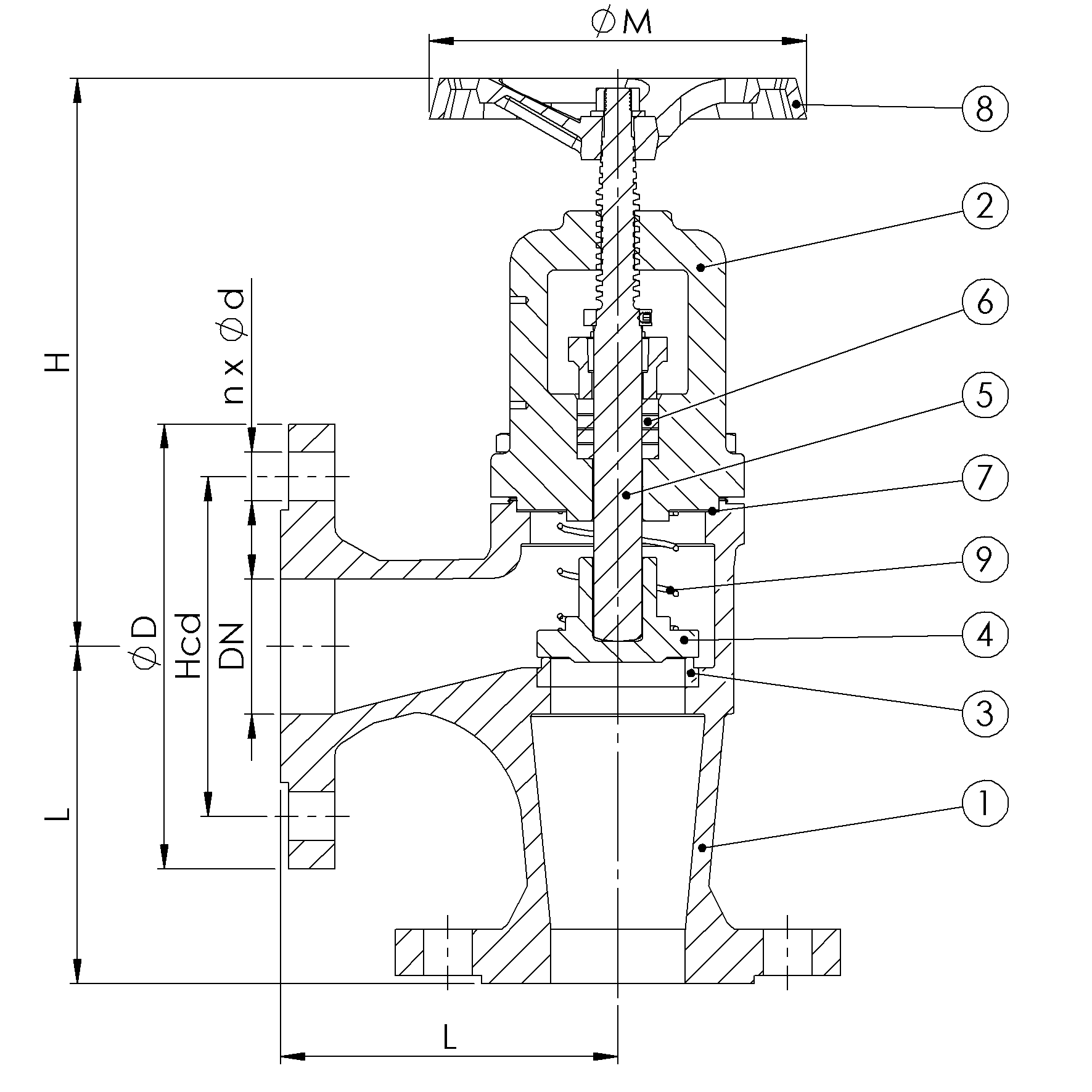

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Bonnet Nodular Cast Iron GGG40
3 Seat Bronze RG5
4 Disc Bronze RG5
5 Stem Special Brass Som59
6 Gland packing Graphite
7 Gasket Graphite
8 Handwheel Cast Iron GG25
9 Spring Stainless Steel 1.4301


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
15 16 4x14 65 95 90 4 173 120
