Globe Valve DN15 JIS 16K

Straight type - SDNR
Item No.
150-00001912
Details

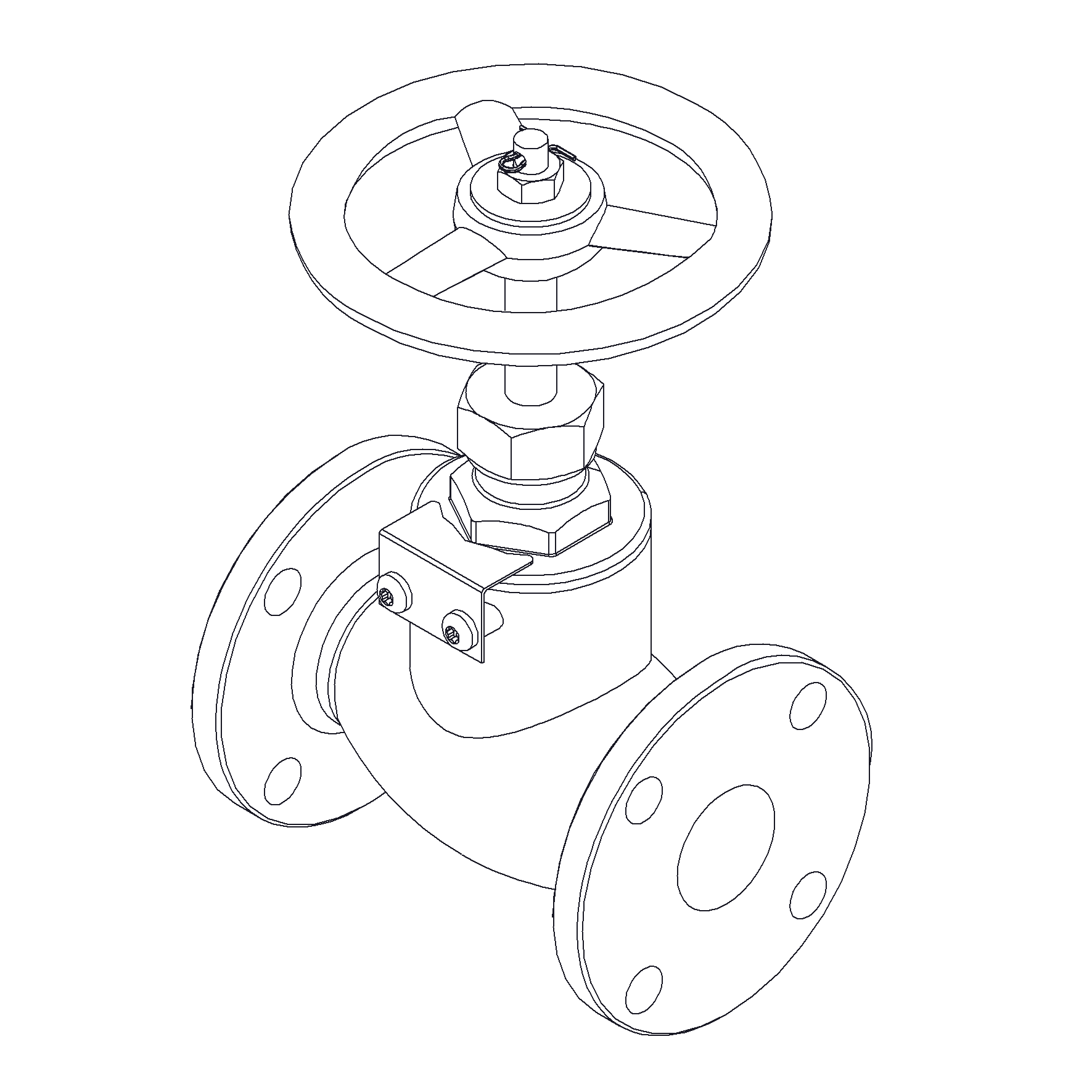

Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group F-7409
Material Body Bronze
Remark Connection: JIS 16K
Throughput Direction Straight
End Standard JIS B2240
Design Code JIS F7303
Standard JIS
Application Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 15
Material Disc Brass
Pressure Rating JIS 16K
End Type Flanged
Sub Category GLOBE
Item Number 150-00001912
Category Valve
Inspection Standard JIS F7400
Variant SDNR
Partslist and details

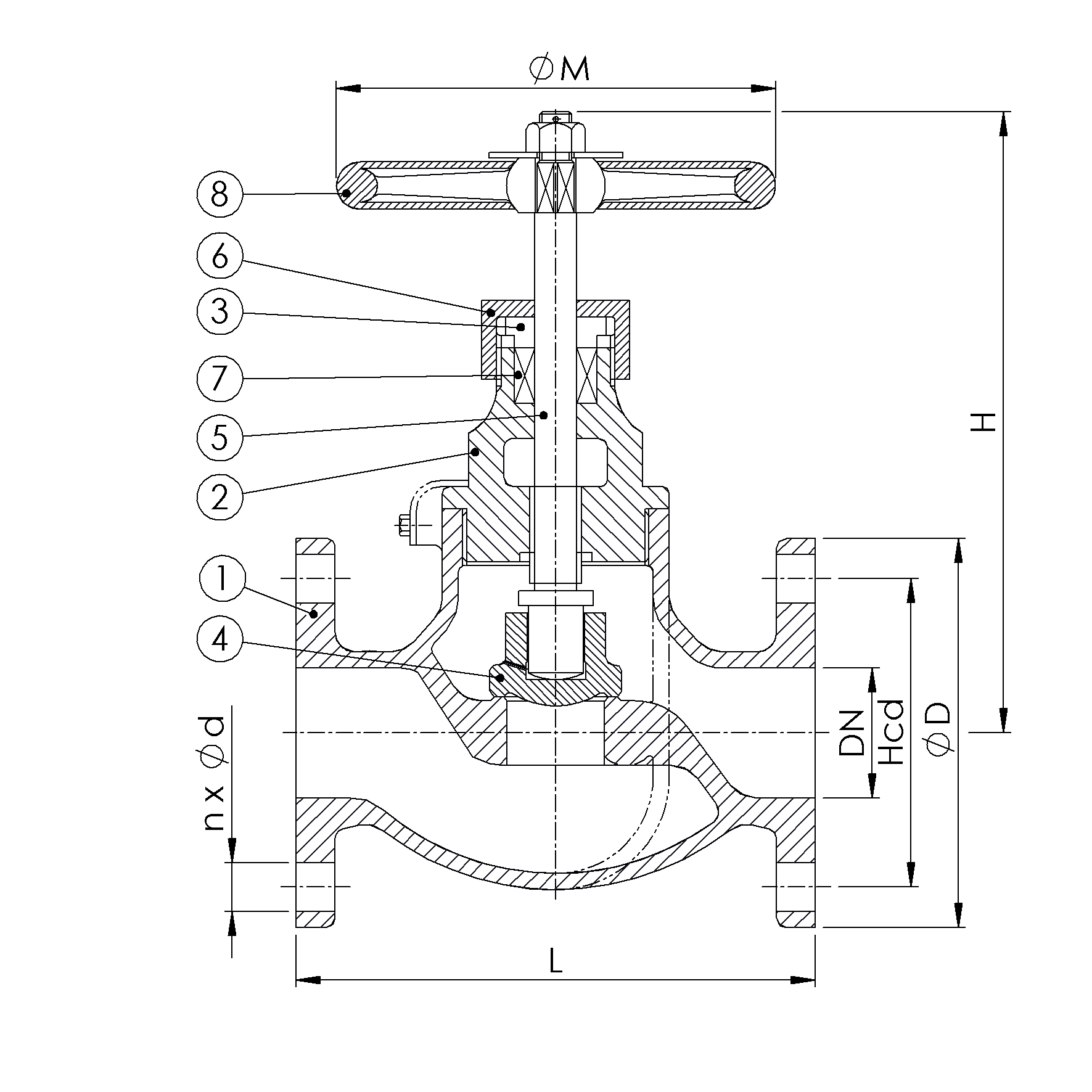

PARTSLIST
No Part Material Code
1 Body Bronze BC 6
2 Bonnet Brass C 3771 BE
3 Gland Brass C 3771 BE
4 Disc Brass C 3771 BE
5 Stem Brass C 3771 BE
6 Gland nut Brass C 3771 BE
7 Packing Graphite
8 Handwheel Cast Iron FC 200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
15 16 4x15 70 95 110 2.8 130 80
