Globe Valve DN125 PN16

Angled type - SDSL
Item No.
150-00000456
Details

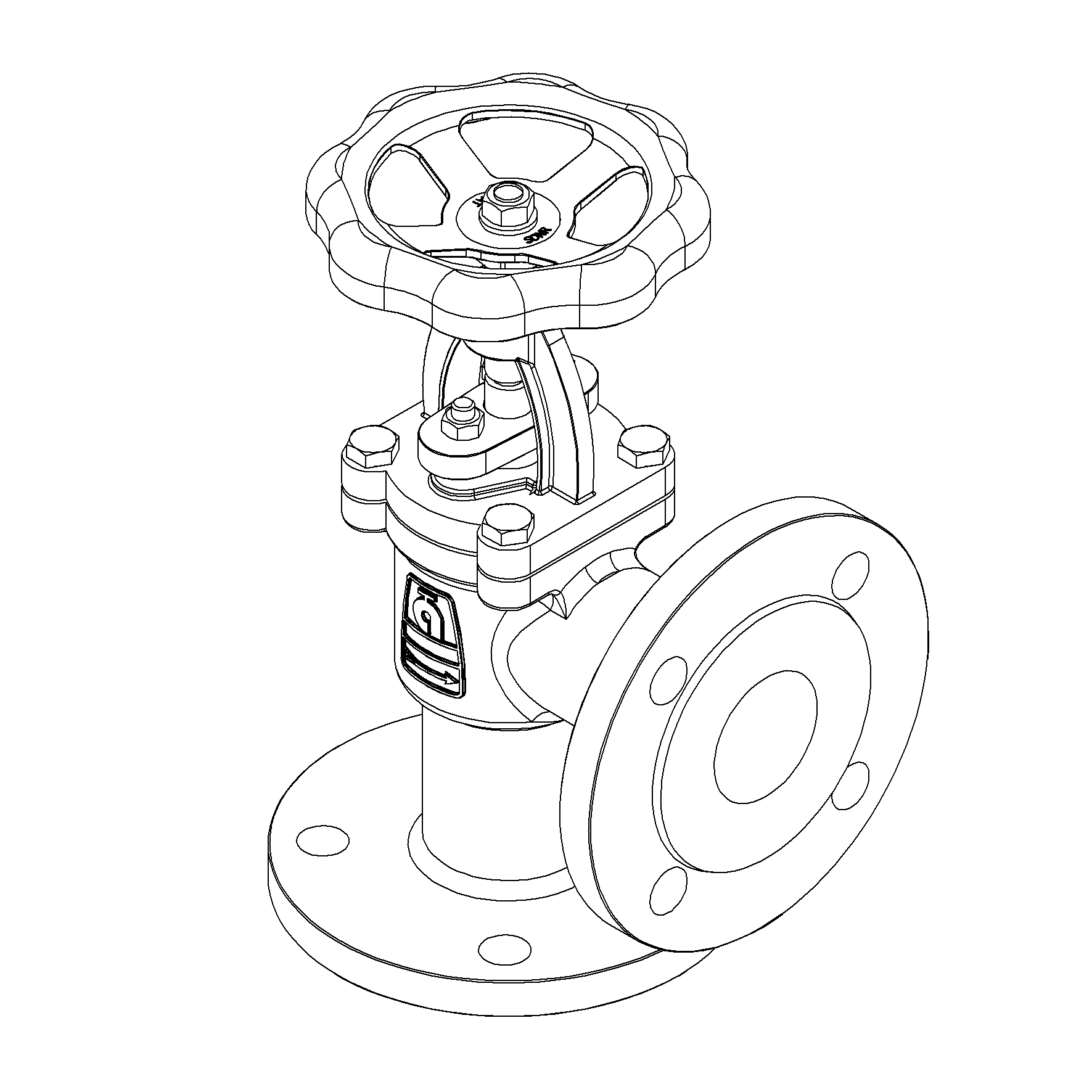

Angled type, RG5 body, metal seated globe valve with rising stem. Bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 458922
Remark Connection: PN16
End Standard EN 1092-3
Face To Face Standard EN 558, series 8
Throughput Direction Angled
Variant SDSL
Material Disc Bronze
End Type Flanged
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 125
Material Body Bronze
Sub Category GLOBE
Item Number 150-00000456
Category Valve
Pressure Rating PN16
Partslist and details

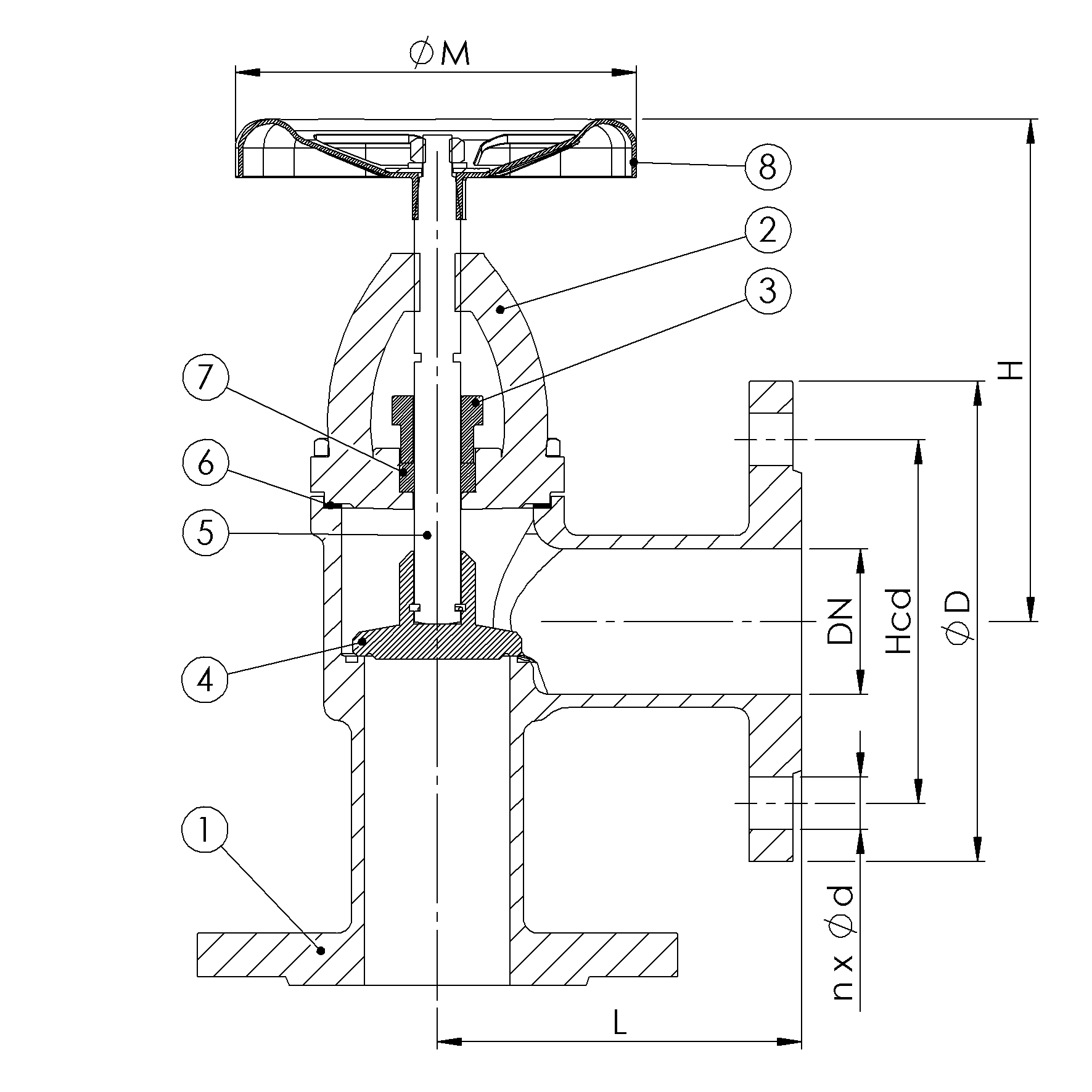

PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Bronze CC 491K
3 Gland Bronze CC 491K
4 Disc Bronze CC 491K
5 Stem Brass CW 602N
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40
- - - -


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
125 16 8x18 210 250 200 47 325 250
