Globe Valve DN100 PN16

Straight type - SDSL
Item No.

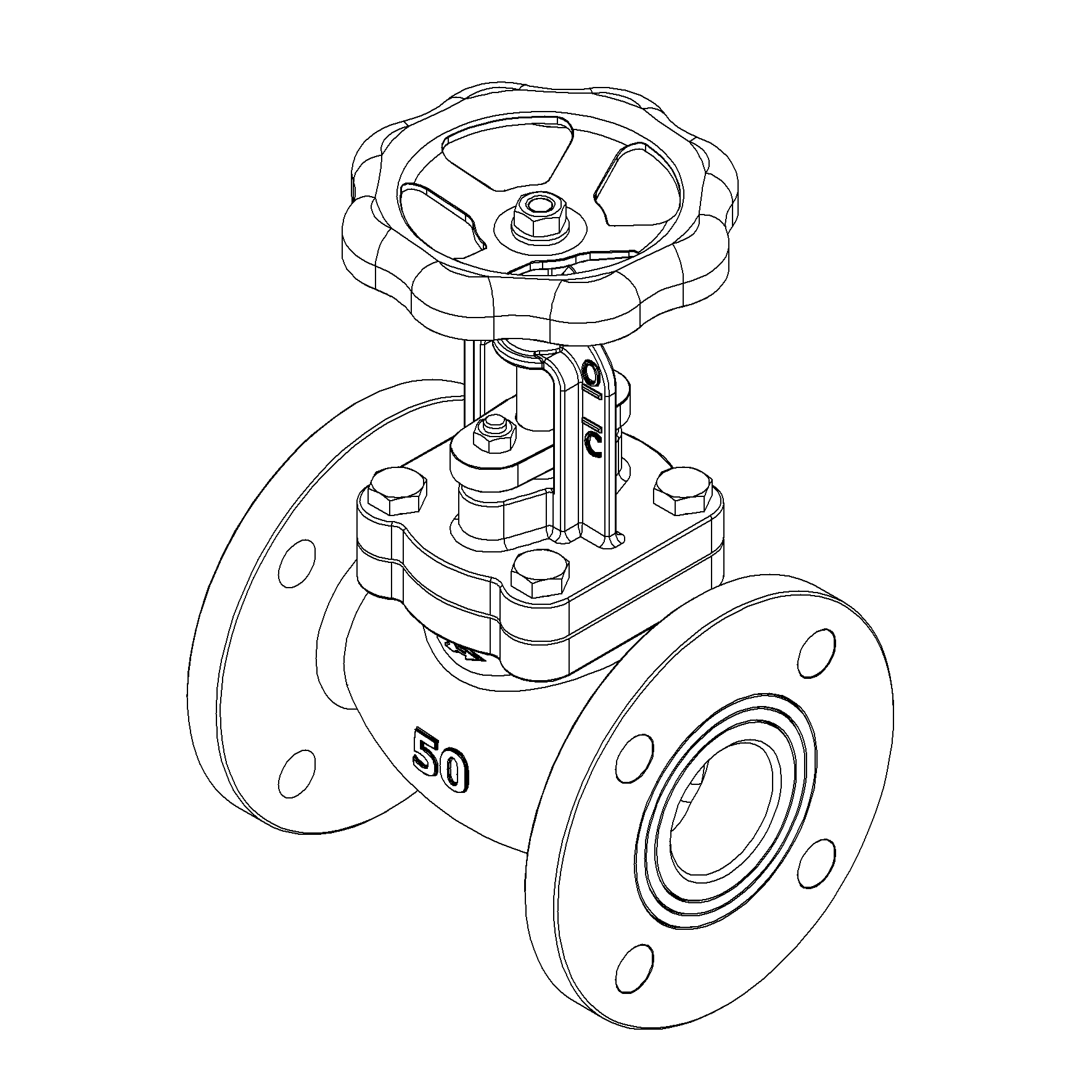

Straight type, RG10 body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
More Information
Product Group 457432
Remark Connection: PN16
End Standard EN 1092-3
Throughput Direction Straight
Variant SDSL
Material Disc Bronze
End Type Flanged
Standard DIN
Application Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 100
Material Body Bronze
Sub Category GLOBE
Item Number 150-00000258
Category Valve
Pressure Rating PN16

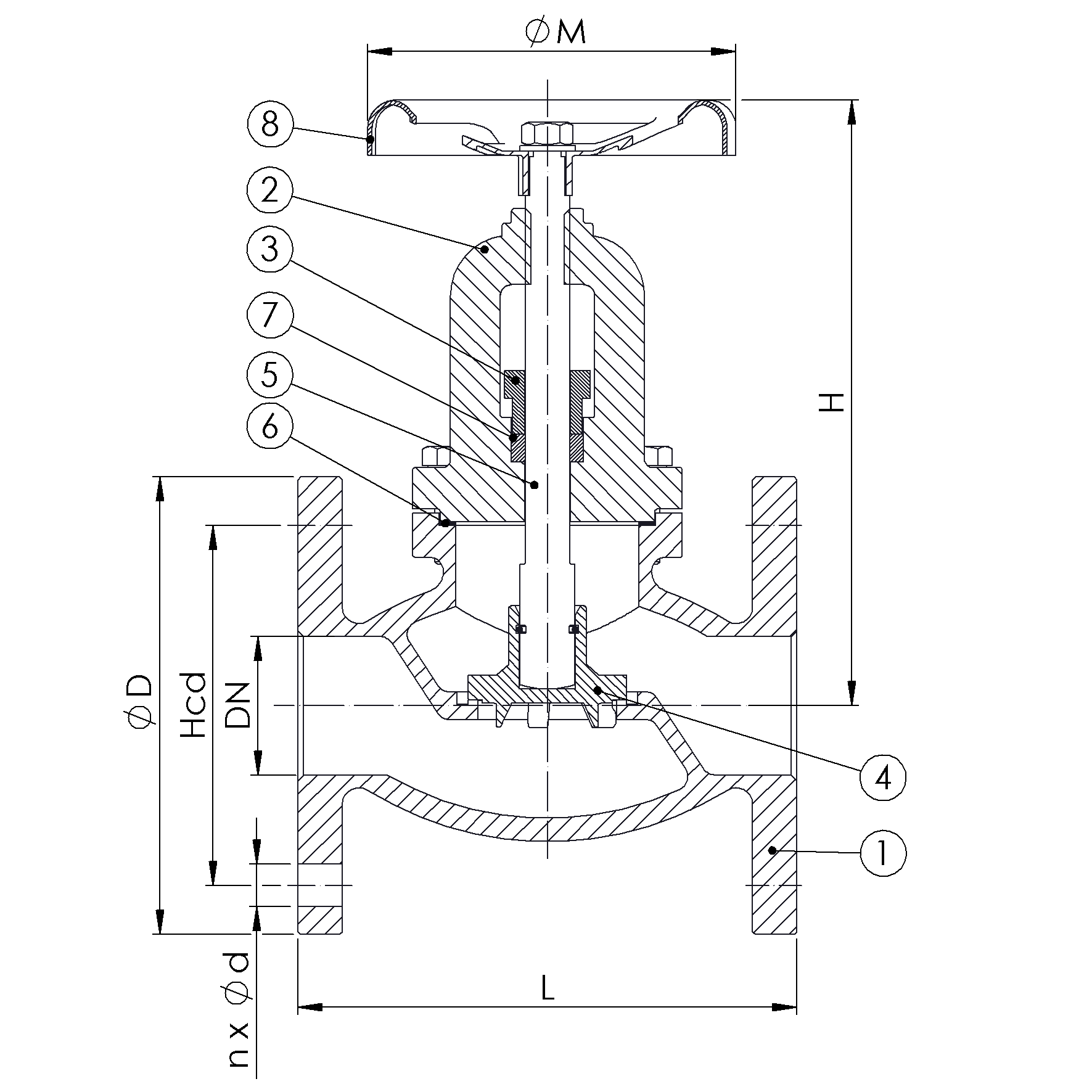

Partslist and details
No Part Material Code
1 Body Bronze CC 482K
2 Bonnet Bronze CC 482K
3 Gland Bronze CC 482K
4 Disc Bronze CC 481K
5 Stem Aluminium Bronze CC 333G
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40

DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
100 16 8x18 180 220 280 29.8 340 200
