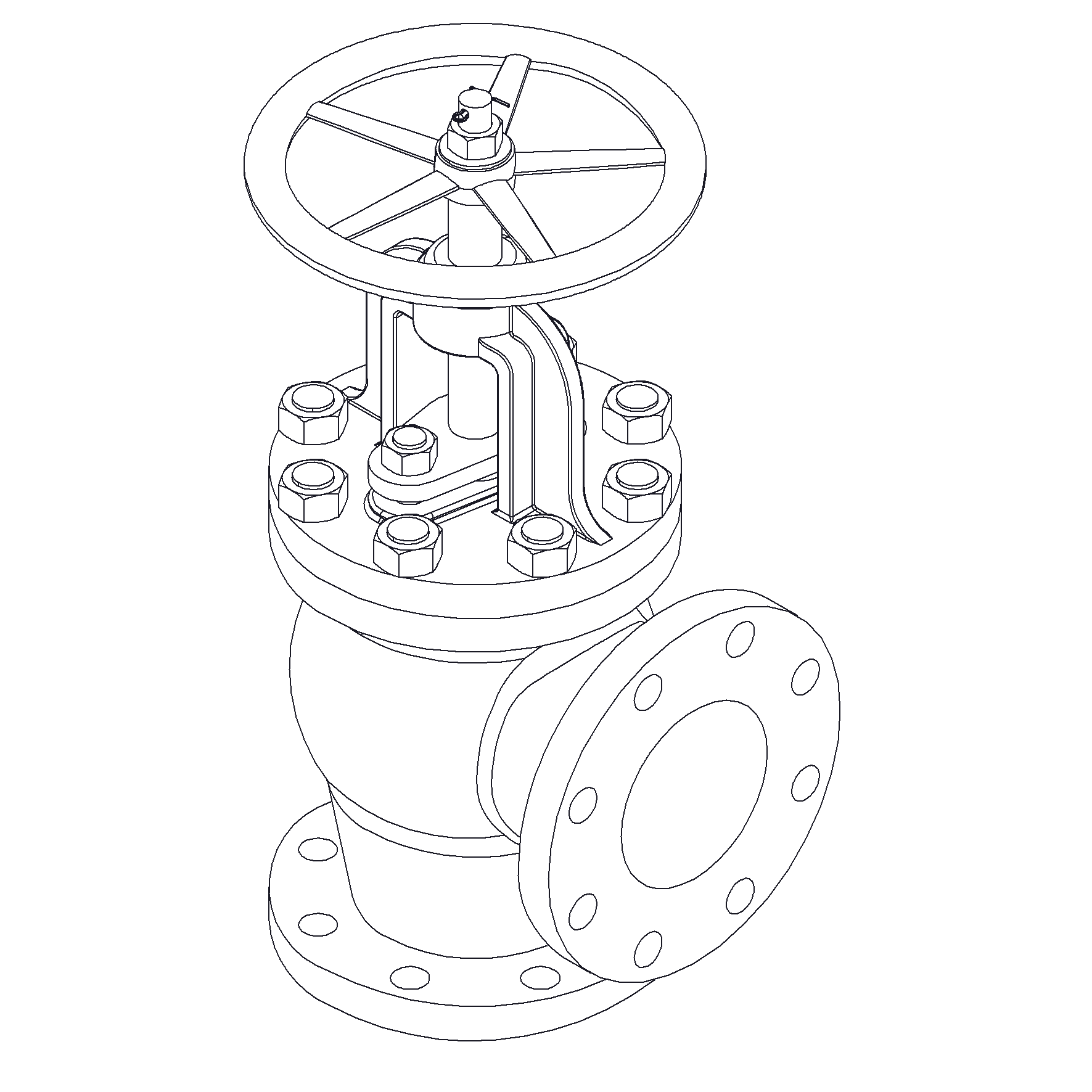

Globe Valve DN100 JIS 20K

Angled type - SDSL
Item No.
150-00001786
Details
Angled type, Cast Steel body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
More Information
Product Group F-7314
Remark Connection: JIS 20K
End Standard JIS B2220
Inspection Standard JIS F7400
Throughput Direction Angled
Variant SDSL
Material Disc Stainless Steel, 420
End Type Flanged
Design Code JIS F7314
Standard JIS
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Water
Size 100
Material Seat Stainless Steel, 420
Material Body Cast Steel
Sub Category GLOBE
Item Number 150-00001786
Category Valve
Pressure Rating JIS 20K

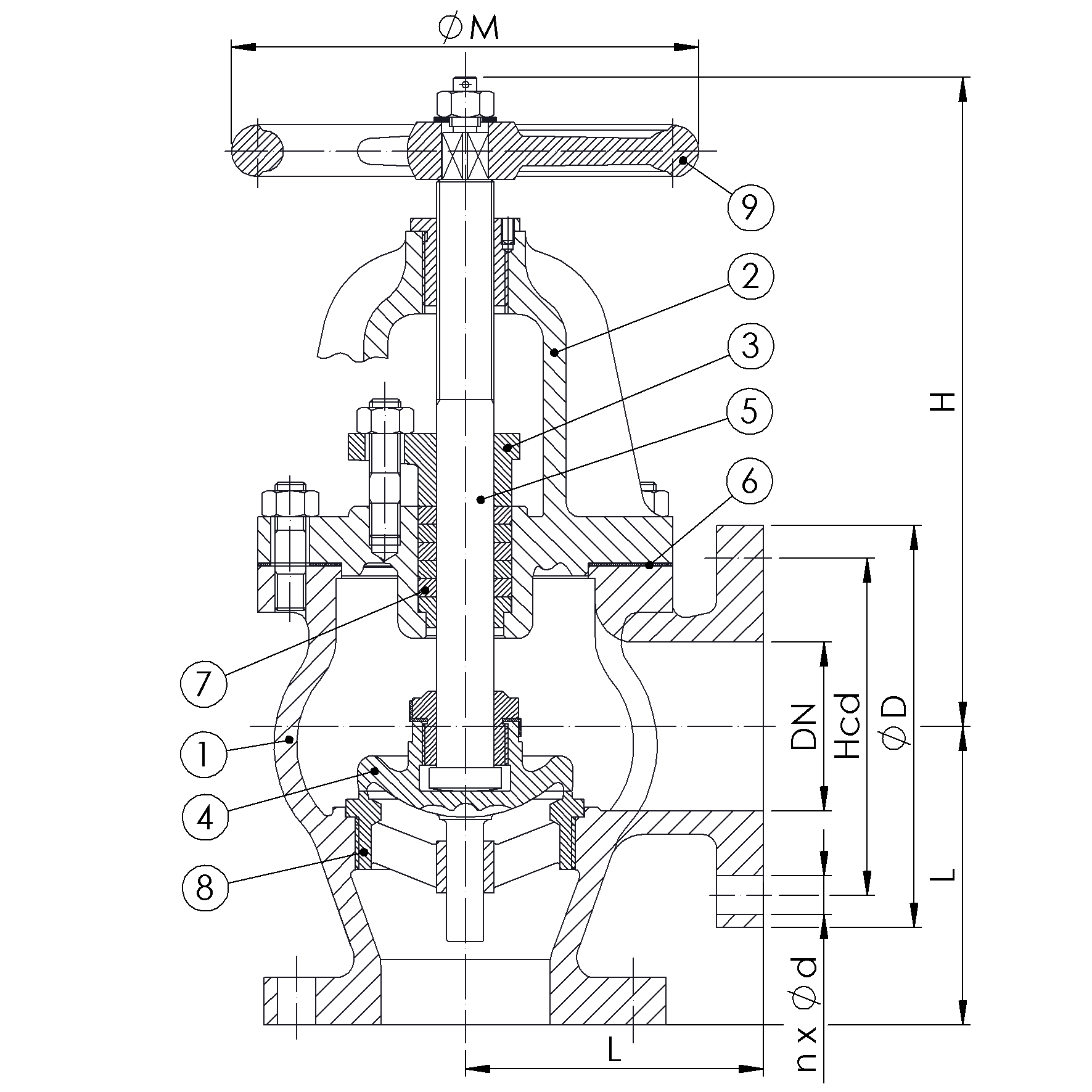

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ZG230-450
2 Bonnet Cast Steel ZG230-450
3 Gland Stainless Steel 2Cr13
4 Disc Stainless Steel 2Cr13
5 Stem Stainless Steel 2Cr13
6 Gasket Graphite
7 Packing Graphite
8 Sealing ring Stainless Steel 2Cr13
9 Handwheel Cast Iron HT200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
100 20 8x23 185 225 170 54.4 365 280
