Globe Valve DN100 JIS 20K

Straight type - SDSL
Item No.
150-00001776
Details

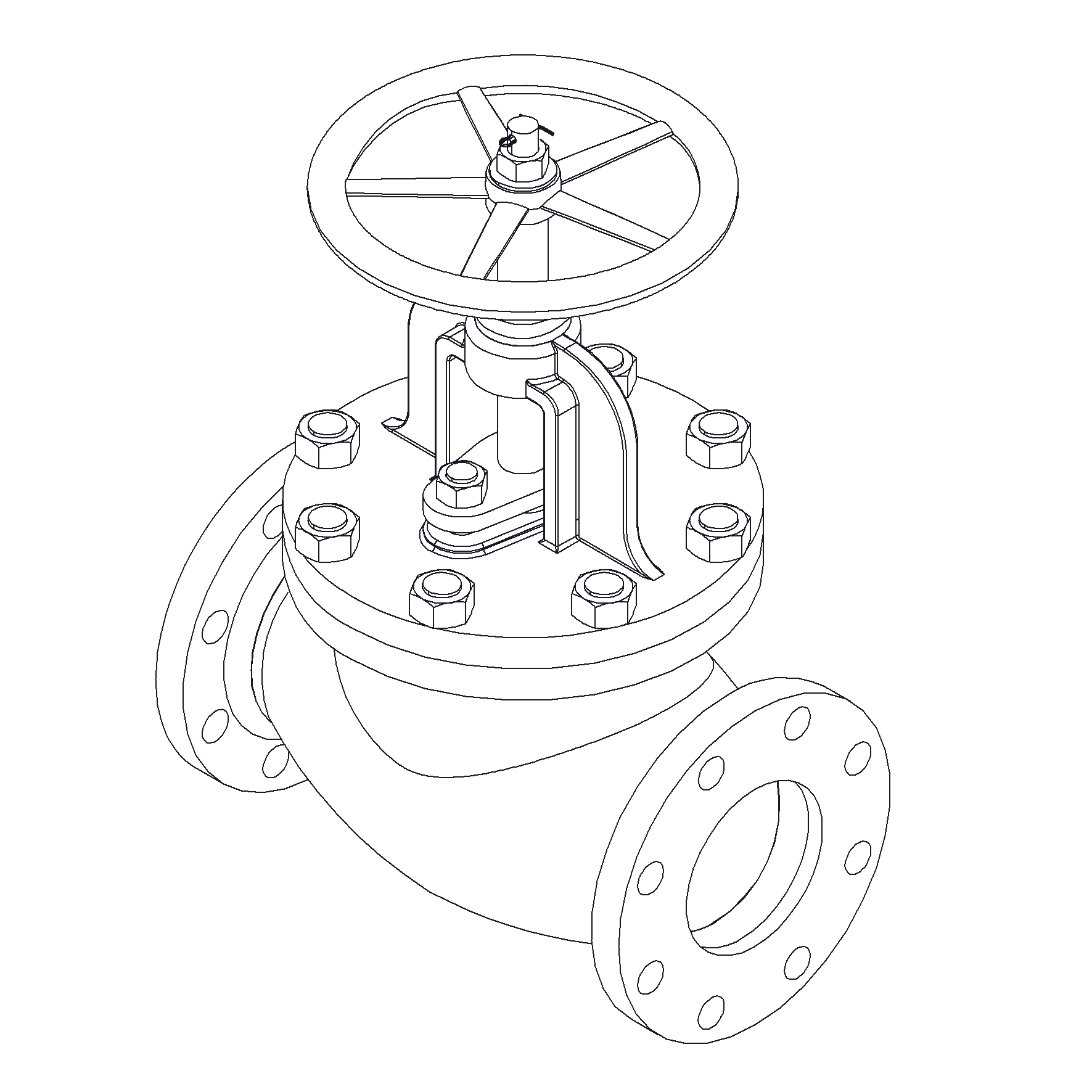

Straight type, Cast Steel body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group F-7313
Material Body Cast Steel
Remark Connection: JIS 20K
Throughput Direction Straight
End Standard JIS B2220
Design Code JIS F7313
Standard JIS
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Water
Size 100
Material Seat Stainless Steel, 420
Material Disc Stainless Steel, 420
Pressure Rating JIS 20K
End Type Flanged
Sub Category GLOBE
Item Number 150-00001776
Category Valve
Inspection Standard JIS F7400
Variant SDSL
Partslist and details

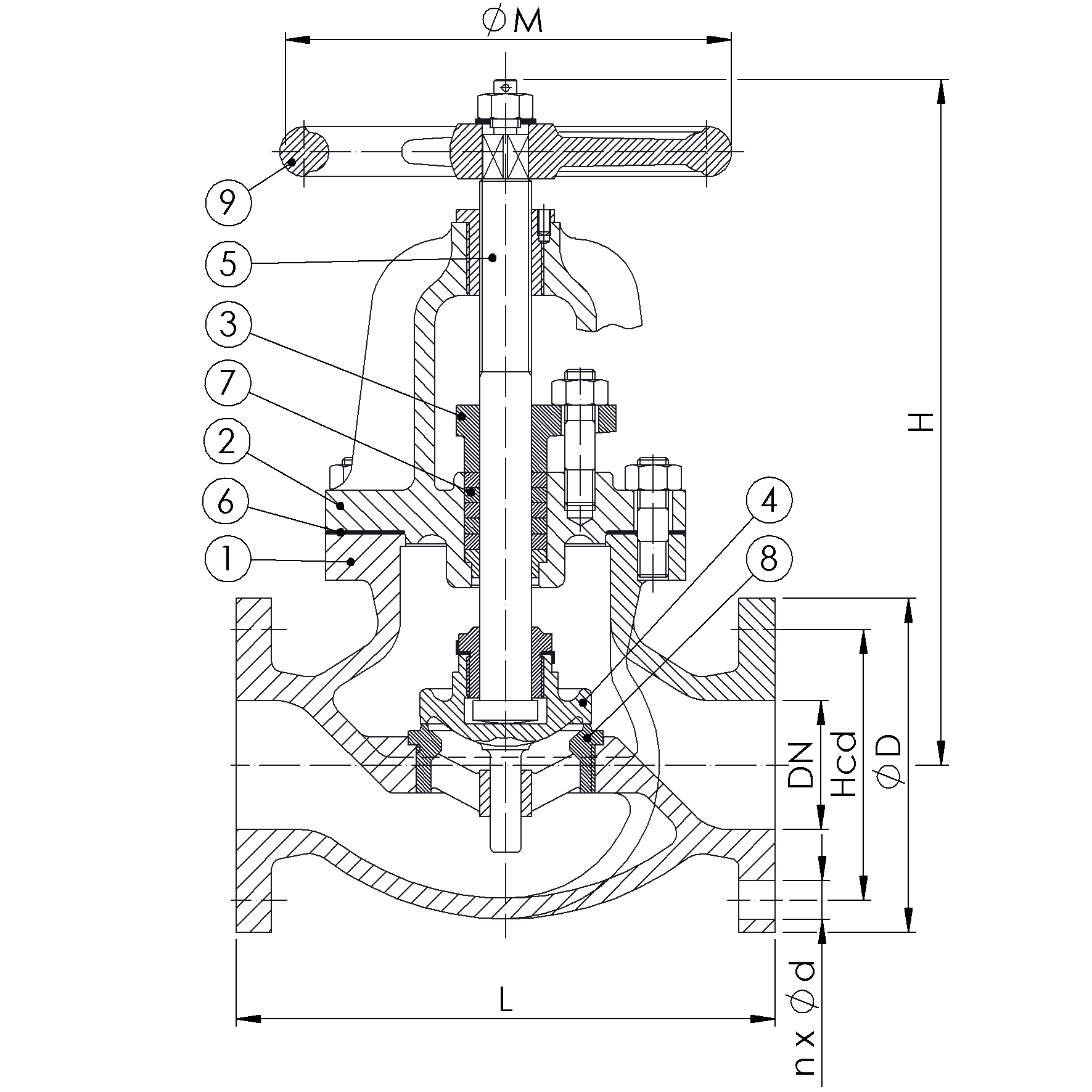

PARTSLIST
No Part Material Code
1 Body Cast Steel ZG230-450
2 Bonnet Cast Steel ZG230-450
3 Gland Stainless Steel 2Cr13
4 Disc Stainless Steel 2Cr13
5 Stem Stainless Steel 2Cr13
6 Gasket Graphite
7 Packing Graphite
8 Sealing ring Stainless Steel 2Cr13
9 Handwheel Cast Iron HT200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
100 20 8x23 185 225 350 62.3 440 280
