Globe Valve 2" 200WOG
Details
Straight type, Stainless Steel body, metal seated globe valve with rising stem. Screwed bonnet. BSPP female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 456092 |
Material Body | Stainless Steel, 316 |
Throughput Direction | Straight |
End Standard | EN 10226-1 |
Standard | DIN |
Application | Air, Cargo oil, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Sea water, Steam, Thermal oil, Water |
Size | 50 |
Material Disc | Stainless Steel, 316 |
Pressure Rating | 200WOG |
End Type | Threaded |
Sub Category | GLOBE |
Item Number | 150-00000180 |
Category | Valve |
Variant | SDSL |

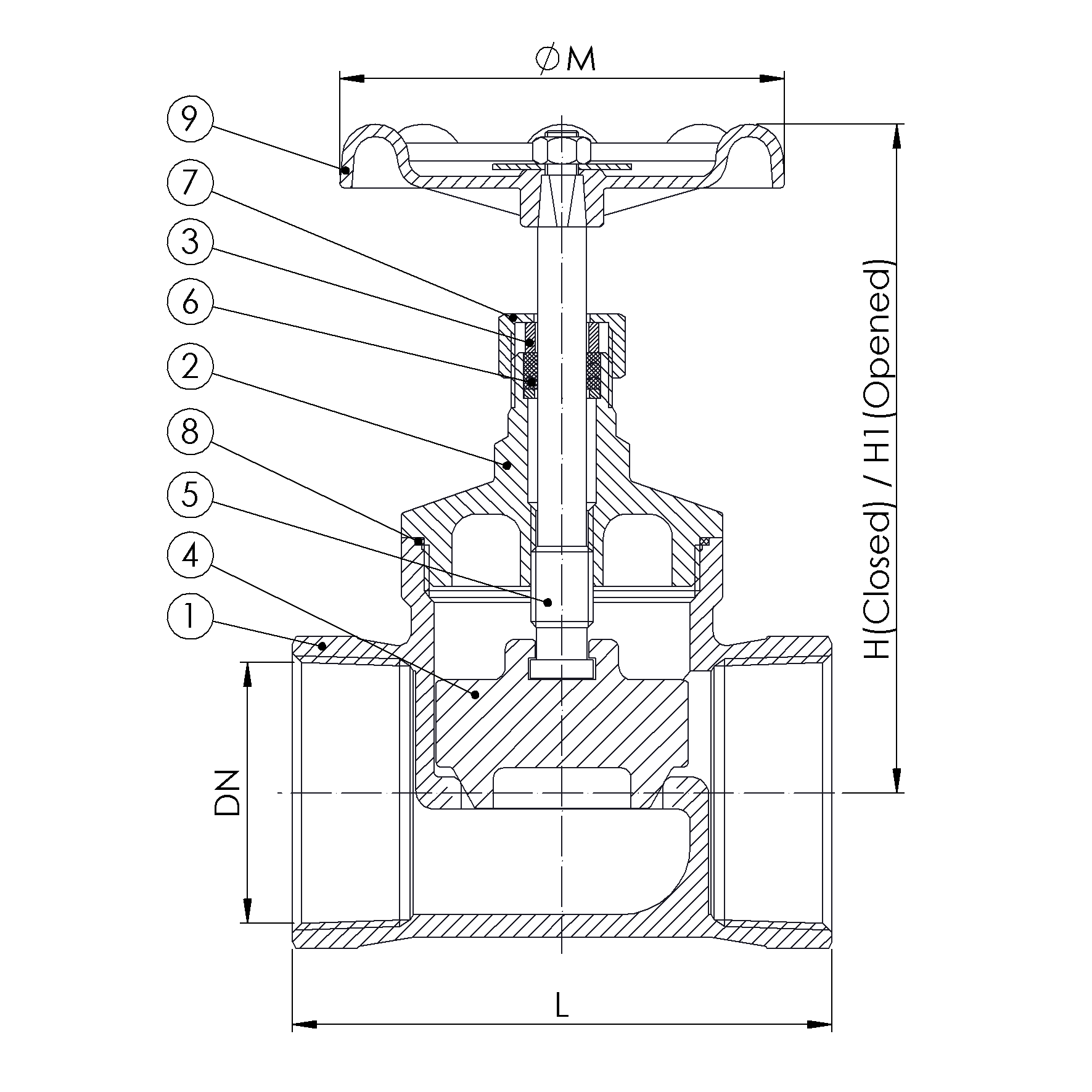

Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Stainless Steel | CF8M |
2 | Bonnet | Stainless Steel | CF8M |
3 | Gland | Stainless Steel | SUS 304 |
4 | Disc | Stainless Steel | CF8M |
5 | Stem | Stainless Steel | SUS 316 |
6 | Packing | PTFE | |
7 | Gland nut | Stainless Steel | CF8M |
8 | Gasket | PTFE | |
9 | Handwheel | Aluminium |
DETAILS
DN | Pressure Rating Id | L | Kg | Inch | H | H1 | Ø M |
---|---|---|---|---|---|---|---|
50 | 200 | 118 | 2.2 | 2" | 154 | 175 | 100 |
