Globe Valve 1 ½" PN16

Straight type - SDNR with spring
Item No.
M80306
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 456022
Material Body Bronze
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 40
Material Disc Bronze
Pressure Rating PN16
End Type Threaded
Sub Category GLOBE
Item Number M80306
Category Valve
Variant SDNR with spring
Max temperature +225°C (steam: 180°C)

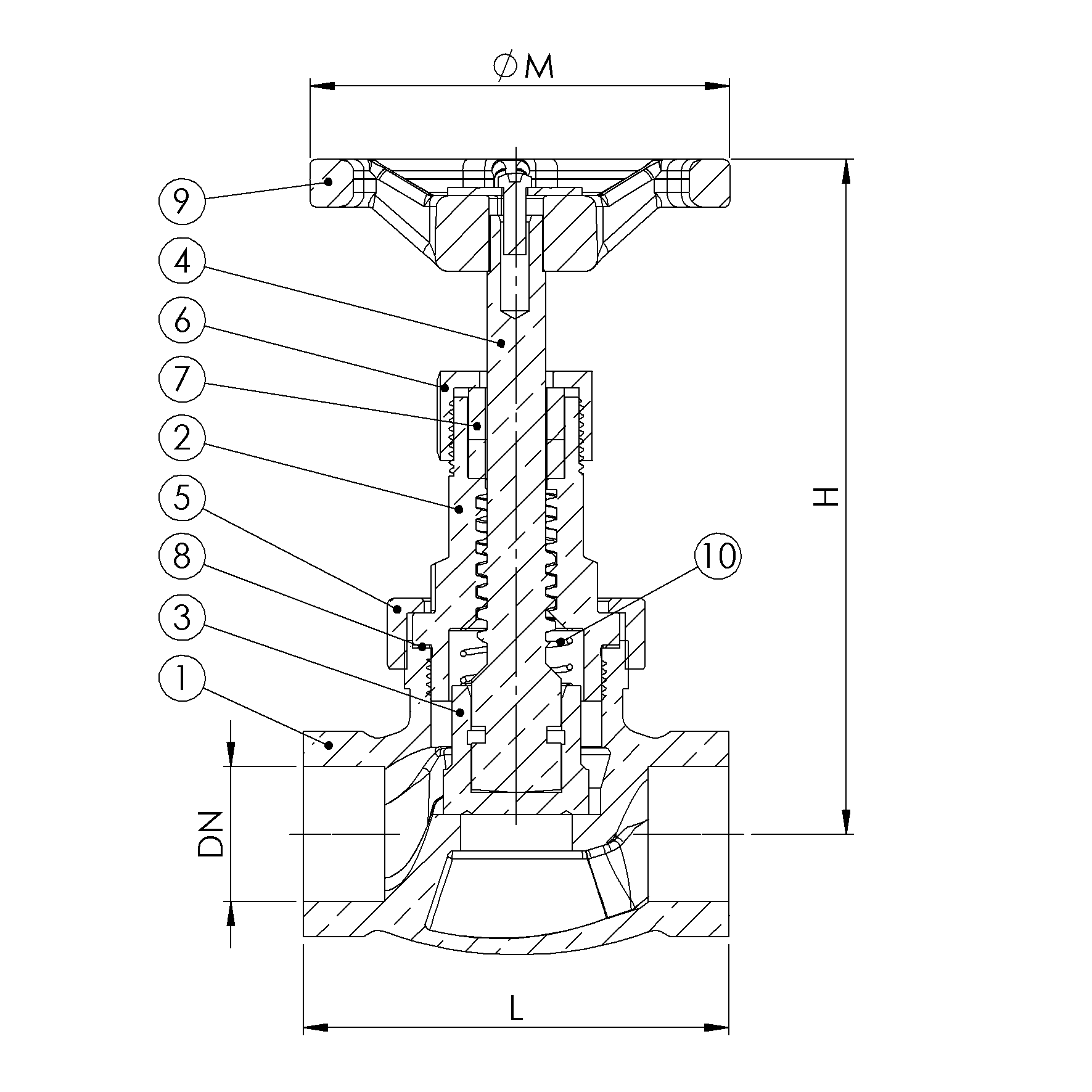

Partslist and details
PARTSLIST
No Part Material Code
9 Handwheel Cast Iron GG25
1 Body Bronze RG5
2 Bonnet Bronze RG5
3 Disc Bronze RG7
4 Stem Special Brass Som59
5 Bonnet nut Bronze RG5
6 Gland nut Brass Ms58
7 Gland Brass Ms58
8 Gasket PTFE -
10 Spring Stainless Steel 1.4571


DETAILS
DN Pressure Rating Id L Kg Inch H Ø M
40 16 120 2.3 1 1/2" 145 100
