Globe Valve 1 ¼" PN16
Details
Straight type, Bronze RG5 body, soft seated globe valve with self-draining outlet side. Bolted bonnet. Female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 314122 |
Material Body | Bronze |
Throughput Direction | Straight |
End Standard | ISO 228-1 |
Standard | DIN |
Application | Sea water, Water |
Size | 32 |
Material Seat | Leather |
Pressure Rating | PN16 |
End Type | Threaded |
Sub Category | GLOBE |
Item Number | M80251 |
Category | Valve |
Variant | SDSL with drain |
Max temperature | +30°C |

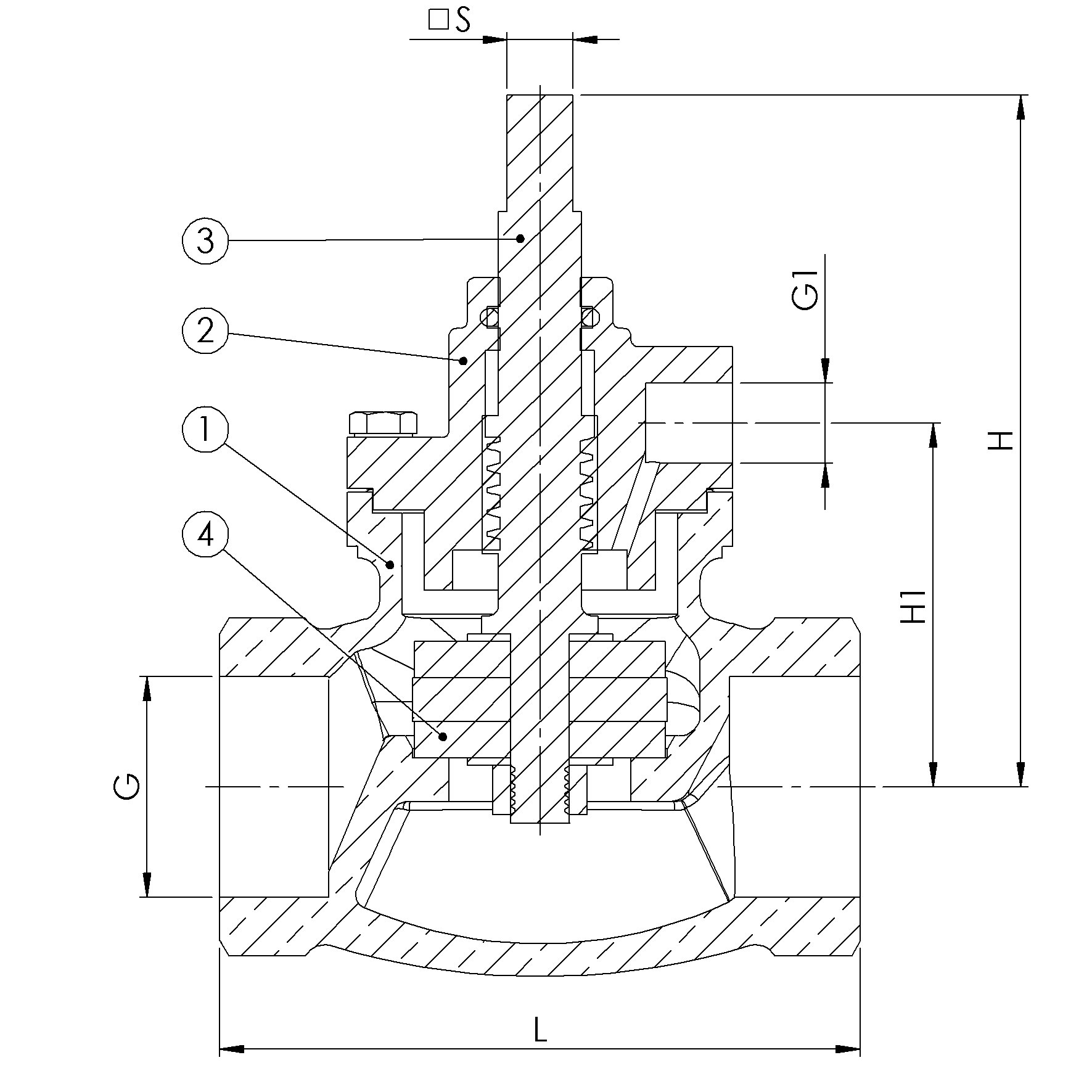

Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Bronze | CC 491K |
2 | Bonnet | Bronze | CC 491K |
3 | Stem | Brass | CW 710R |
4 | Gasket | Leather |
DETAILS
DN | Pressure Rating Id | L | Kg | H | H1 | G | S | G1 |
---|---|---|---|---|---|---|---|---|
32 | 16 | 105 | 1.7 | 150 | 57 | 1 1/4" | 10 | 1/4" |
