Globe Valve 1 ½" PN16

Angled type - SDNR
Item No.
150-00000203
Details

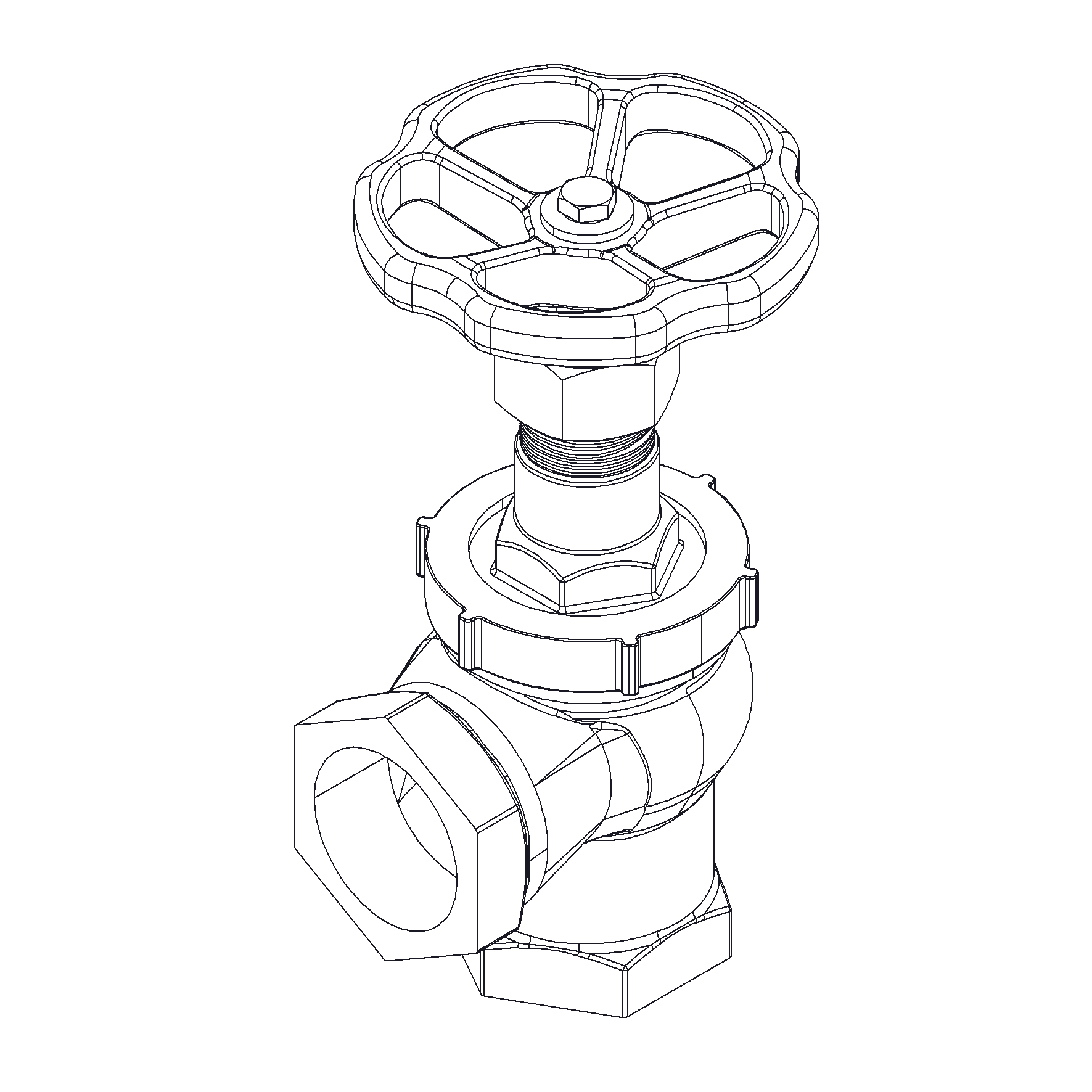

Angled type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 456122
Material Body Bronze
Min temperature -10°C
Throughput Direction Angled
End Standard EN 10226-1
Standard DIN
Application Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 40
Material Disc Bronze
Pressure Rating PN16
End Type Threaded
Sub Category GLOBE
Item Number 150-00000203
Category Valve
Variant SDNR
Max temperature +200°C
Partslist and details

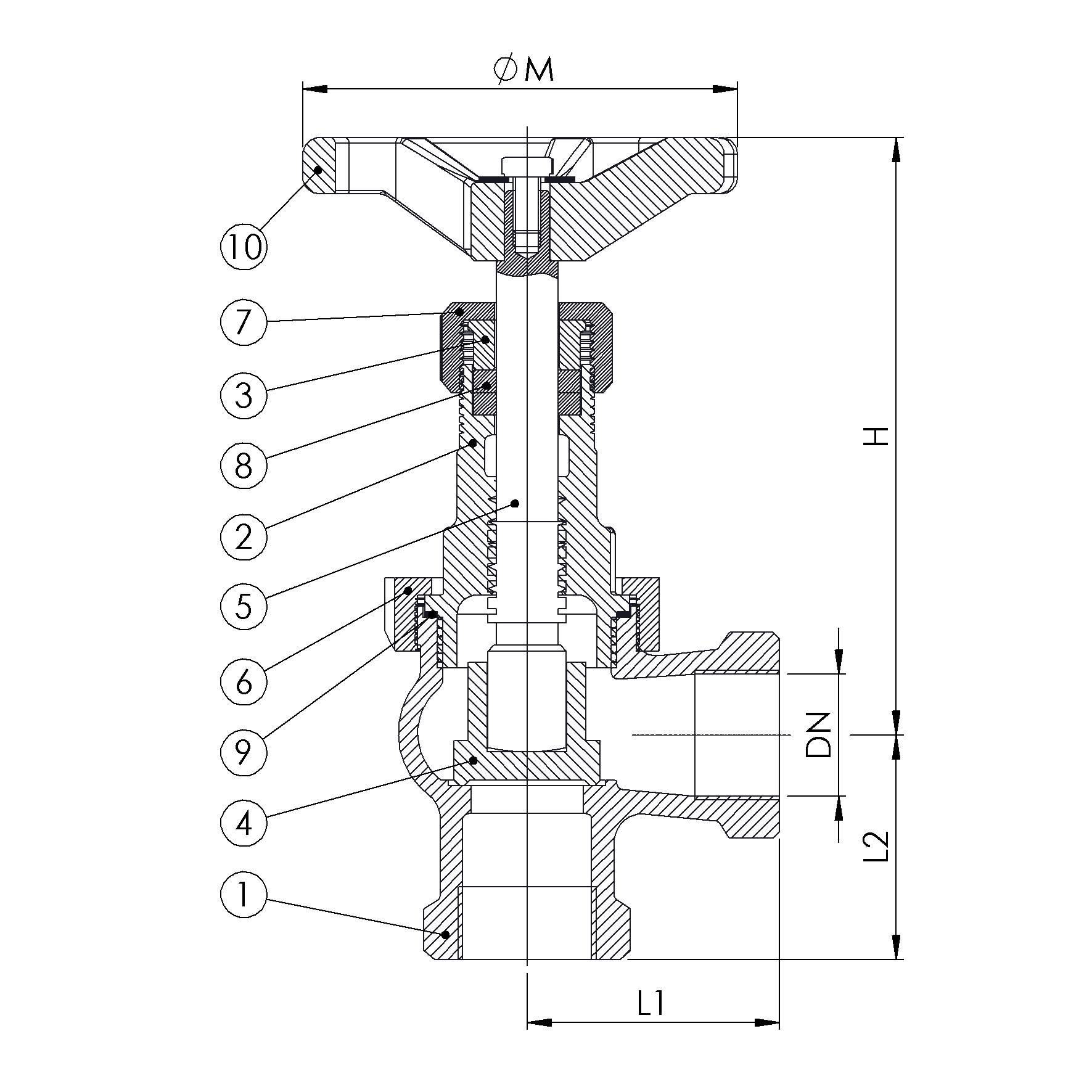

PARTSLIST
No Part Material Code
1 Body Bronze RG5
2 Bonnet Bronze RG5
3 Gland Brass Ms58
4 Disc Bronze RG5
5 Stem Special Brass Som59
6 Bonnet nut Bronze RG5
7 Gland nut Brass Ms58
8 Packing Graphite
9 Gasket PTFE
10 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id Kg L1 Inch H L2 Ø M
40 16 2.5 65 1 1/2" 135 55 100
