Gate Valve ¾" PN16
Details
RG5 body gate valve, brass wedge. Non rising stem, screwed bonnet. BSPP female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 400622 |
Material Body | Bronze |
Throughput Direction | Straight |
End Standard | ISO 228-1 |
Standard | DIN |
Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
Size | 20 |
Material Disc | Brass |
Pressure Rating | PN16 |
End Type | Threaded |
Sub Category | GATE |
Item Number | 130-00000080 |
Category | Valve |
Inspection Standard | EN 12266 |

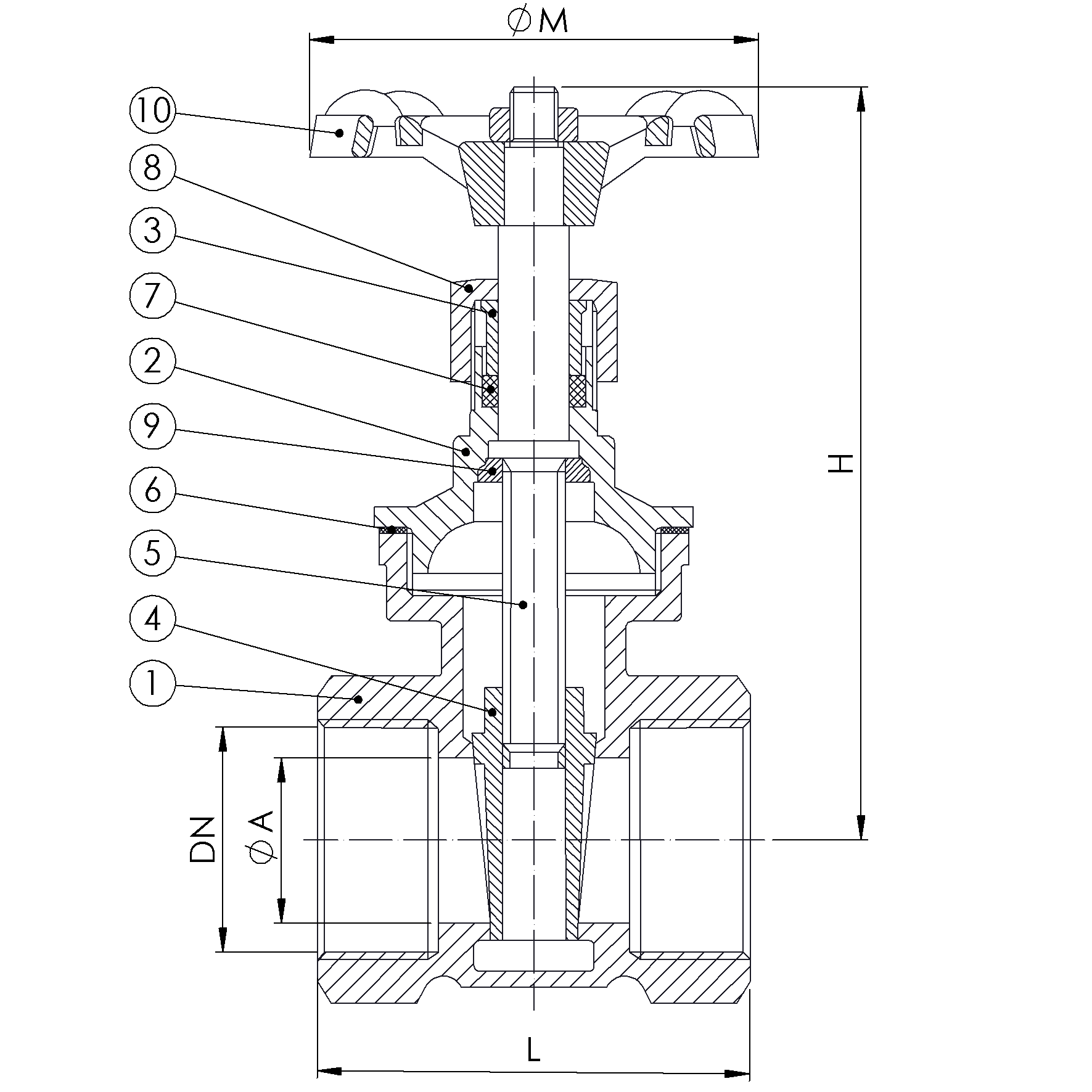

Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Bronze | CC 491K |
2 | Bonnet | Brass | CW 614N |
3 | Gland | Brass | CW 614N |
4 | Wedge | Brass | CW 614N |
5 | Stem | Brass | CW 614N |
6 | Bonnet Gasket | Heat Resistant Fiber | |
7 | Packing | Heat Resistant Fiber | AF/15MA |
8 | Gland nut | Brass | CW 614N |
9 | Stem nut | Brass | CW 614N |
10 | Handwheel | Steel |
DETAILS
DN | Pressure Rating Id | L | Kg | Inch | H | Ø A | Ø M |
---|---|---|---|---|---|---|---|
20 | 16 | 44 | 0.3 | 3/4" | 79 | 19 | 55 |
