Gate Valve DN65 PN16
Details

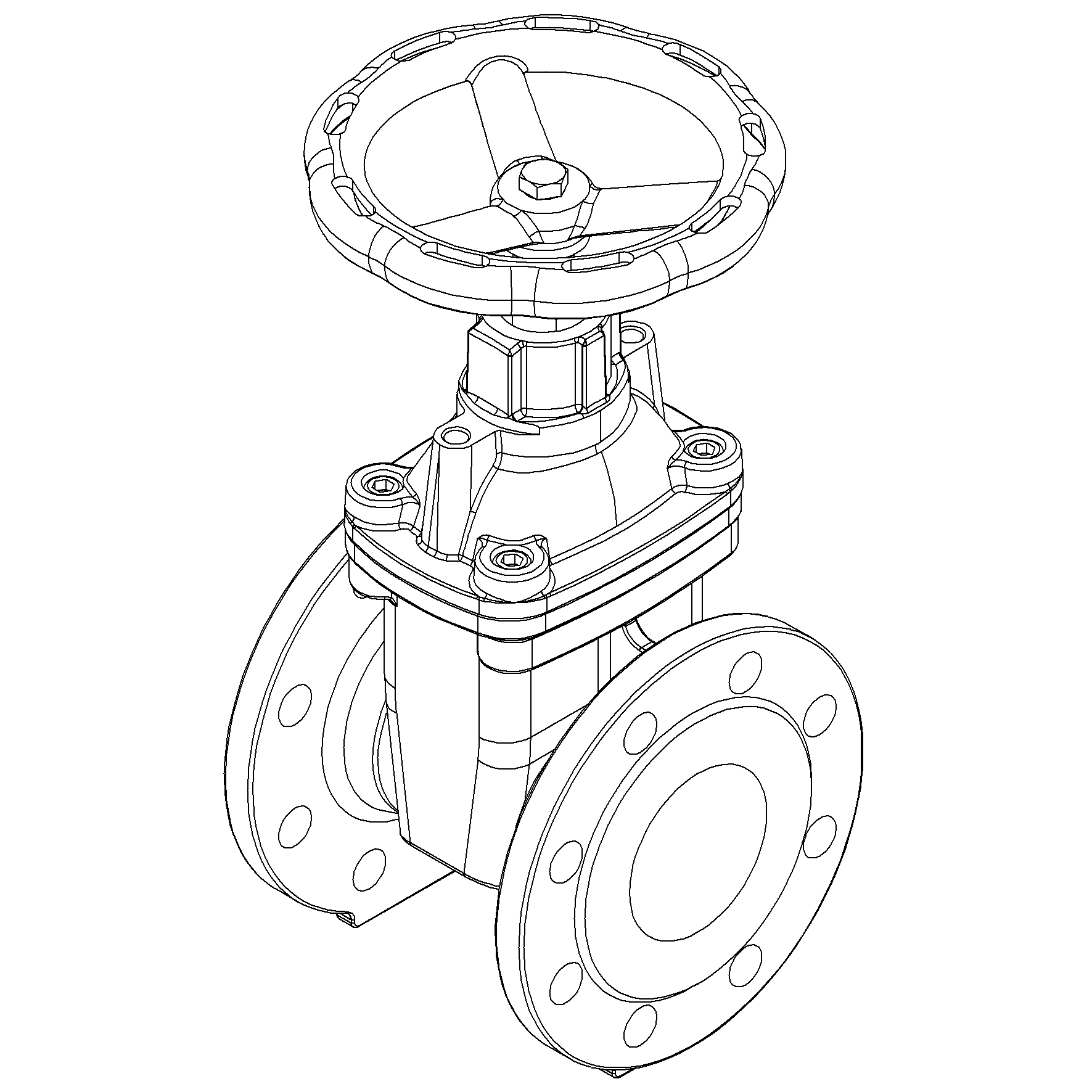

Nodular Cast Iron body gate valve, EPDM coated wedge. Non rising stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 620302 |
| Material Body | Nodular Cast Iron, GGG50 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 65 |
| Material Disc | EPDM |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000432 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Max temperature | +70°C |
Partslist and details

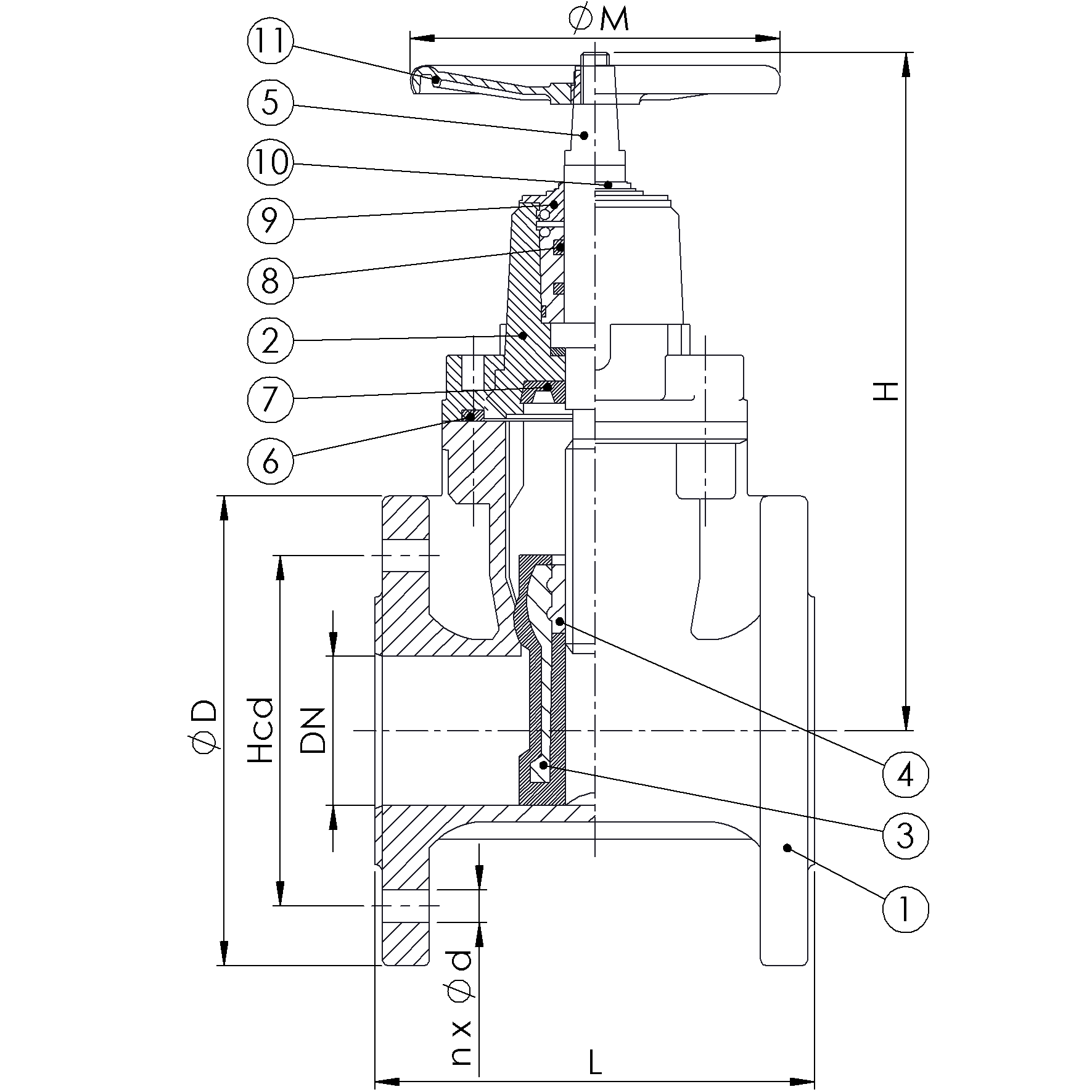

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG50 |
| 2 | Bonnet | Nodular Cast Iron | GGG50 |
| 3 | Wedge | EPDM coated | |
| 4 | Wedge nut | Brass | CW 602N |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Bonnet seal | EPDM | |
| 7 | Seal ring | EPDM | |
| 8 | O-ring | EPDM | |
| 9 | Thrust bearing | Brass | CW 602N |
| 10 | Seal | EPDM | |
| 11 | Handwheel | Nodular Cast Iron | GGG50 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 65 | 16 | 4x19 | 145 | 185 | 170 | 15.4 | 250 | 160 |
