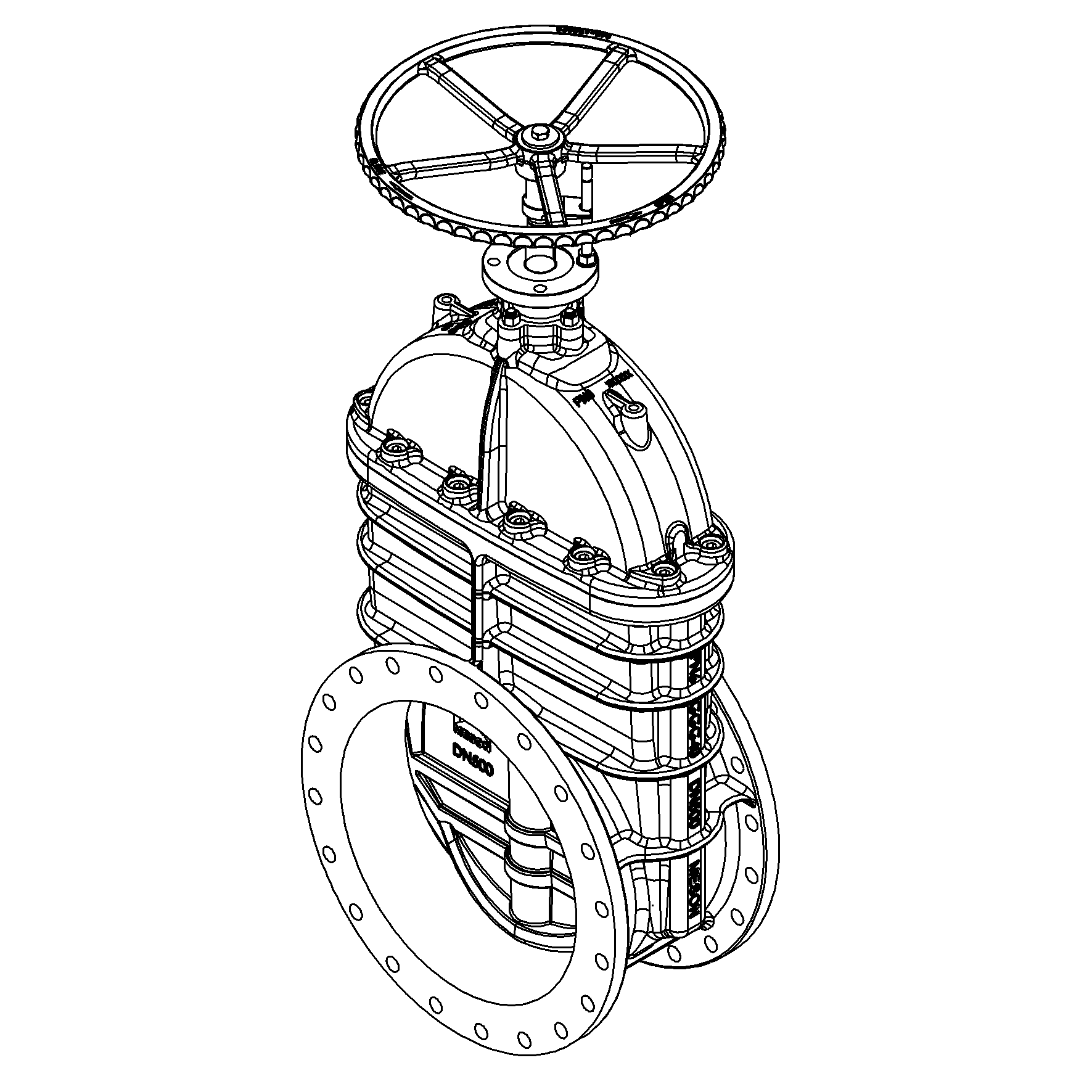

Gate Valve DN500 PN6/PN10
Details
Nodular Cast Iron body gate valve, NBR coated wedge. Non rising stem with open/close indicator and bolted bonnet. Standardized top flange for actuator mounting. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 620700 |
| Material Body | Nodular Cast Iron, GGG40 |
| Min temperature | -15°C |
| Remark | Connection: PN10 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 500 |
| Material Disc | NBR |
| Pressure Rating | PN6 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | M50000 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Top Flange Standard | ISO 5210 |
| Max temperature | +80°C |
Partslist and details
PARTSLIST

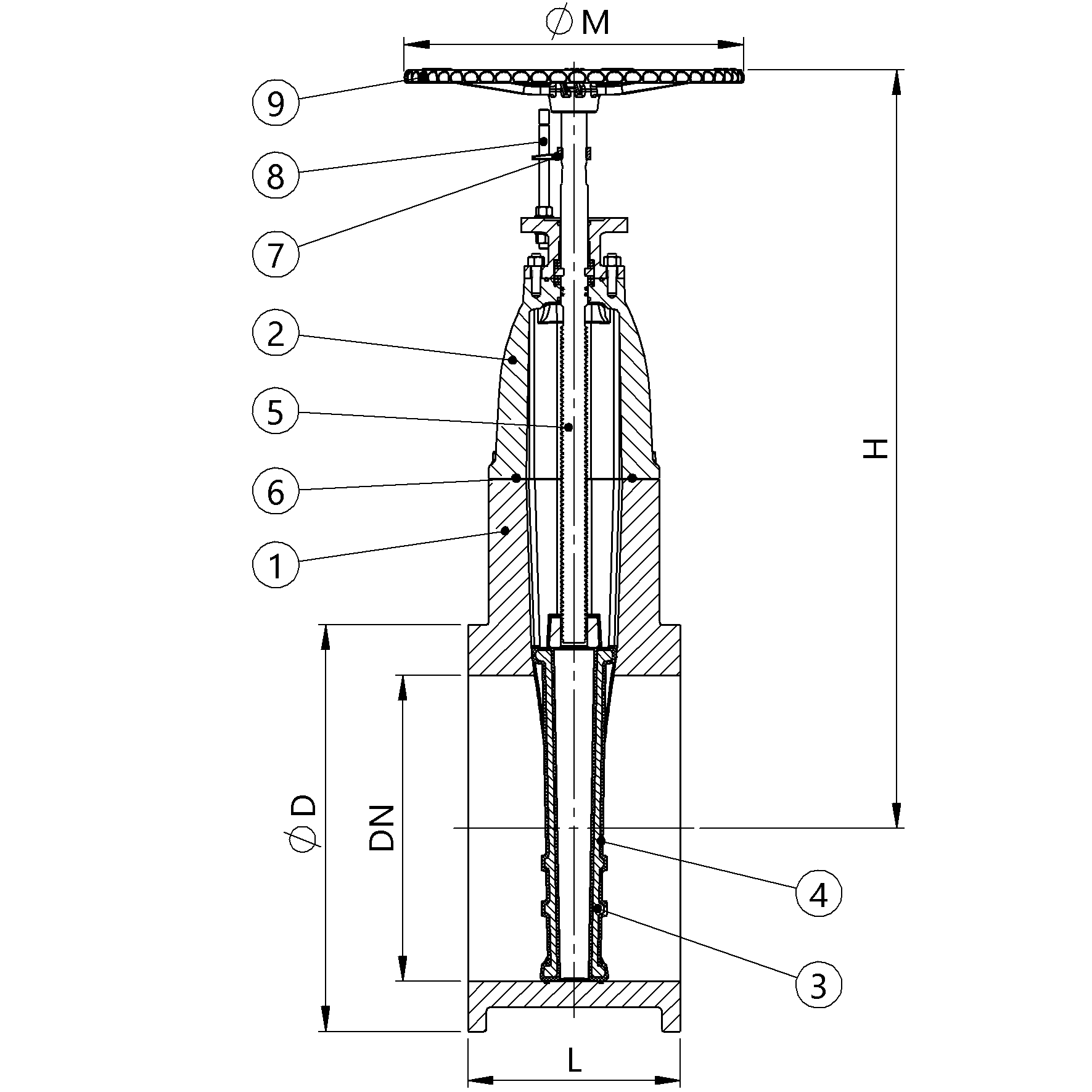

| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Bonnet | Nodular Cast Iron | GGG40 |
| 3 | Wedge core | Nodular Cast Iron | GGG40 |
| 4 | Wedge coating | NBR | |
| 5 | Stem | Stainless Steel | 1.4432 |
| 6 | Gasket | NBR | |
| 7 | Indicator | Bronze | CC 491K |
| 8 | Indicator pin | Stainless Steel | 1.4301 |
| 9 | Handwheel | Nodular Cast Iron | GGG40 |
| 10 | Wedge shoe | PA 6.6 |
DETAILS

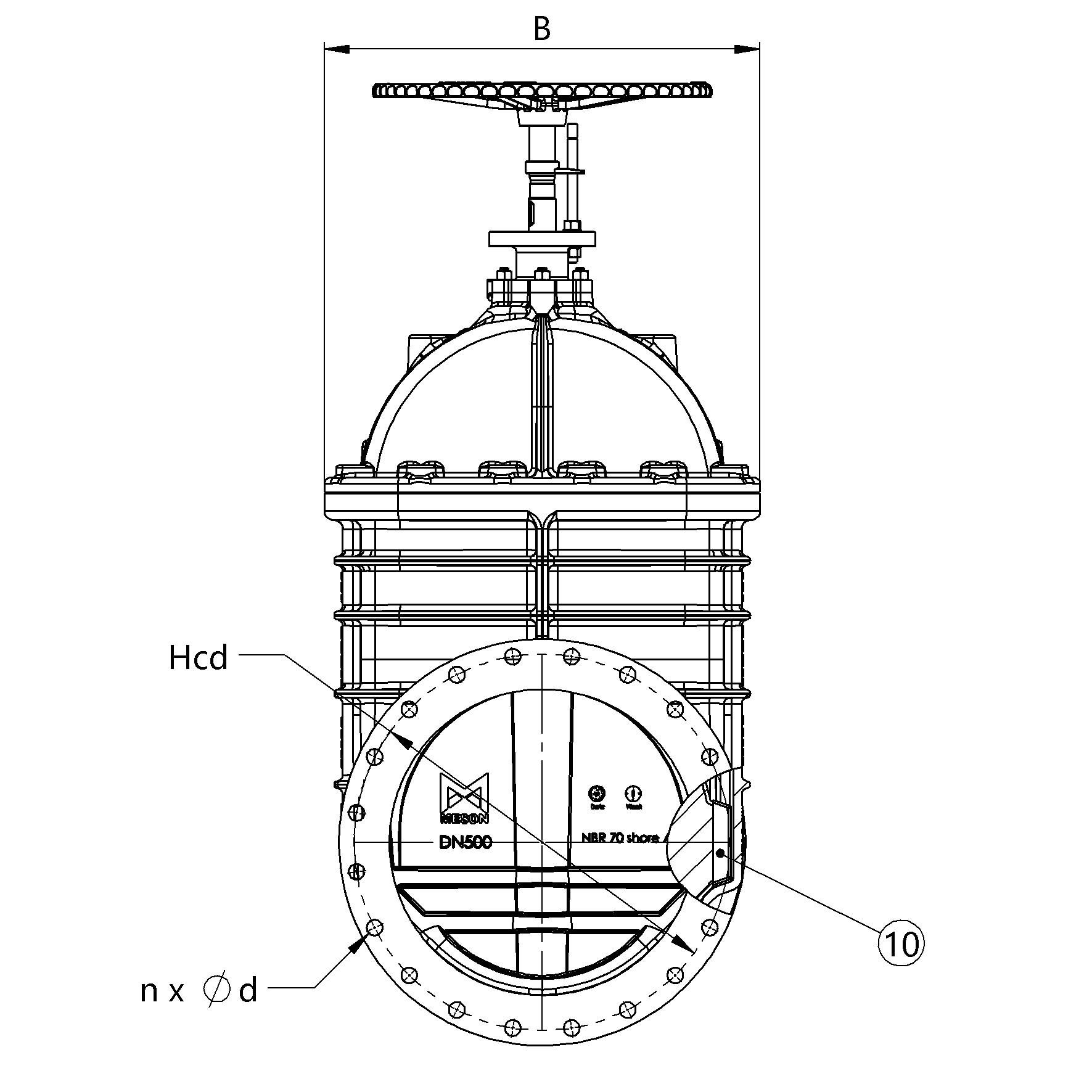

| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | B | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 500 | 6 | 20x26 | 620 | 670 | 350 | 360 | 1250 | 720 | 560 |
