Gate Valve DN500 PN6/PN10

With indicator
Item No.
130-00000199
Details

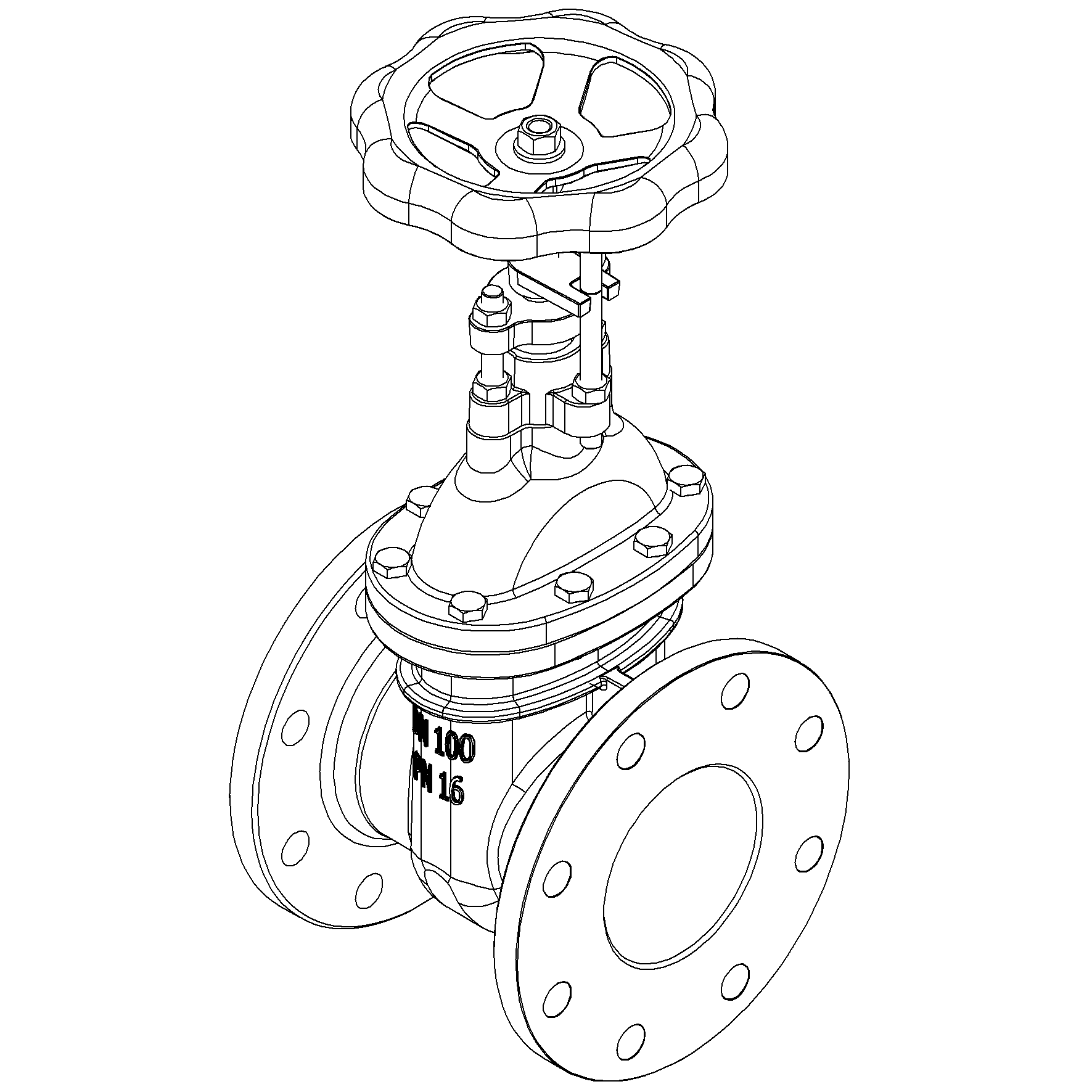

Nodular Cast Iron body gate valve, Nodular Cast Iron wedge, Bronze RG5 seat. Non rising stem with open/close indicator and bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 620101
Material Disc Nodular Cast Iron, GGG40.3
Category Valve
Item Number 130-00000199
Sub Category GATE
End Type Flanged
Pressure Rating PN6
Material Body Nodular Cast Iron, GGG40.3
Material Seat Bronze
Size 500
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water
Standard DIN
Design Code EN 1171
End Standard EN 1092-2
Face To Face Standard EN 558, series 14
Throughput Direction Straight
Remark Connection: PN10
Min temperature -10°C
Max temperature +120°C
Partslist and details

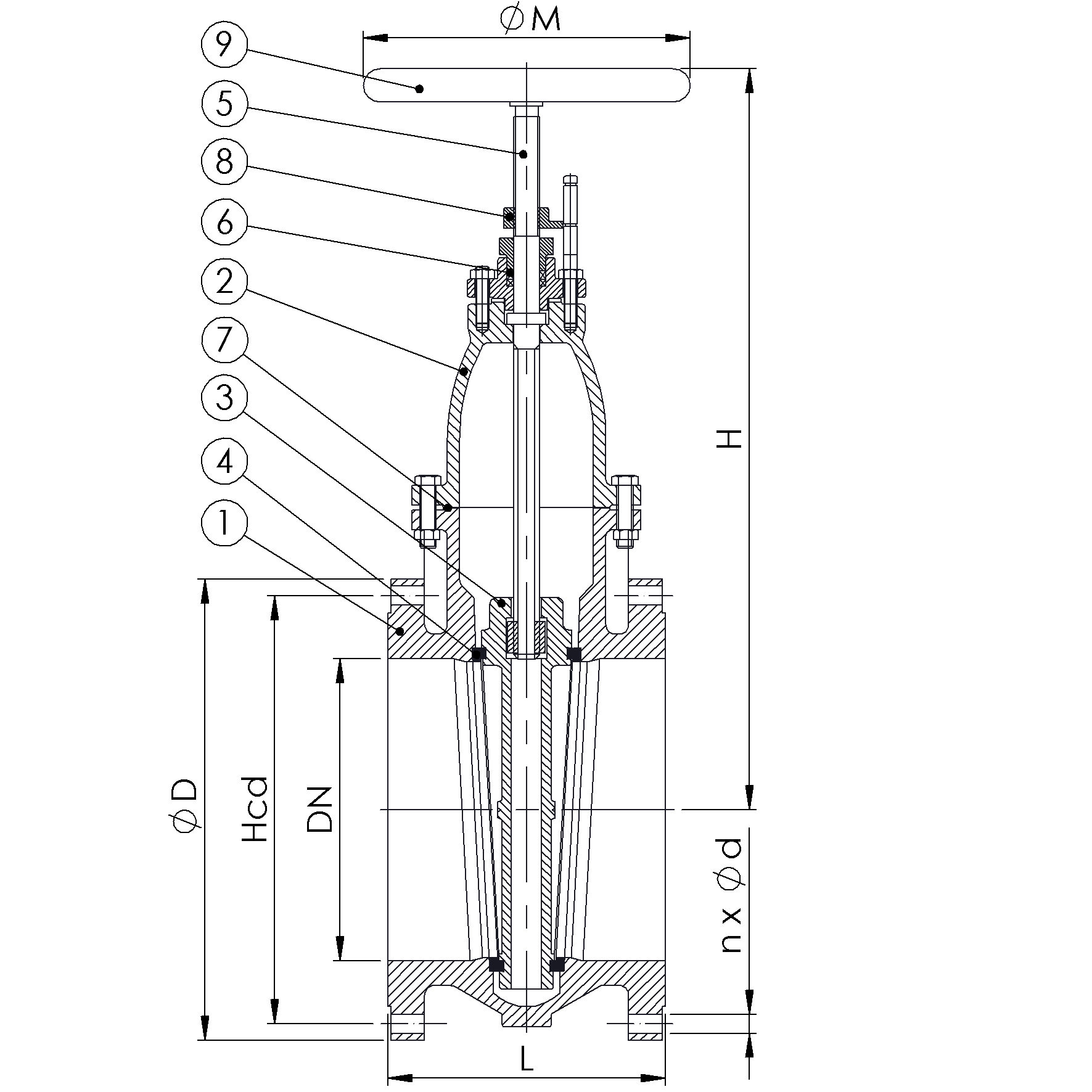

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Wedge Nodular Cast Iron GGG40.3
4 Seat Bronze CC 491K
5 Stem Brass CW 614N
6 Gland packing PTFE
7 Bonnet gasket Asbestos Free
8 Indicator Bronze CC 491K
9 Handwheel Cast Iron GG25
DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
500 6 20x26 620 670 350 480 1275 500
