Gate Valve DN50 PN63

Long type
Item No.
130-00000517
Details

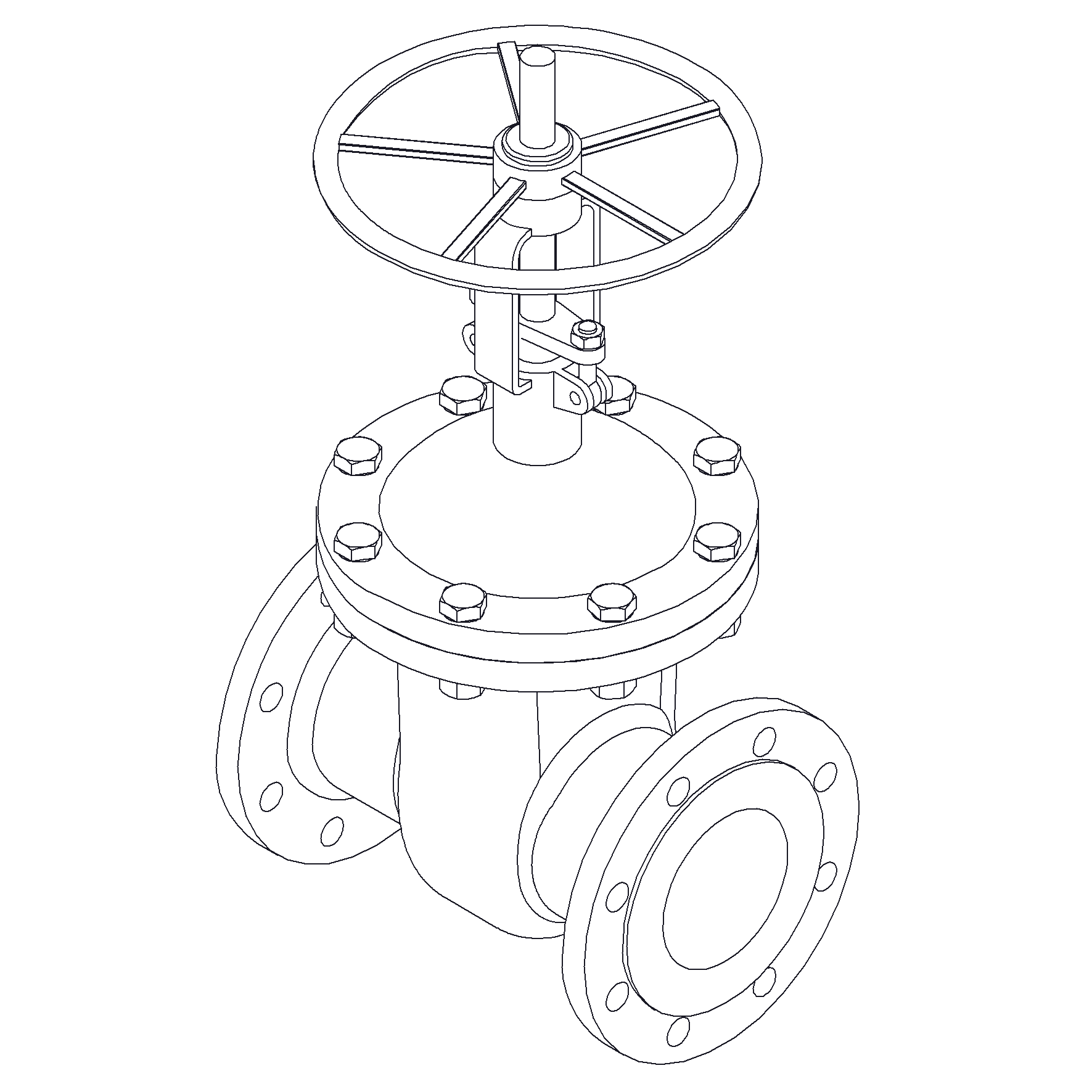

Cast Steel body gate valve, Cast Steel wedge, Stellite seat. Rising stem and bolted bonnet. Raised face flanges. Long type.
More Information
More Information
Price View Price Range
Product Group 620765
Material Body Cast Steel
Remark Connection: PN63
Throughput Direction Straight
Face To Face Standard EN 558, series 15
End Standard EN 1092-1
Design Code EN 1984
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 50
Material Seat Stellite
Material Disc Cast Steel
Pressure Rating PN63
End Type Flanged
Sub Category GATE
Item Number 130-00000517
Category Valve
Inspection Standard EN 12266

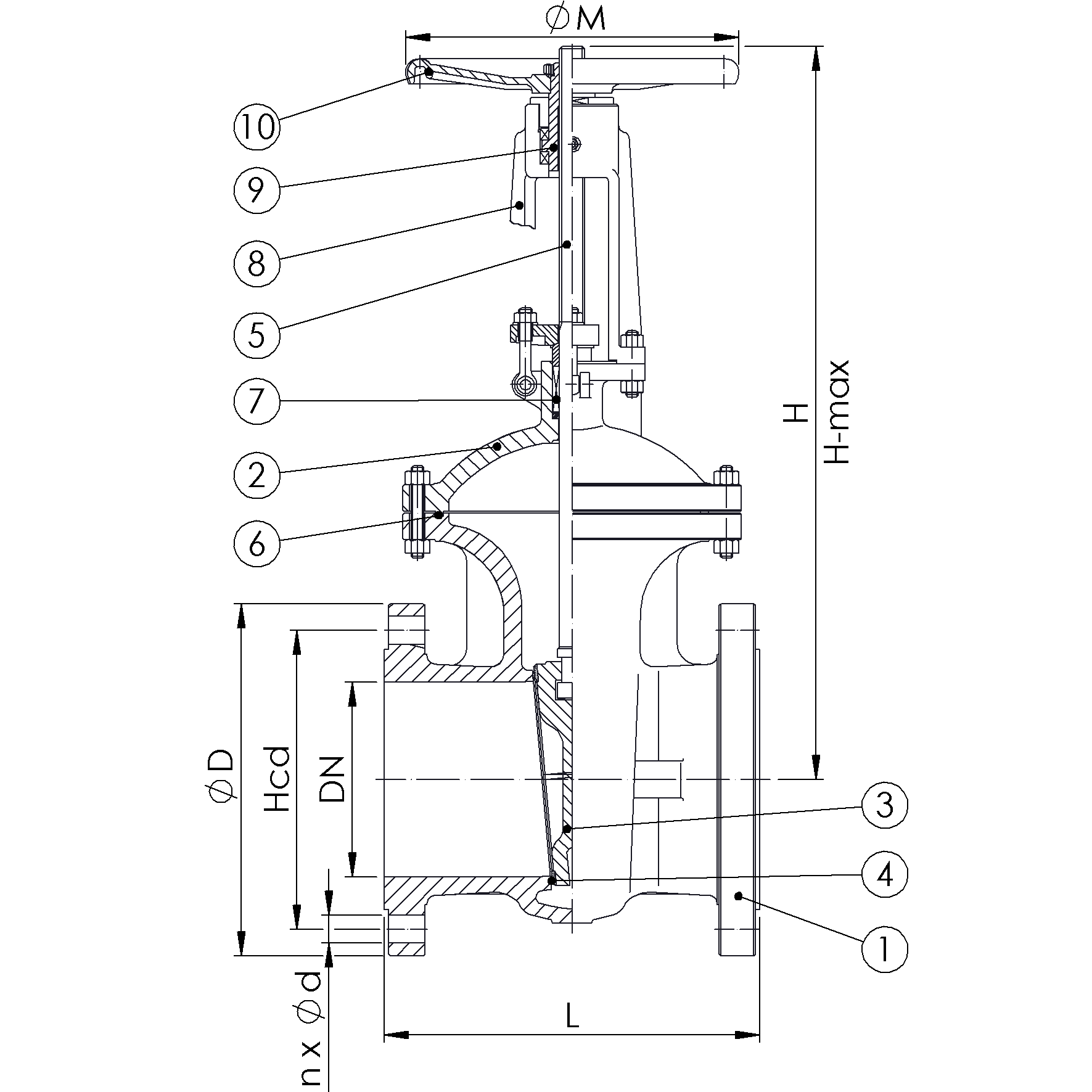

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Wedge Cast Steel ASTM A216-WCB
4 Seat Deposited Stellite
5 Stem Stainless Steel ASTM A182-F6a
6 Bonnet Gasket Graphite
7 Packing Graphite
8 Yoke Cast Steel ASTM A216-WCB
9 Stem nut Aluminium Bronze
10 Handwheel Cast Iron


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Hmax Kg H Ø M
50 63 4x22 135 180 250 448 34 372 280
