Gate Valve DN50 PN16

Soft Seated
Item No.
130-00000430
Details
Nodular Cast Iron body gate valve, EPDM coated wedge. Non rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 620302
Material Disc EPDM
Category Valve
Item Number 130-00000430
Sub Category GATE
End Type Flanged
Pressure Rating PN16
Material Body Nodular Cast Iron, GGG50
Size 50
Application Boiler feedwater, Condensate, Sea water, Water
Standard DIN
End Standard EN 1092-2
Face To Face Standard EN 558, series 14
Inspection Standard EN 12266
Throughput Direction Straight
Remark Connection: PN16
Max temperature +70°C

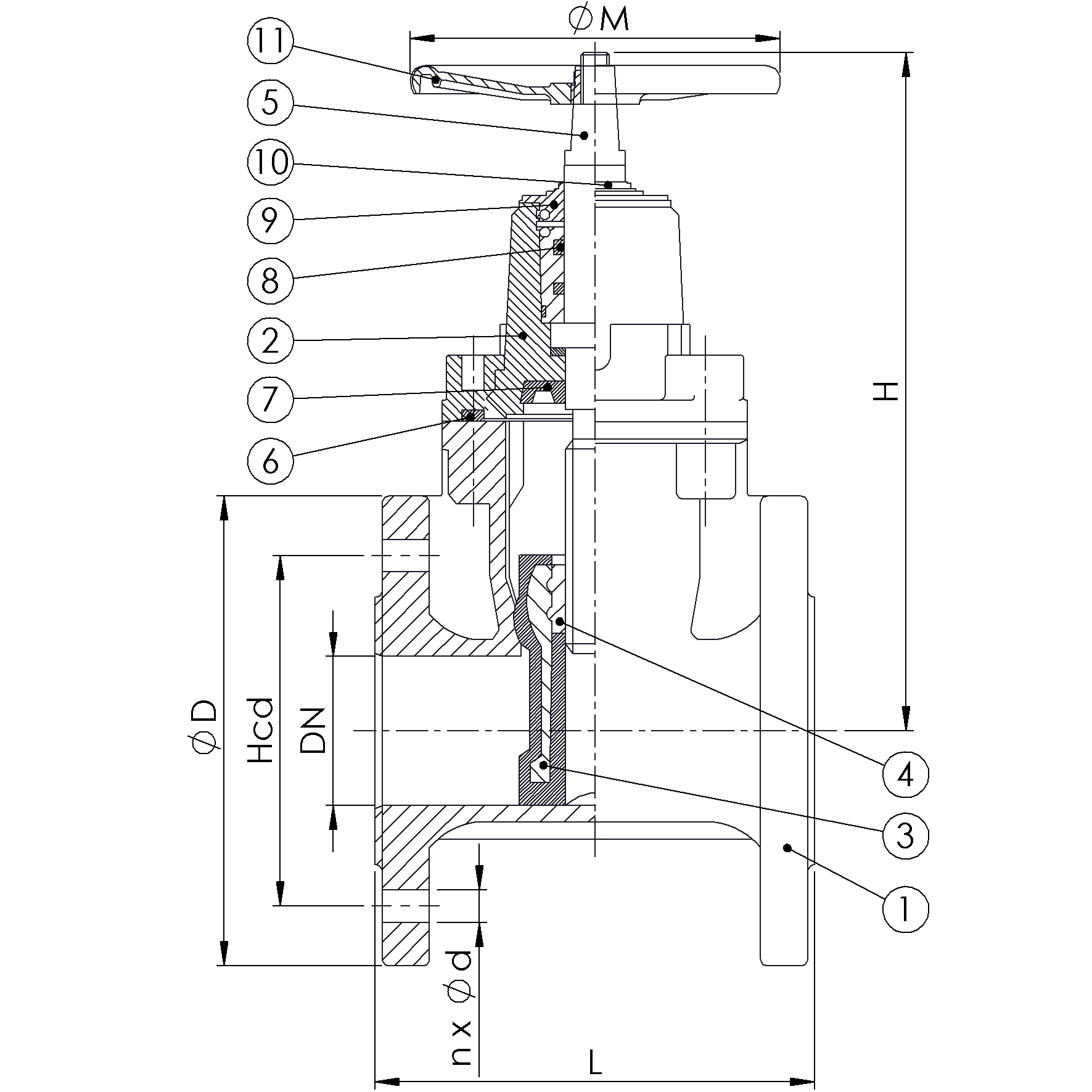

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG50
2 Bonnet Nodular Cast Iron GGG50
3 Wedge EPDM coated
4 Wedge nut Brass CW 602N
5 Stem Stainless Steel 1.4021
6 Bonnet seal EPDM
7 Seal ring EPDM
8 O-ring EPDM
9 Thrust bearing Brass CW 602N
10 Seal EPDM
11 Handwheel Nodular Cast Iron GGG50


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x19 125 165 150 10.7 240 160
