Gate Valve DN50 PN16

Item No.
130-00000116
Details

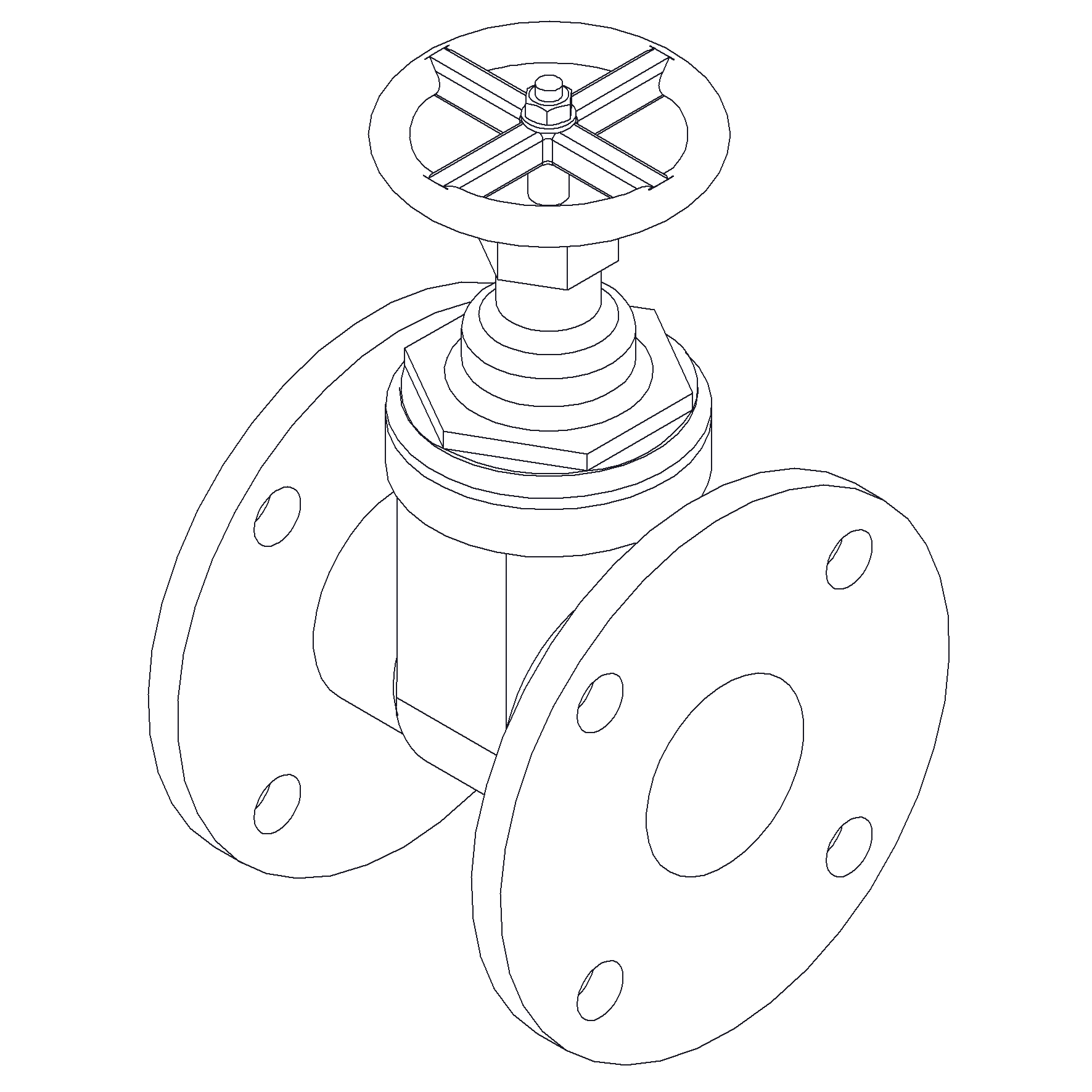

RG5 body gate valve, RG5 wedge. Non rising stem, screwed bonnet. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group 400822
Material Body Bronze
Min temperature 0°C
Remark Connection: PN16
Throughput Direction Straight
End Standard EN 1092-3
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 50
Material Disc Bronze
Pressure Rating PN16
End Type Flanged
Sub Category GATE
Item Number 130-00000116
Category Valve
Inspection Standard EN 12266
Max temperature +95°C
Partslist and details

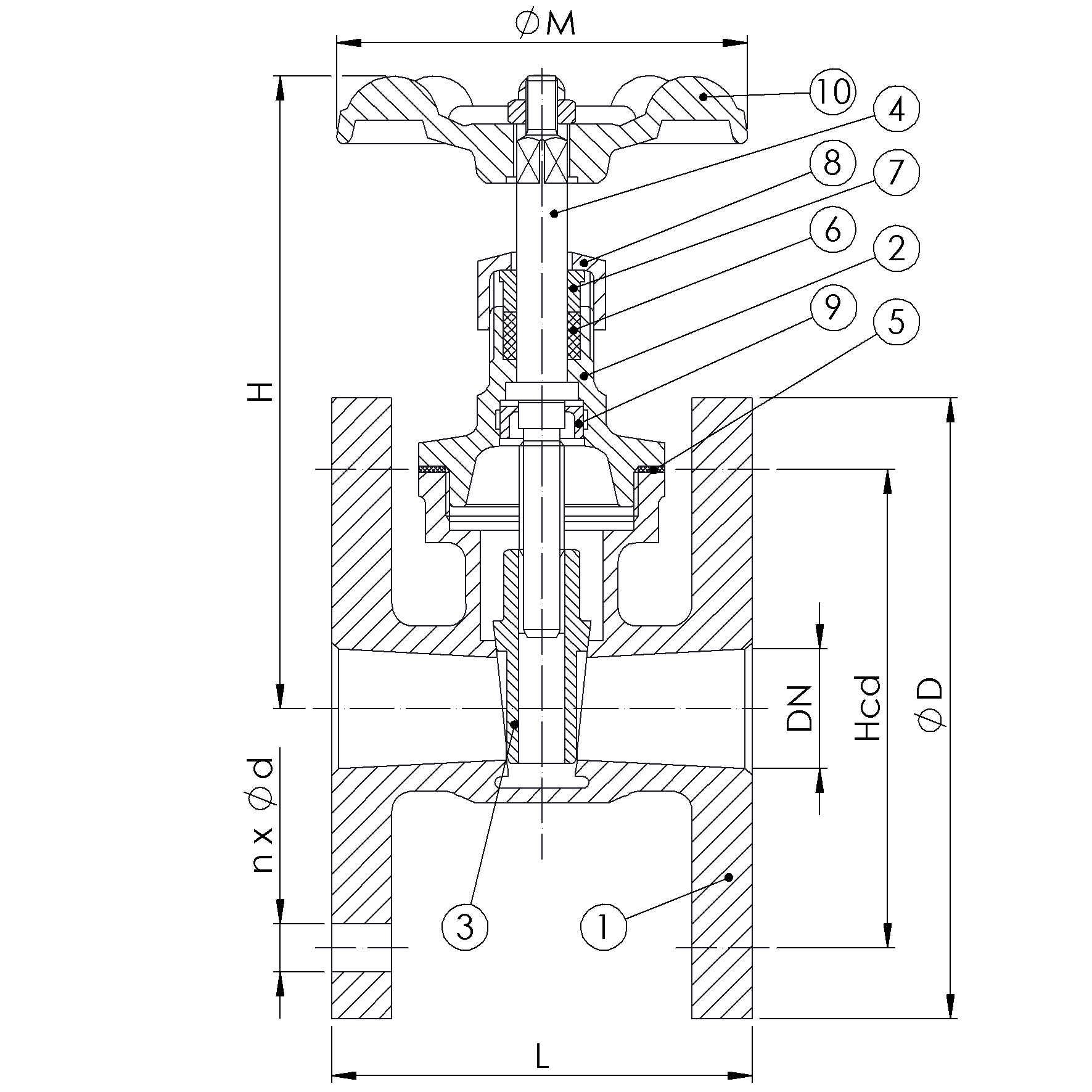

PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Brass CW 614N
3 Wedge Bronze CC 491K
4 Stem Brass CW 614N
5 Bonnet Gasket Heat Resistant Fiber
6 Packing Heat Resistant Fiber AF/15MA
7 Gland Brass CW 614N
8 Gland nut Brass CW 614N
9 Stem nut Brass CW 614N
10 Handwheel Steel


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x18 125 165 125 5.6 155 90
