Gate Valve DN50 ANSI 150

Item No.
130-00000527
Details

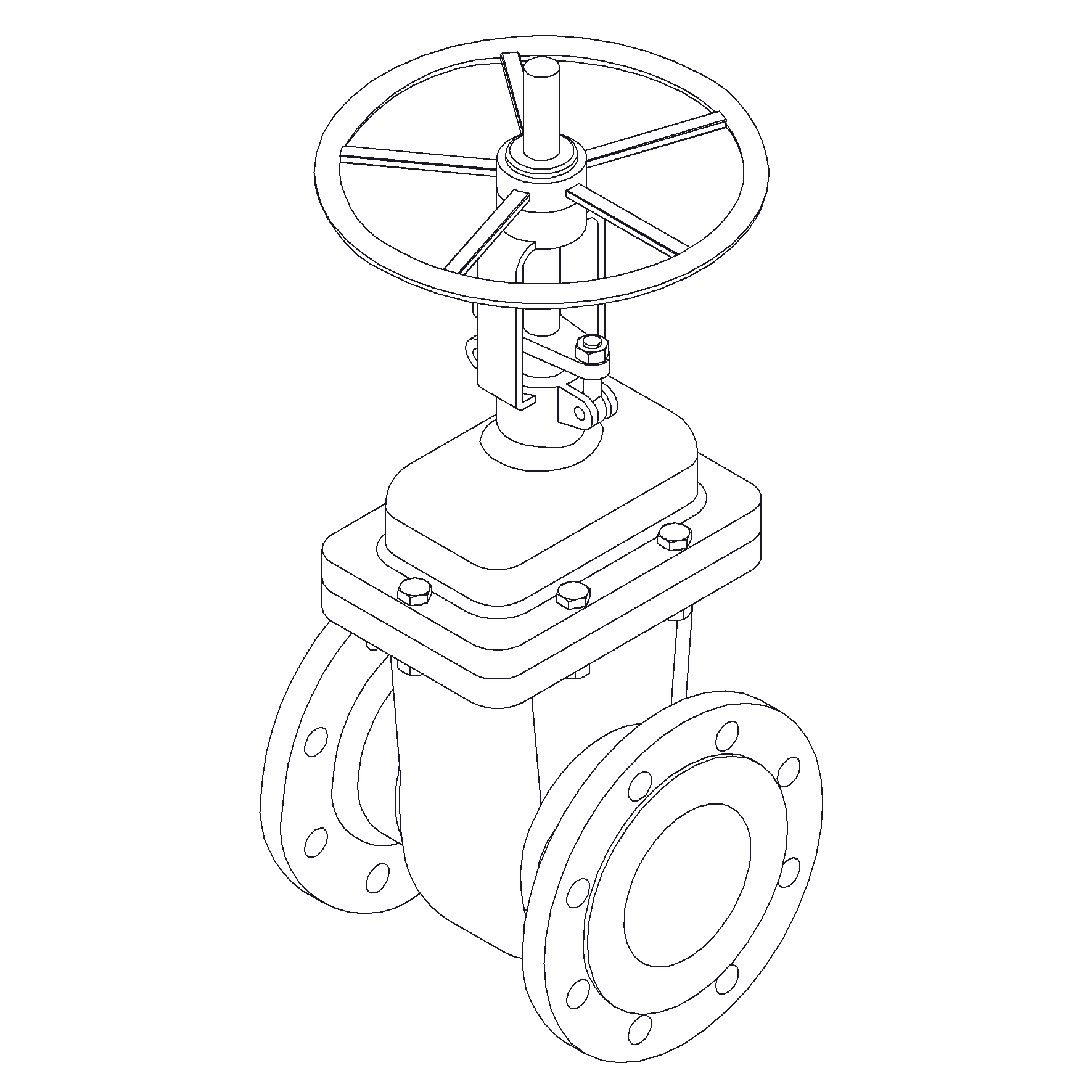

Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 620767
Material Body Cast Steel
Remark Connection: ANSI 150
Throughput Direction Straight
Face To Face Standard ASME B16.10
End Standard ASME B16.5
Design Code API 600
Standard ANSI
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 50
Material Seat Stainless Steel, 420
Material Disc Cast Steel
Pressure Rating ANSI 150
End Type Flanged
Sub Category GATE
Item Number 130-00000527
Category Valve
Inspection Standard API 598
Partslist and details

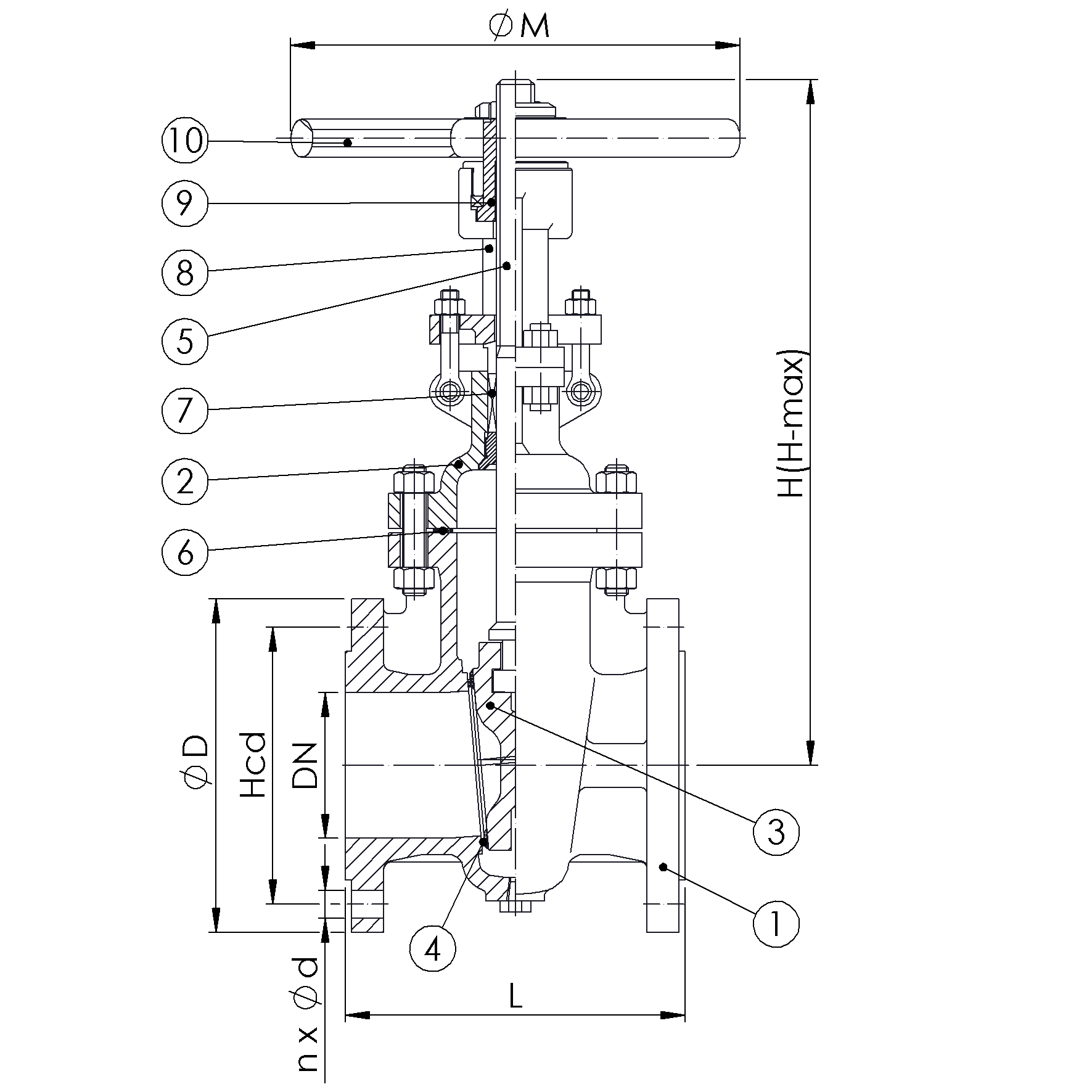

PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Wedge Cast Steel ASTM A216-WCB
4 Seat Stainless Steel Deposited 13Cr
5 Stem Stainless Steel ASTM A182-F6a
6 Bonnet Gasket Graphite
7 Packing Graphite
8 Yoke Cast Steel ASTM A216-WCB
9 Stem nut Aluminium Bronze
10 Handwheel Cast Iron


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg Ø M
50 150 4x19 121 150 178 18 200
