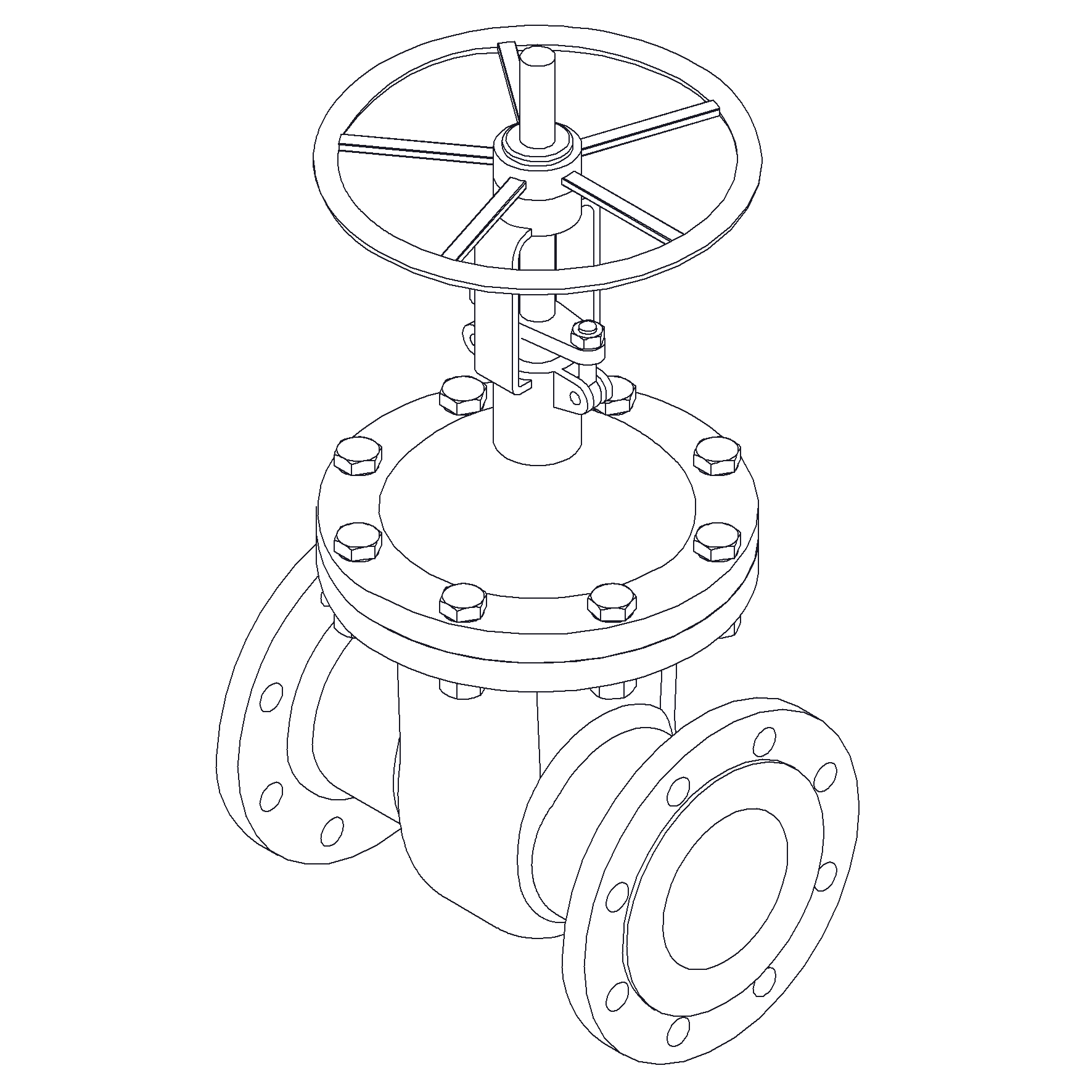

Gate Valve DN250 PN25

Long type
Item No.
130-00000491
Details
Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Rising stem and bolted bonnet. Raised face flanges. Long type.
More Information
More Information
Price View Price Range
Product Group 620763
Material Body Cast Steel
Remark Connection: PN25
Throughput Direction Straight
Face To Face Standard EN 558, series 15
End Standard EN 1092-1
Design Code EN 1984
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 250
Material Seat Stainless Steel, 420
Material Disc Cast Steel
Pressure Rating PN25
End Type Flanged
Sub Category GATE
Item Number 130-00000491
Category Valve
Inspection Standard EN 12266
Partslist and details

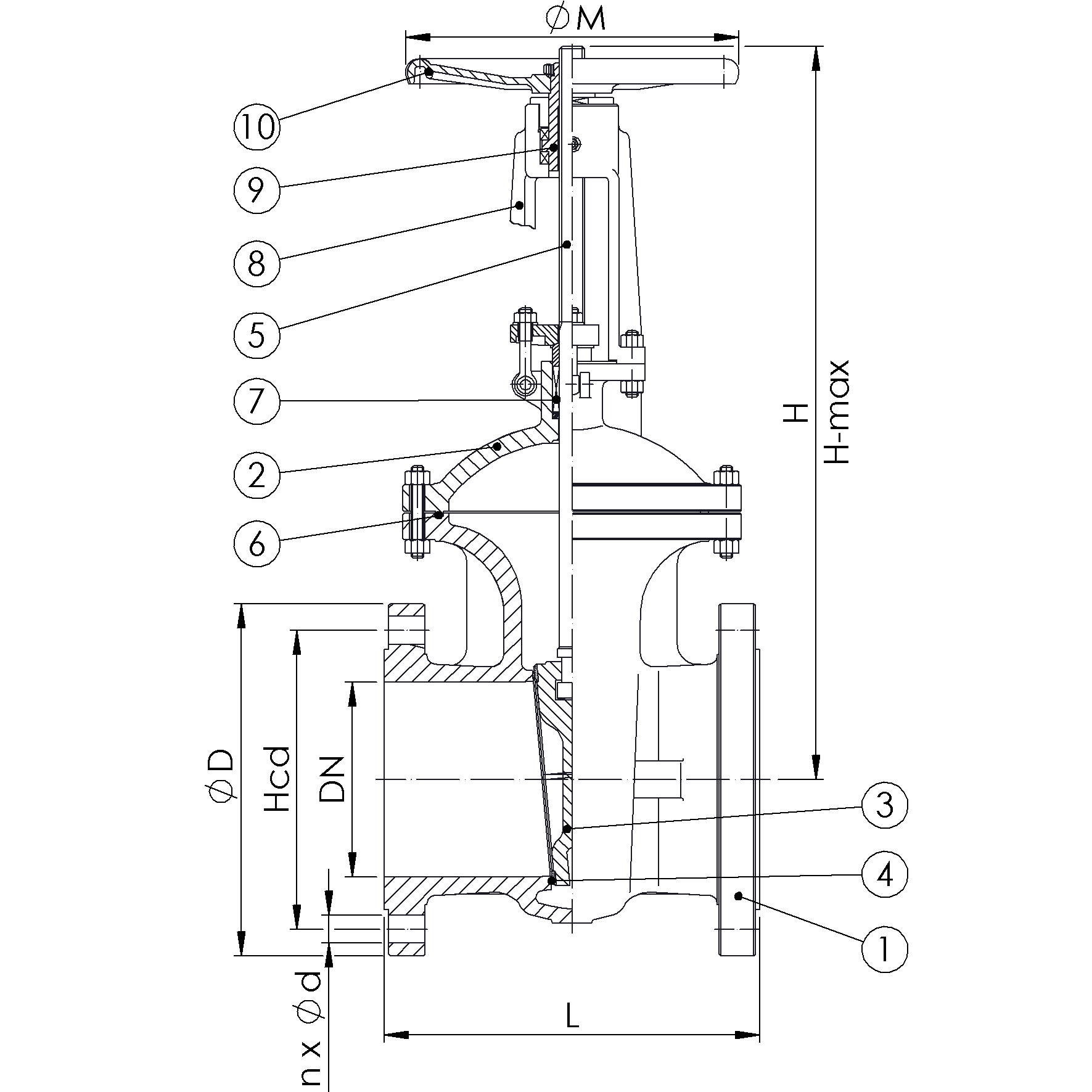

PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Wedge Cast Steel ASTM A216-WCB
4 Seat Stainless Steel Deposited 13Cr
5 Stem Stainless Steel ASTM A182-F6a
6 Bonnet Gasket Graphite
7 Packing Graphite
8 Yoke Cast Steel ASTM A216-WCB
9 Stem nut Aluminium Bronze
10 Handwheel Cast Iron


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Hmax Kg H Ø M
250 25 12x30 370 425 450 1245 290 969 450
