Gate Valve DN175 PN10
Details
Nodular Cast Iron body gate valve, Nodular Cast Iron wedge, Bronze RG5 seat. Non rising stem with open/close indicator and bolted bonnet. Raised face flanges.
More Information
| Product Group | 620101 |
|---|---|
| Material Disc | Nodular Cast Iron, GGG40.3 |
| Min temperature | -10°C |
| Max temperature | +120°C |
| Category | Valve |
| Item Number | 130-00000179 |
| Sub Category | GATE |
| End Type | Flanged |
| Pressure Rating | PN10 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Material Seat | Bronze |
| Size | 175 |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water |
| Standard | DIN |
| Design Code | EN 1171 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 14 |
| Throughput Direction | Straight |
| Remark | Connection: PN10 |

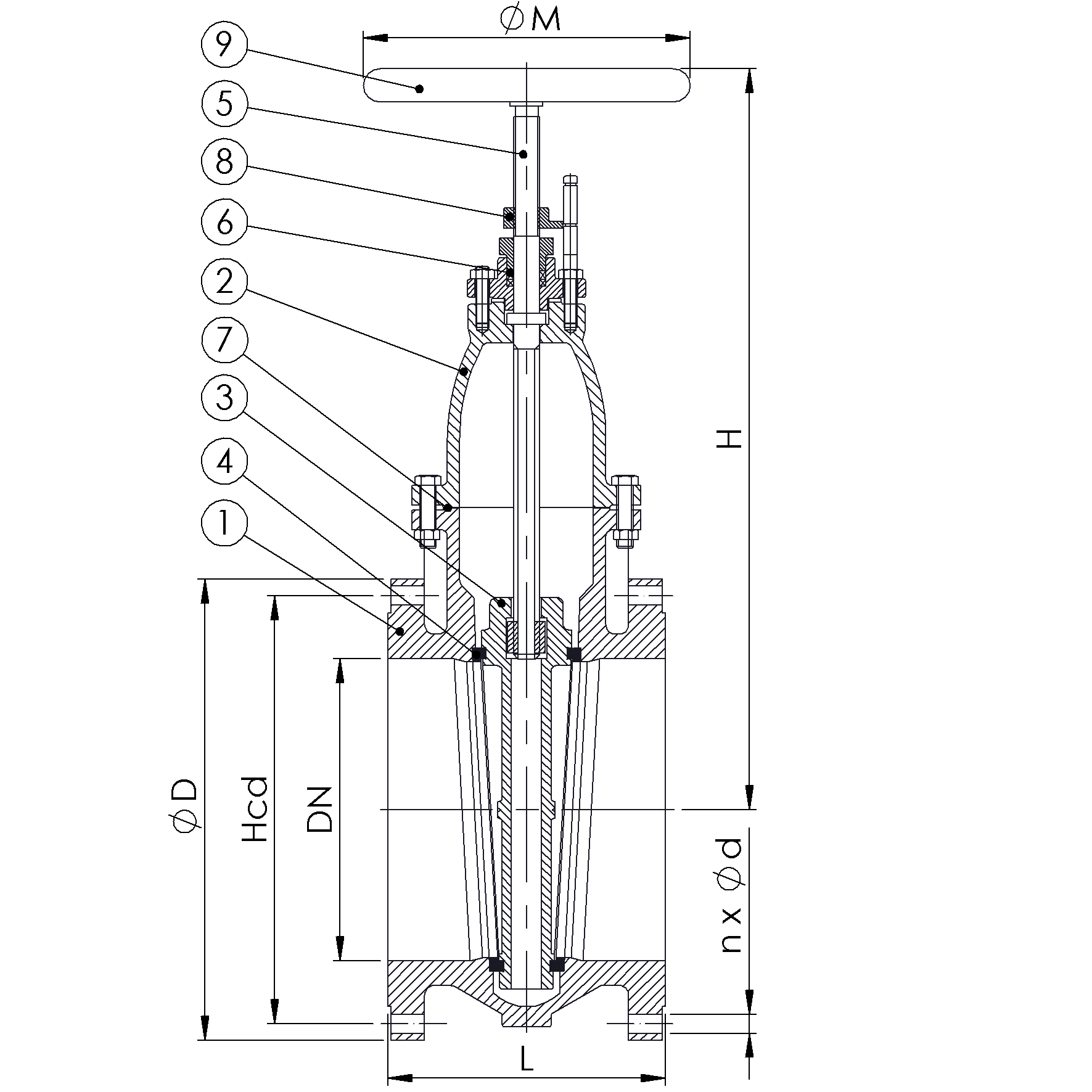

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Bonnet | Nodular Cast Iron | GGG40.3 |
| 3 | Wedge | Nodular Cast Iron | GGG40.3 |
| 4 | Seat | Bronze | CC 491K |
| 5 | Stem | Brass | CW 614N |
| 6 | Gland packing | PTFE | |
| 7 | Bonnet gasket | Asbestos Free | |
| 8 | Indicator | Bronze | CC 491K |
| 9 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 175 | 10 | 8x22 | 270 | 315 | 220 | 63 | 560 | 200 |
