Gate Valve DN100 PN16

Item No.
130-00000549
Details

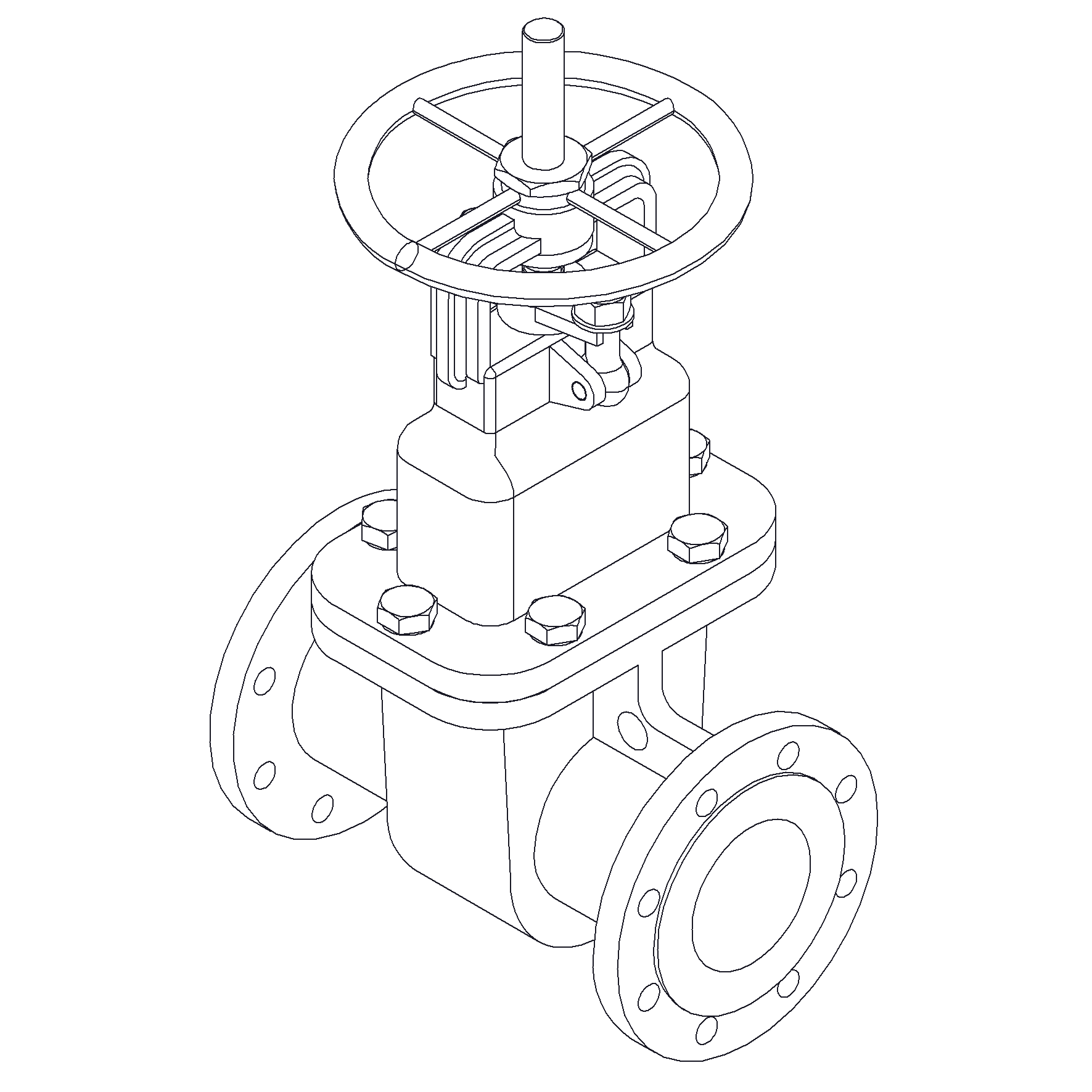

Stainless Steel body gate valve, Stainless Steel wedge. Rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 621792
Material Body Stainless Steel, 316
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 14
End Standard DIN 2633
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 100
Material Disc Stainless Steel, 316
Pressure Rating PN16
End Type Flanged
Sub Category GATE
Item Number 130-00000549
Category Valve
Inspection Standard EN 12266
Partslist and details

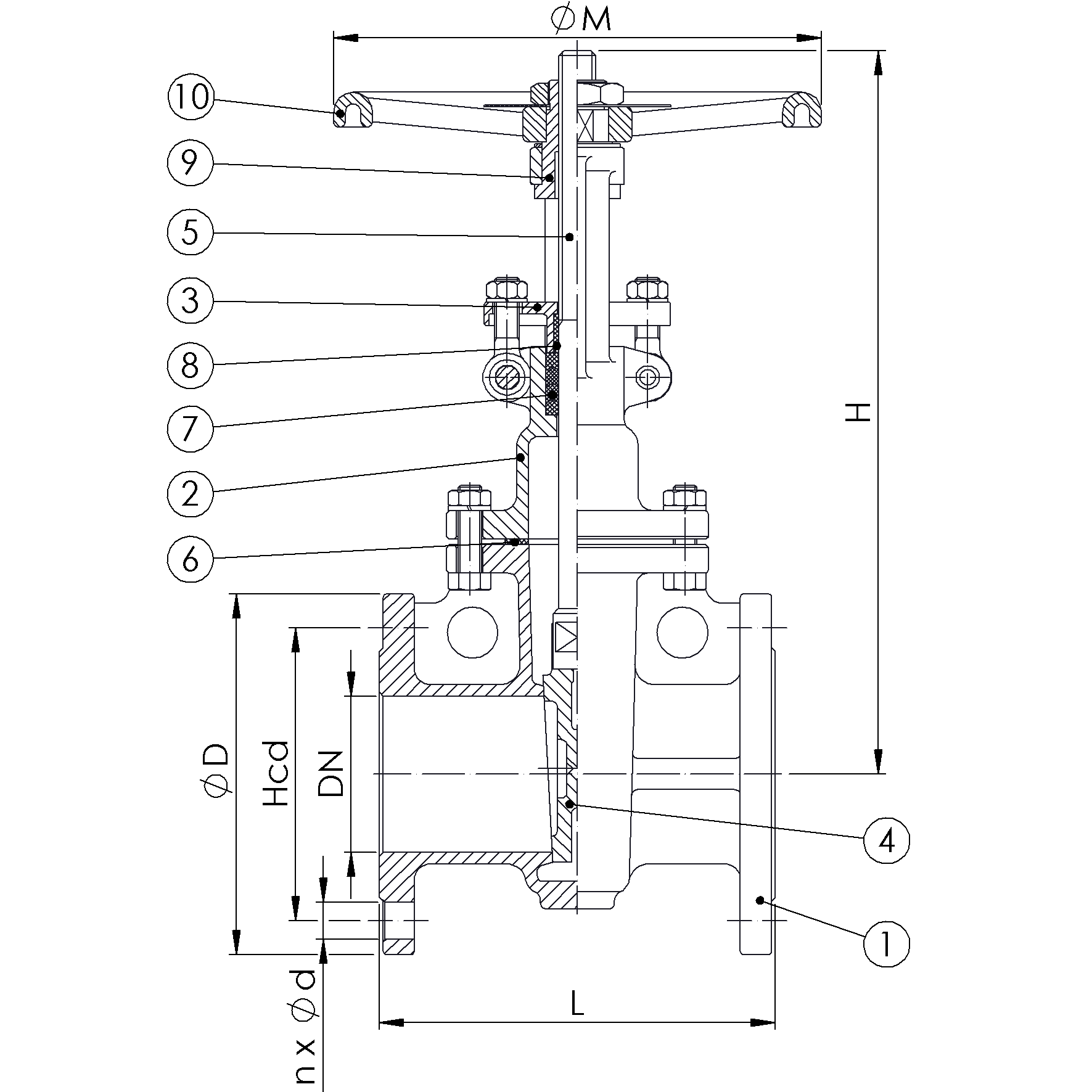

PARTSLIST
No Part Material Code
1 Body Stainless Steel 1.4408
2 Bonnet Stainless Steel 1.4408
3 Gland Stainless Steel 1.4308
4 Wedge Stainless Steel 1.4408
5 Stem Stainless Steel SUS316
6 Bonnet gasket PTFE
7 Gland packing PTFE
8 Stem bushing PTFE
9 Yoke sleeve Bronze
10 Handwheel Cast Iron FCD


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
100 16 8x18 180 220 190 28.6 545 250
