Gate Valve DN100 PN16
Details

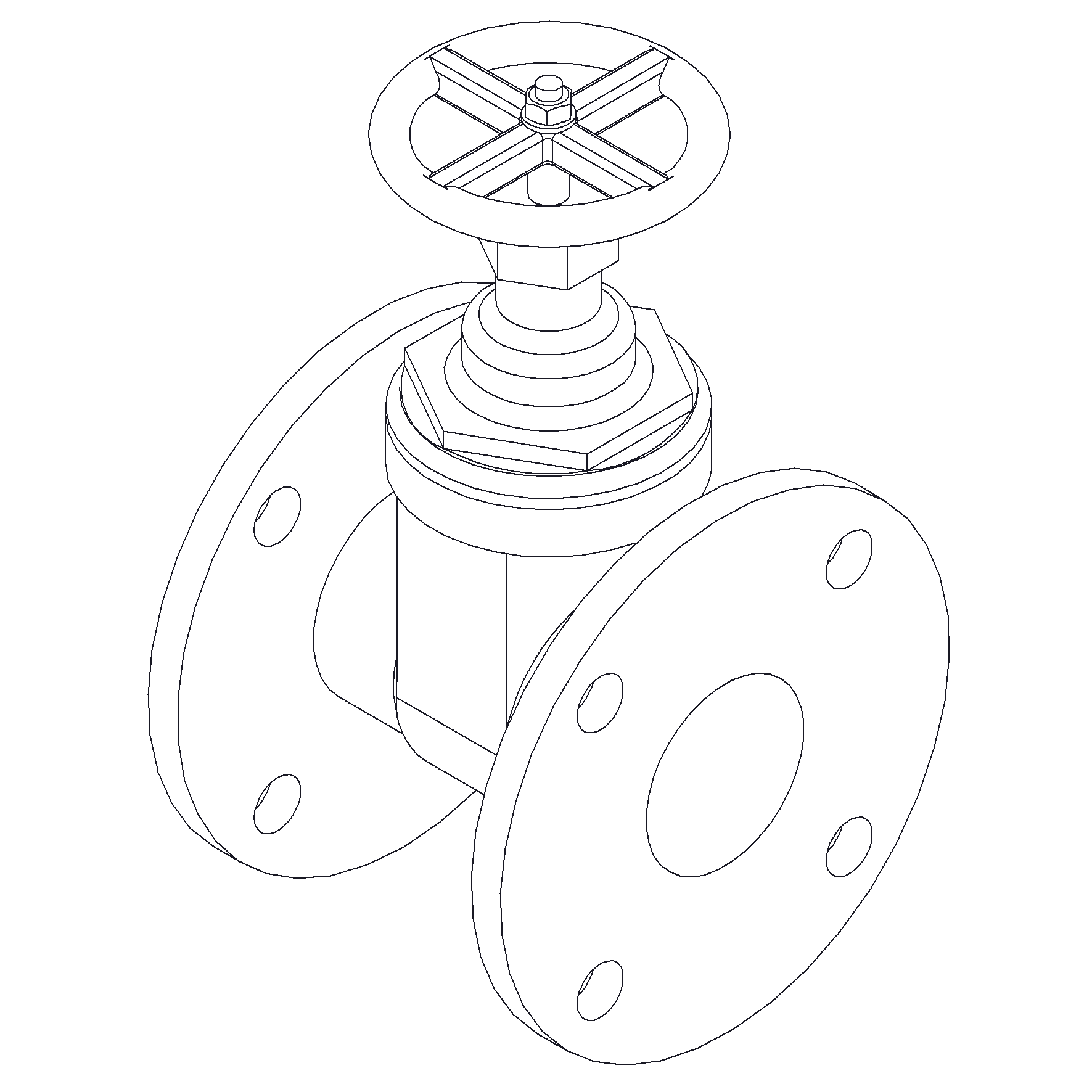

RG5 body gate valve, RG5 wedge. Non rising stem, screwed bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 400822 |
| Material Body | Bronze |
| Min temperature | 0°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| End Standard | EN 1092-3 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 100 |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000122 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Max temperature | +95°C |
Partslist and details

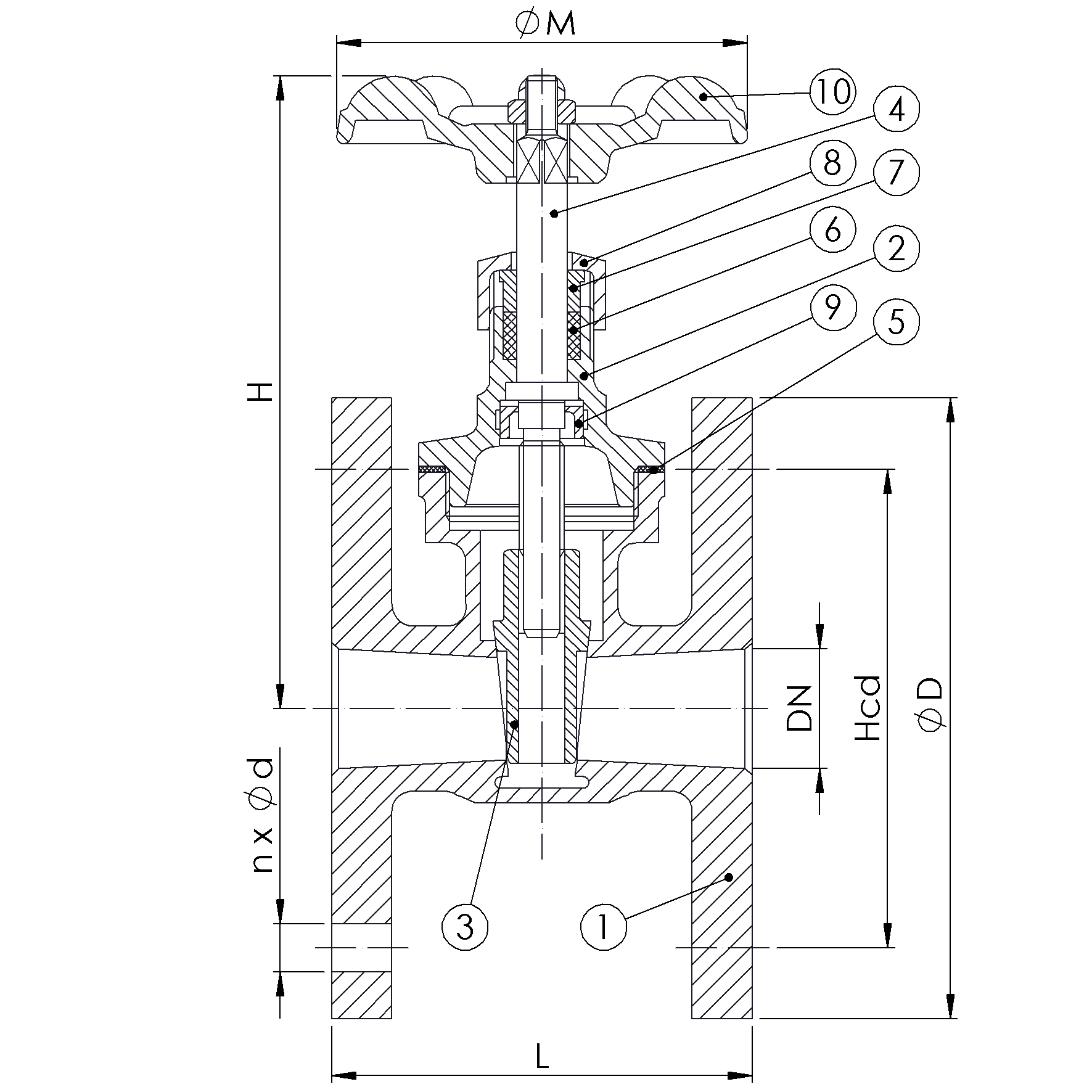

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 491K |
| 3 | Wedge | Bronze | CC 491K |
| 4 | Stem | Brass | CW 614N |
| 5 | Bonnet Gasket | Heat Resistant Fiber | |
| 6 | Packing | Heat Resistant Fiber | AF/15MA |
| 7 | Gland | Brass | CW 614N |
| 8 | Gland nut | Brass | CW 614N |
| 9 | Stem nut | Brass | CW 614N |
| 10 | Handwheel | Steel |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 100 | 16 | 8x18 | 180 | 220 | 170 | 15.8 | 325 | 175 |
