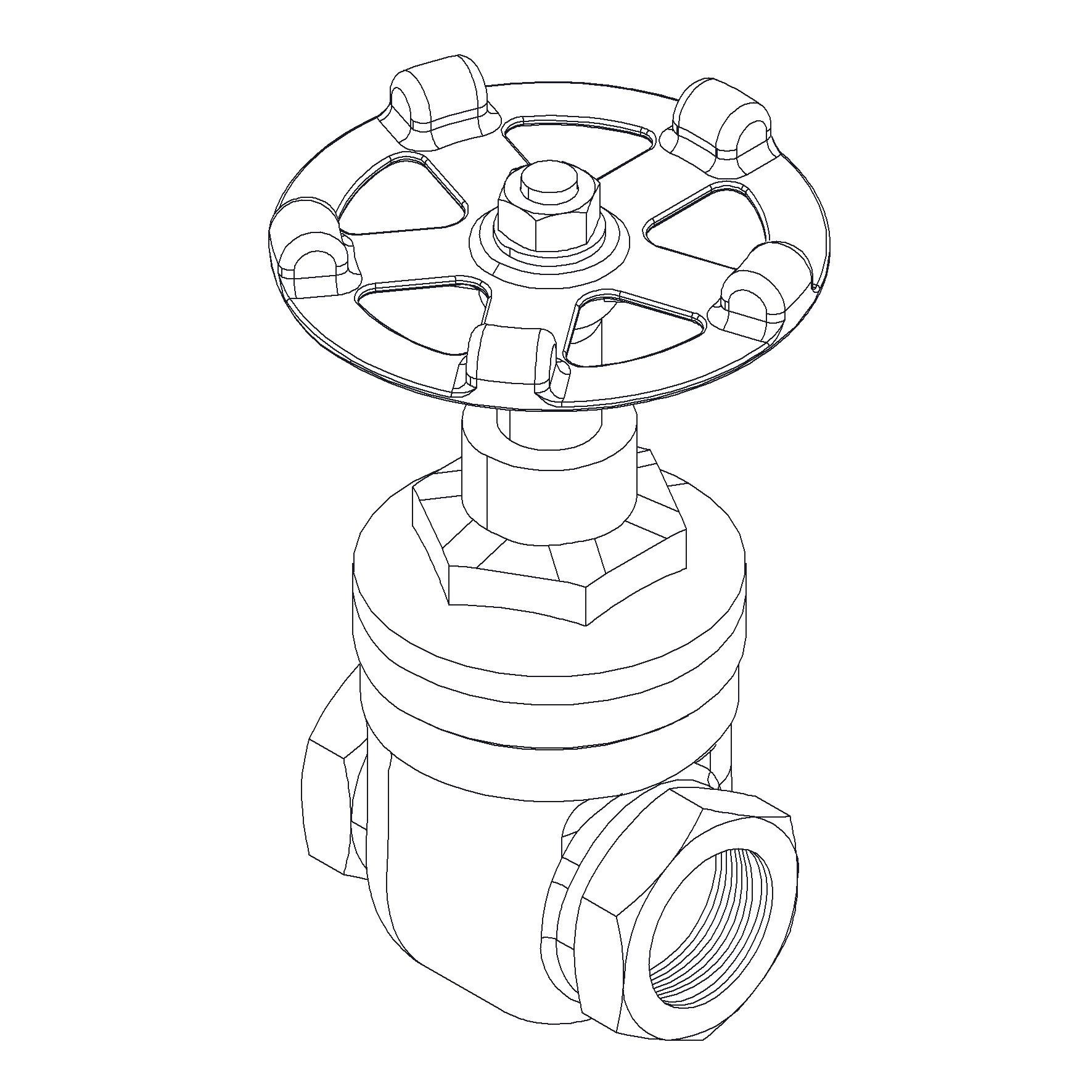

Gate Valve 2" 200WOG
Details
Stainless Steel body gate valve, Stainless Steel wedge. Non rising stem, screwed bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 400692 |
| Material Body | Stainless Steel, 316 |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Sea water, Steam, Water |
| Size | 50 |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | 200WOG |
| End Type | Threaded |
| Sub Category | GATE |
| Item Number | 130-00000107 |
| Category | Valve |
Partslist and details

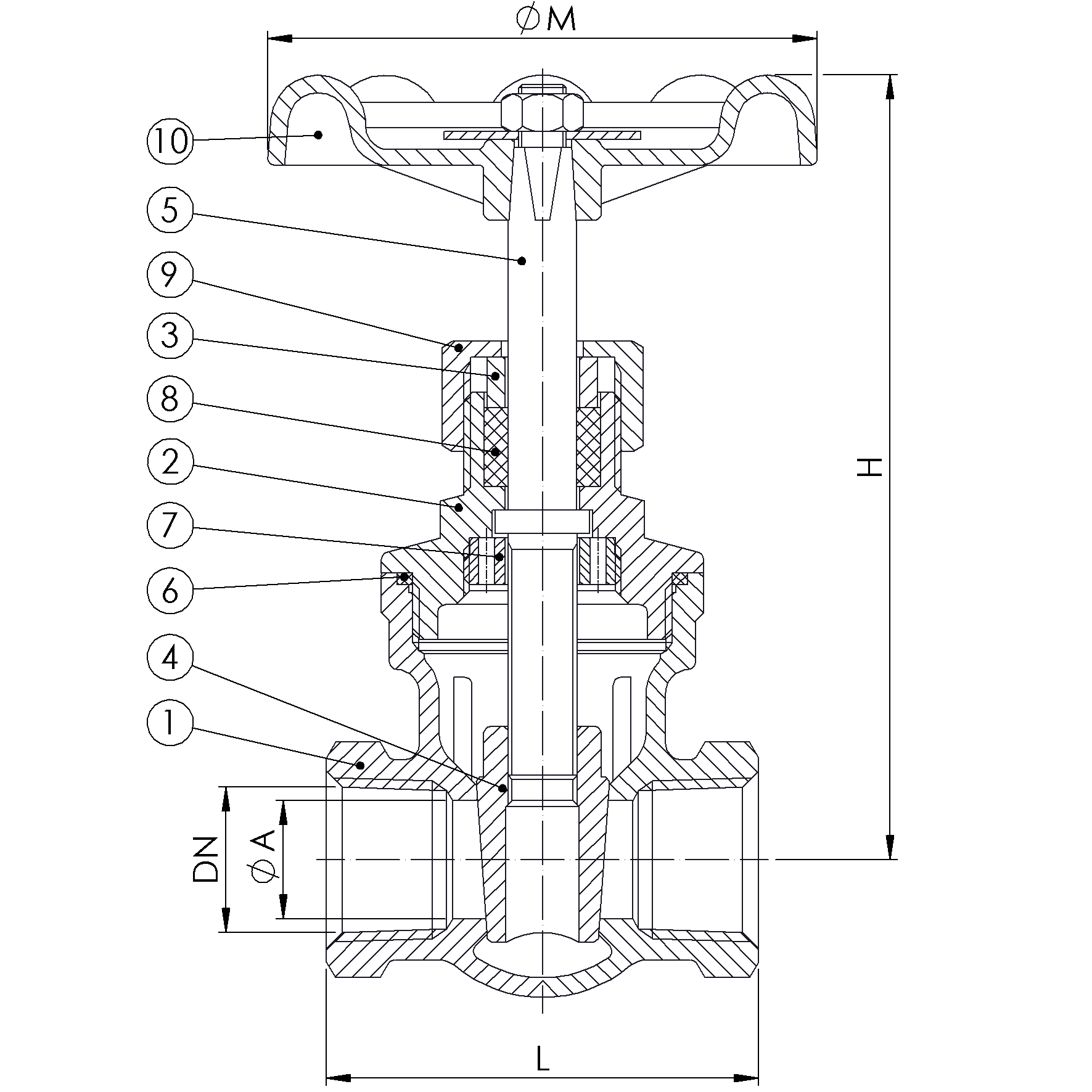

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 7 | Whorl Gasket | Stainless Steel | SUS304 |
| 8 | Packing | PTFE | |
| 9 | Cap nut | Stainless Steel | CF8M |
| 10 | Handwheel | Aluminium | |
| 1 | Body | Stainless Steel | CF8M |
| 2 | Bonnet | Stainless Steel | CF8M |
| 3 | Gland | Stainless Steel | SUS304 |
| 4 | Wedge | Stainless Steel | CF8M |
| 5 | Stem | Stainless Steel | SUS316 |
| 6 | Bonnet Gasket | PTFE |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø A | Ø M |
|---|---|---|---|---|---|---|---|
| 50 | 200 | 95 | 2.1 | 2" | 175 | 50 | 100 |
