Foot Valve DN300 PN6/10
Details

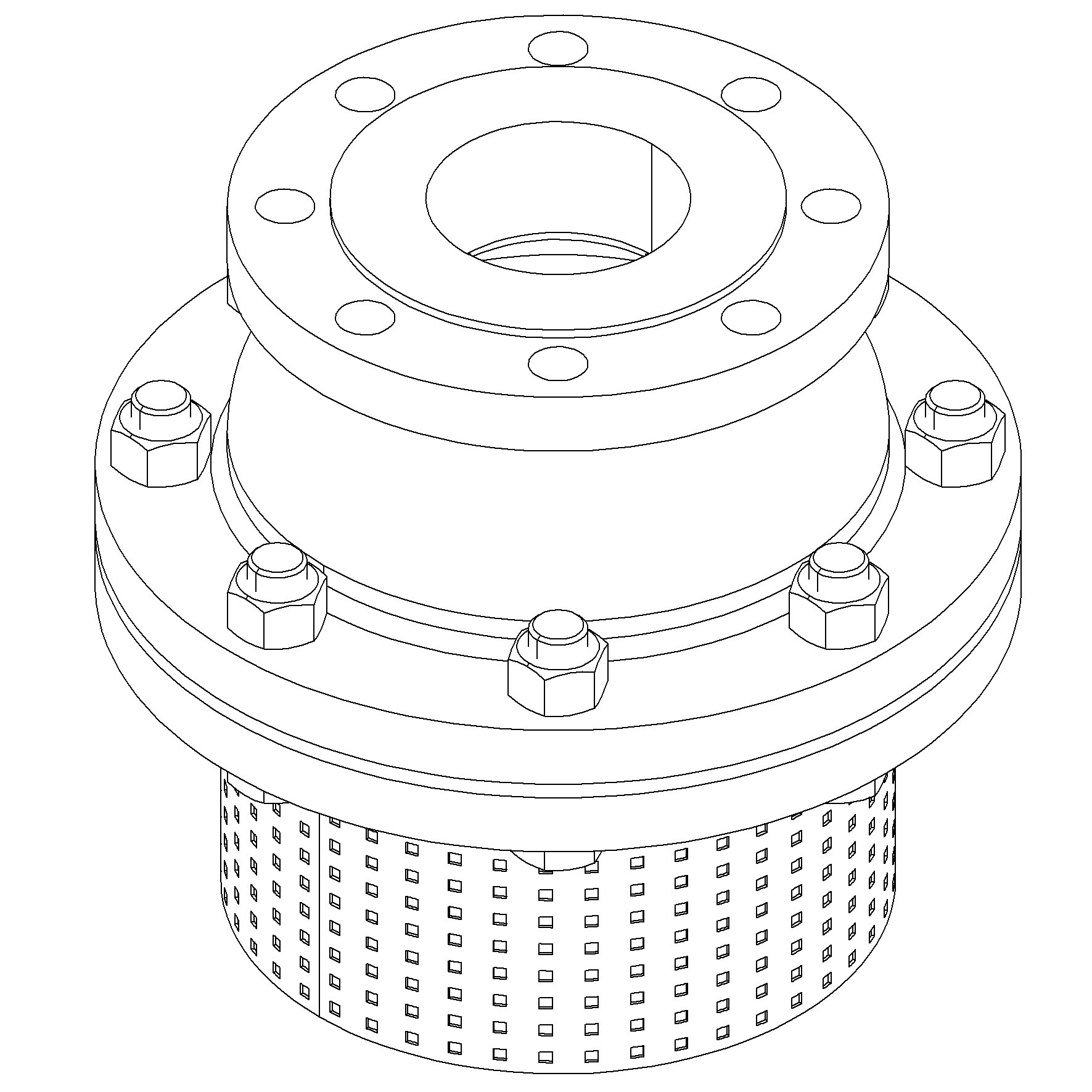

Cast Iron body, combination of screened suction inlet and soft sealing disc check valve. Raised face flanges.
More Information
Price View | Price Range |
---|---|
Product Group | 485451 |
Material Body | Cast Iron |
Min temperature | -10°C |
Remark | Connection: PN10 |
Throughput Direction | Straight |
End Standard | EN 1092-2 |
Standard | DIN |
Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
Size | 300 |
Material Seat | EPDM |
Material Disc | Cast Iron |
Pressure Rating | PN10 |
End Type | Flanged |
Sub Category | CHECK |
Item Number | 60-00000750 |
Category | Valve |
Mesh size | 5 mm |
Max temperature | +120°C |
Partslist and details

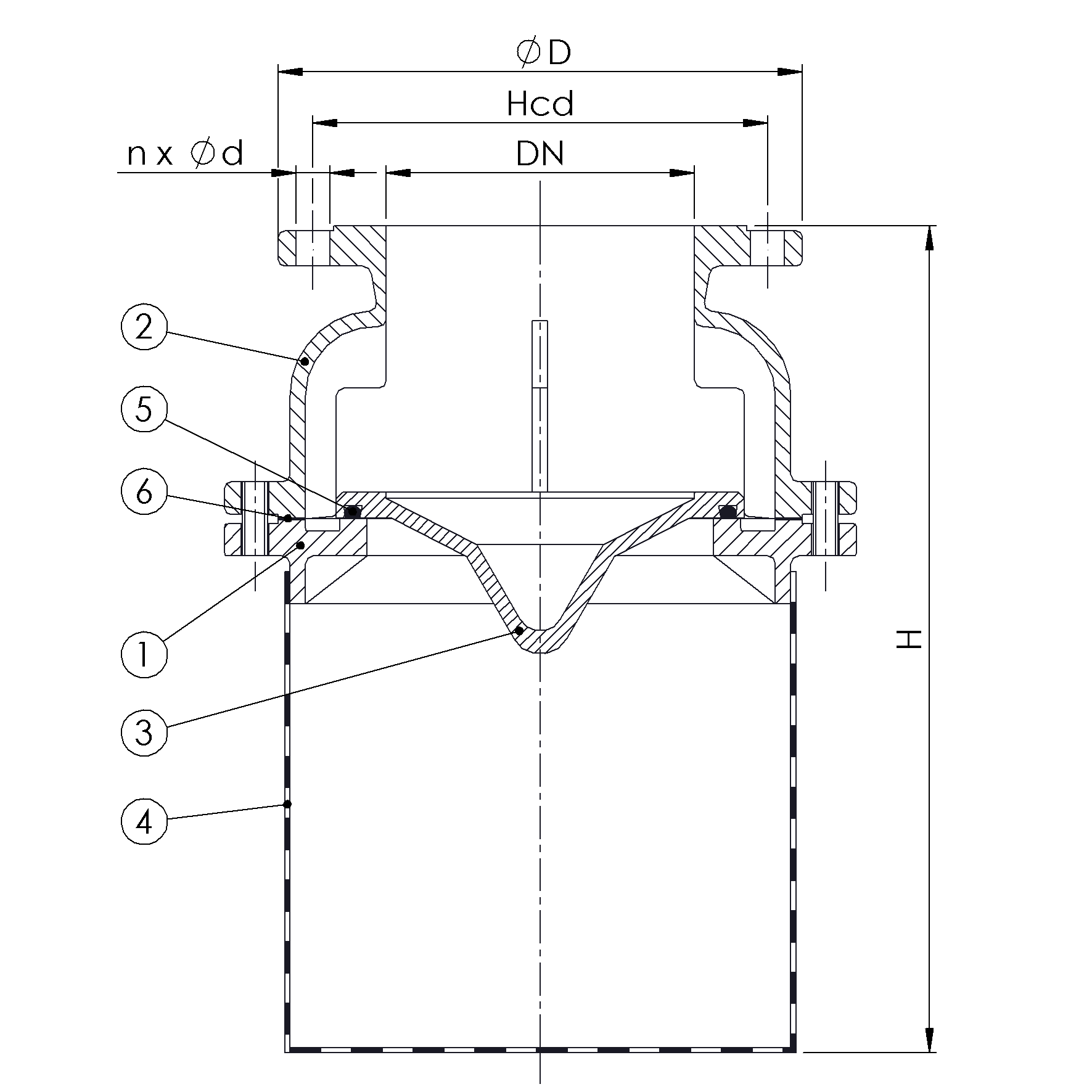

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Cast Iron | GG25 |
2 | Bonnet | Cast Iron | GG25 |
3 | Disc | Cast Iron | GG25 |
4 | Basket | Stainless Steel | 1.4301 |
5 | Disc ring | EPDM | |
6 | Bonnet Gasket | EPDM |
DETAILS
DN | Pressure Rating Id | nxdd | Hcd | Ø D | Kg | H |
---|---|---|---|---|---|---|
300 | 10 | 12x22 | 400 | 445 | 160 | 710 |
