Foot Valve DN100 PN10

Item No.
60-00000746
Details

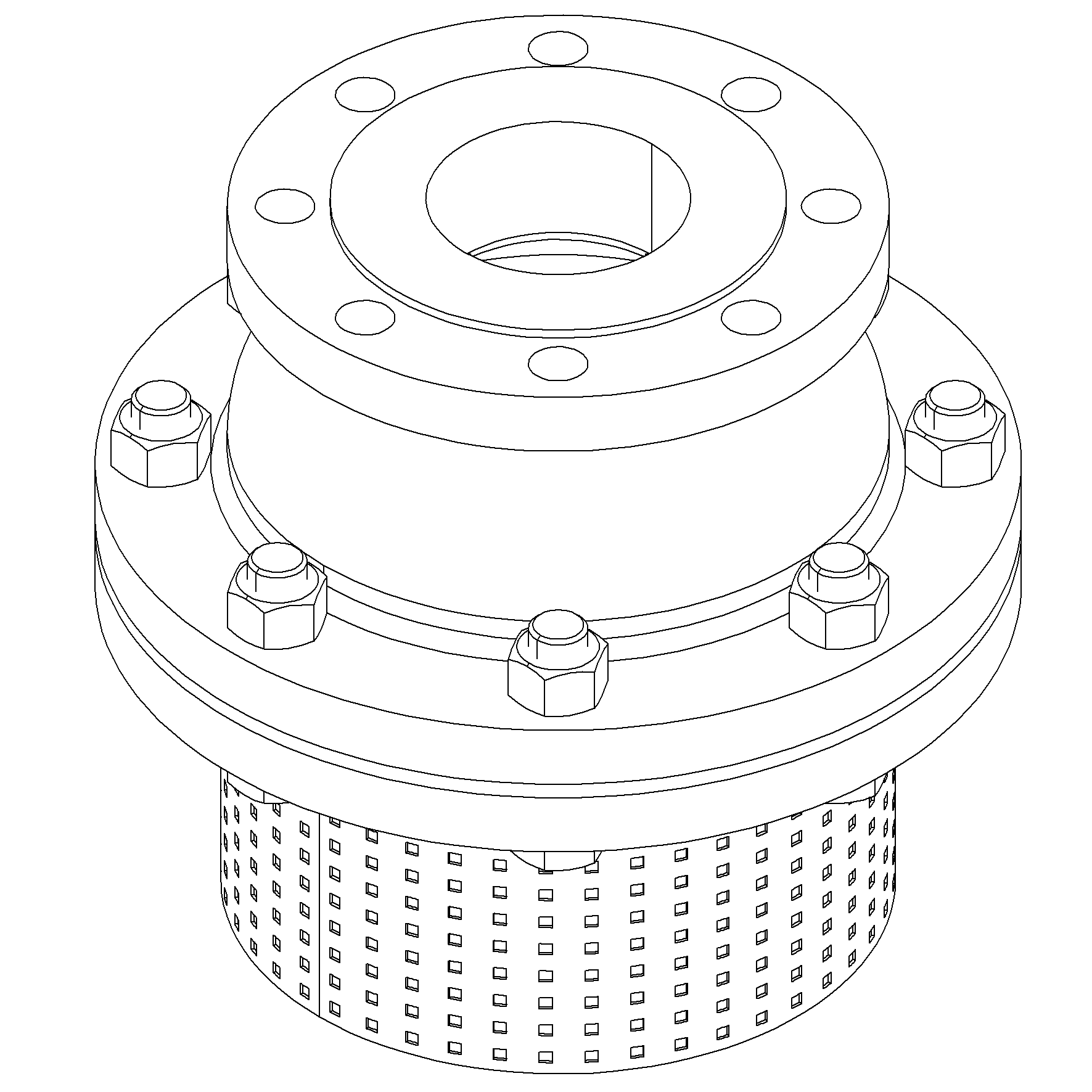

Cast Iron body, combination of screened suction inlet and soft sealing disc check valve. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 485451
Material Body Cast Iron
Min temperature -10°C
Remark Connection: PN10
Throughput Direction Straight
End Standard EN 1092-2
Standard DIN
Application Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 100
Material Seat EPDM
Material Disc Cast Iron
Pressure Rating PN10
End Type Flanged
Sub Category CHECK
Item Number 60-00000746
Category Valve
Mesh size 5 mm
Max temperature +120°C
Partslist and details

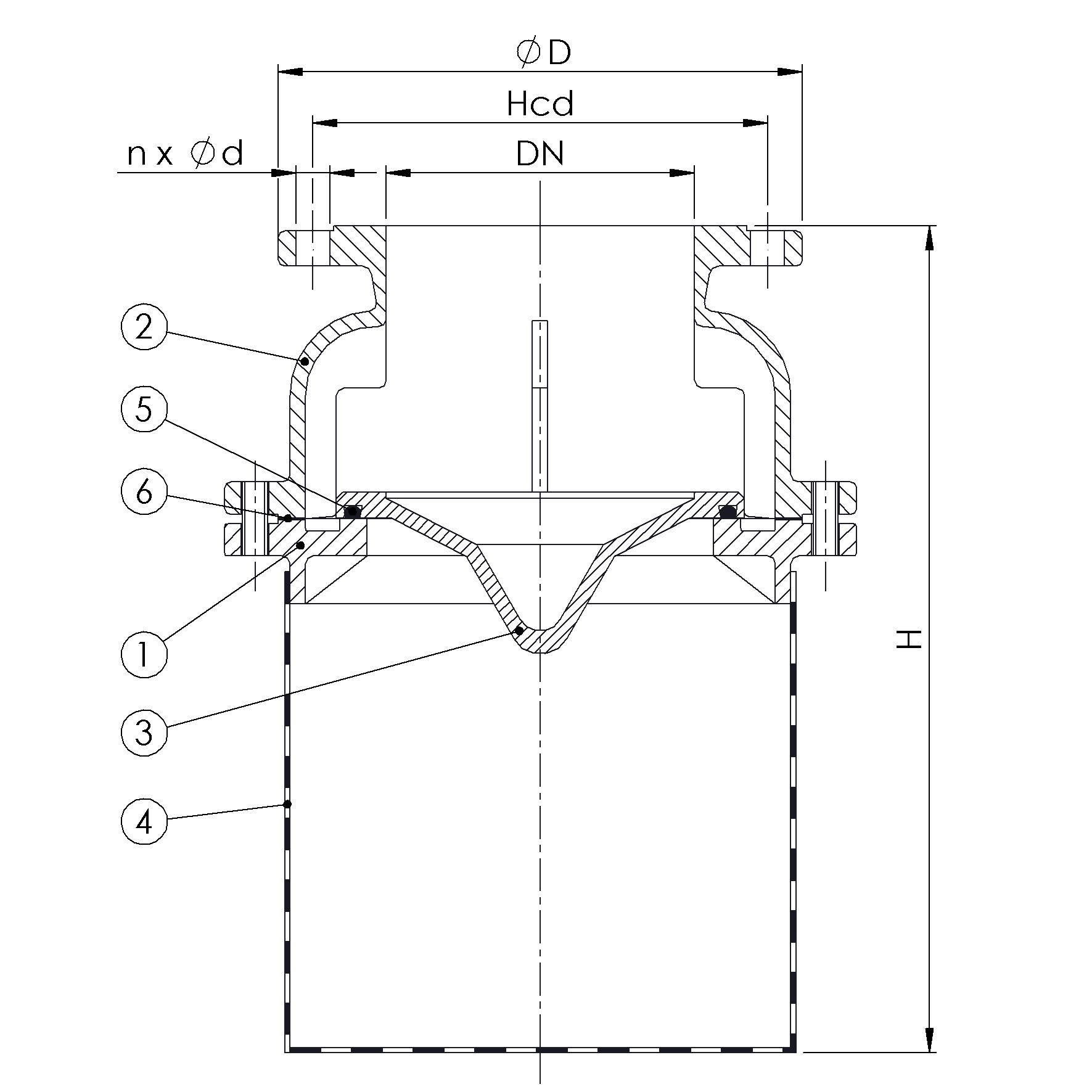

PARTSLIST
No Part Material Code
1 Body Cast Iron GG25
2 Bonnet Cast Iron GG25
3 Disc Cast Iron GG25
4 Basket Stainless Steel 1.4301
5 Disc ring EPDM
6 Bonnet Gasket EPDM


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D Kg H
100 10 8x18 180 220 23 315
