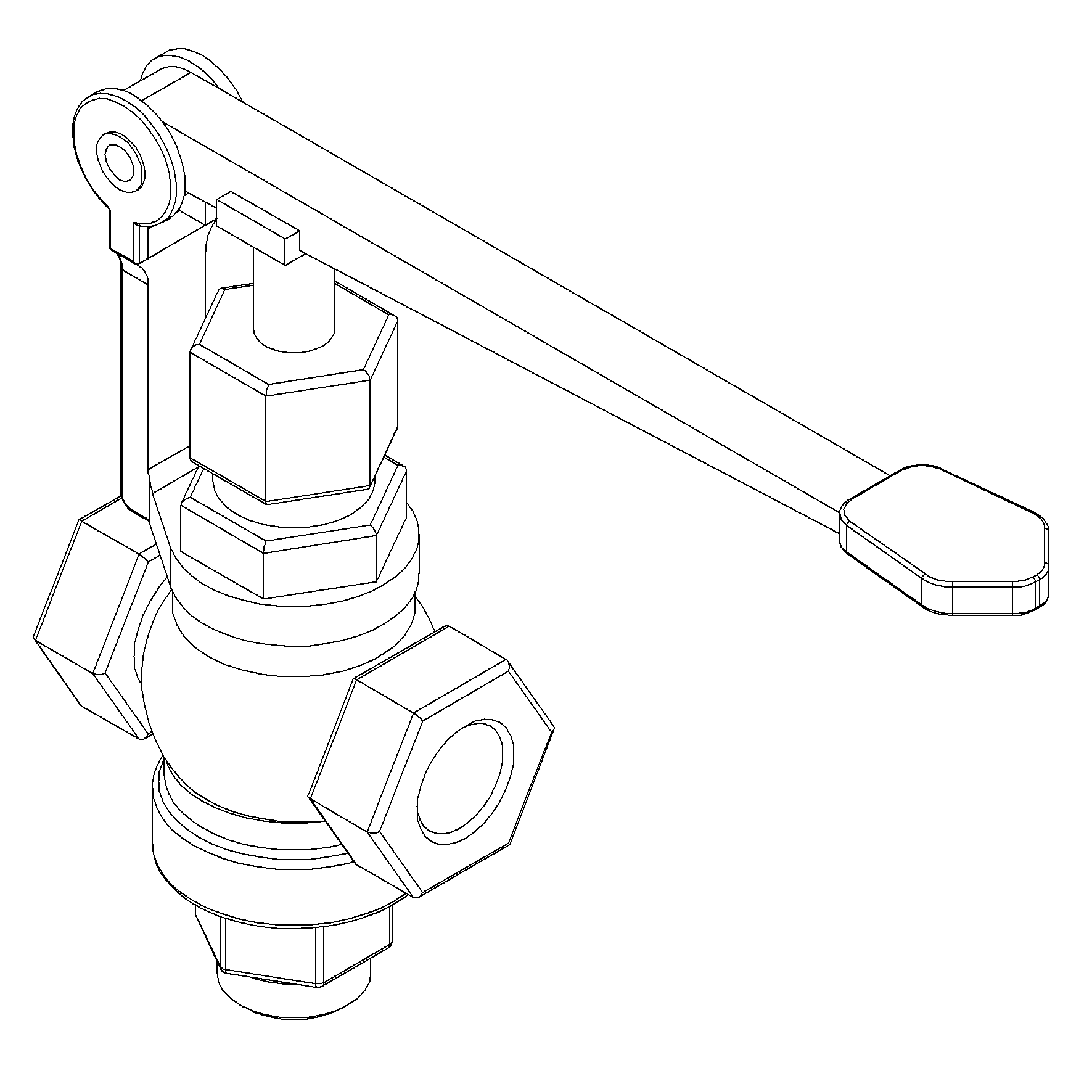

Flushing Valve ¾" PN16

Straight type
Item No.
230-00000010
Details
Straight type, Bronze RG5 body, spring loaded, soft sealing self closing flushing valve. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 314022
Material Body Bronze
Min temperature -10°C
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 20
Material Seat PTFE
Material Disc Brass
Pressure Rating PN16
End Type Threaded
Sub Category SELF
Item Number 230-00000010
Category Valve
Inspection Standard EN 12266
Max temperature +180°C
Partslist and details

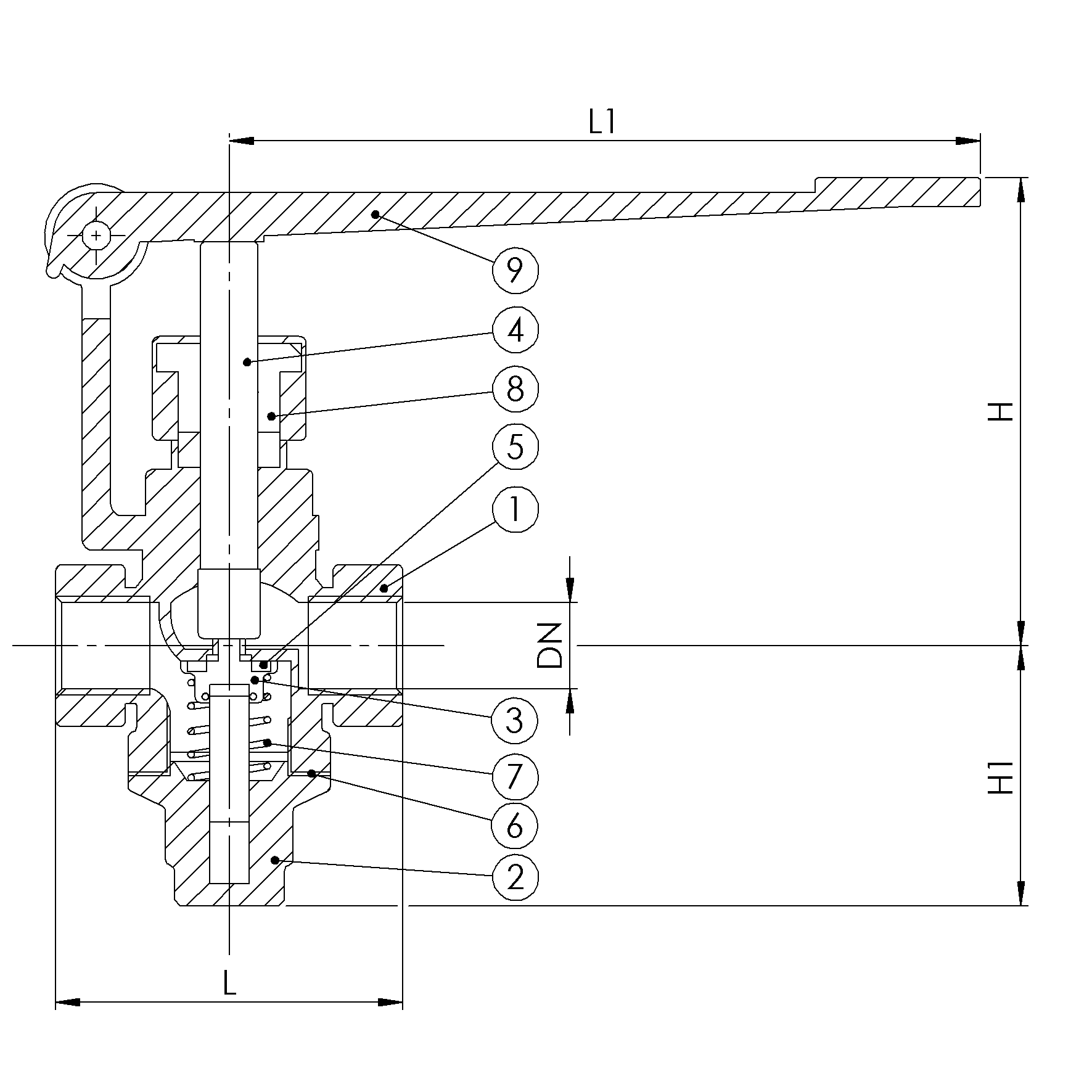

PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Brass CW 614N
3 Disc Brass CW 614N
4 Stem Brass CW 614N
5 Disc seal PTFE
6 Gasket Asbestos Free SIL C4400
7 Spring Stainless Steel
8 Gland packing Fiber AF15/MA
9 Lever Brass CW 614N


DETAILS
DN Pressure Rating Id L Kg L1 Inch H H1
20 16 70 0.9 130 3/4" 142 48
