Fire Valve DN50 PN16
Details

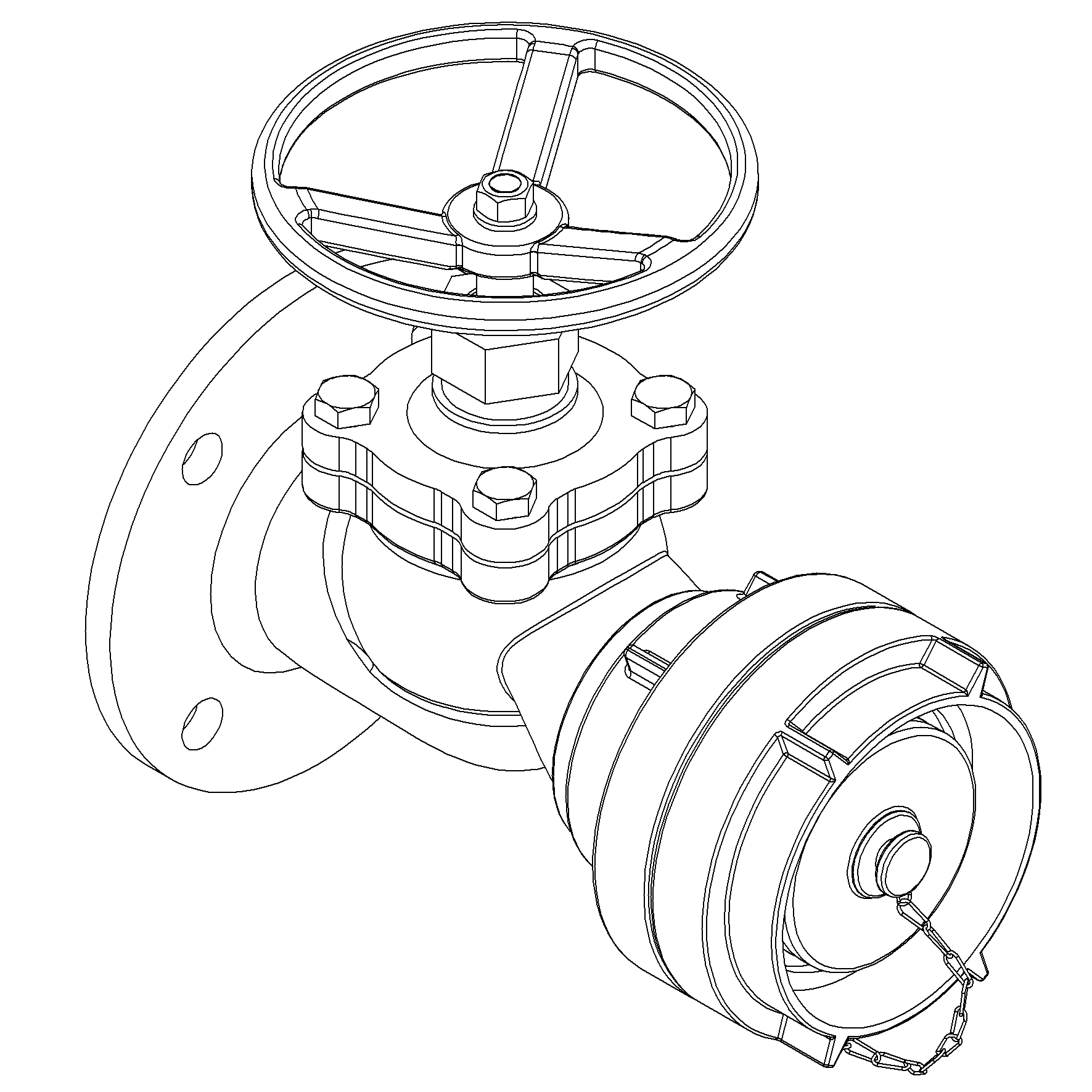

Bronze RG5 body soft sealing fire valve. Rising stem with bolted bonnet. Straight hose connection. Raised face flanged inlet, BSP male threaded outlet. With Storz-C coupling, cap and chain.
More Information
Product Group | 356622 |
---|---|
Throughput Direction | Straight |
Category | Valve |
Item Number | 90-00000015 |
Sub Category | FIRE |
End Type | Flanged/Threaded |
Pressure Rating | PN16 |
Material Body | Bronze |
Material Disc | Brass |
Material Seat | NBR |
Size | 50 |
Application | Sea water, Water |
Standard | DIN |
Design Code | DIN 86211 |
End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
Face To Face Standard | DIN 86211 |
Remark | Connection: PN16 |
Max temperature | +60°C |
Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
9 | Coupling | Bronze/Brass | CC 491K/CW 614N |
3 | Disc | Brass | CW 614N |
4 | Disc sealing ring | NBR | |
5 | Stem | Brass | CW 614N |
6 | Bonnet gasket | Asbestos Free | |
7 | Gland packing | Graphite | |
8 | Handwheel | Cast Iron | GG25 |
1 | Body | Bronze | CC 491K |
2 | Bonnet | Bronze | CC 491K |

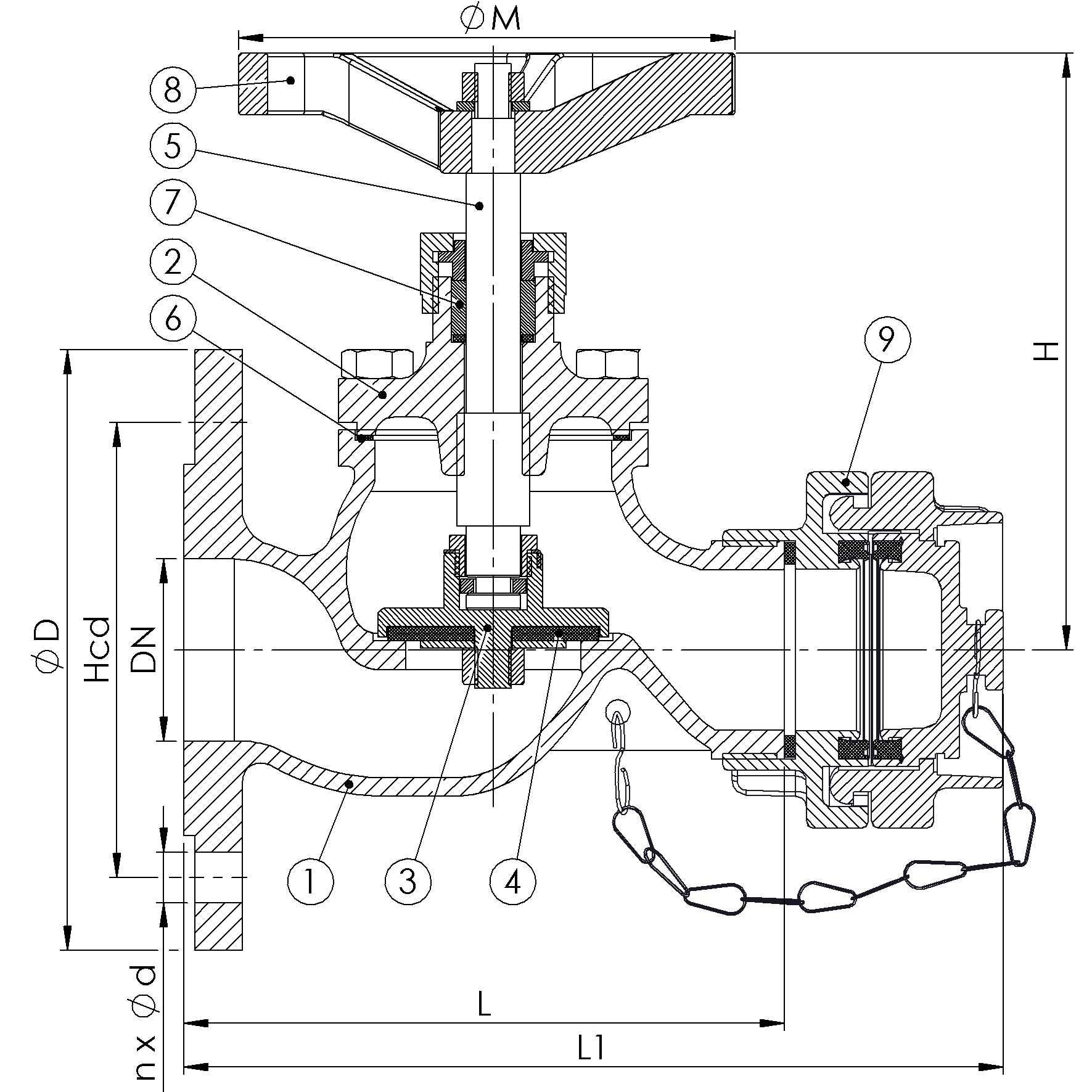

DETAILS
DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | Ø M |
---|---|---|---|---|---|---|---|---|---|
50 | 16 | 4x18 | 125 | 165 | 165 | 7 | 225 | 181 | 140 |
