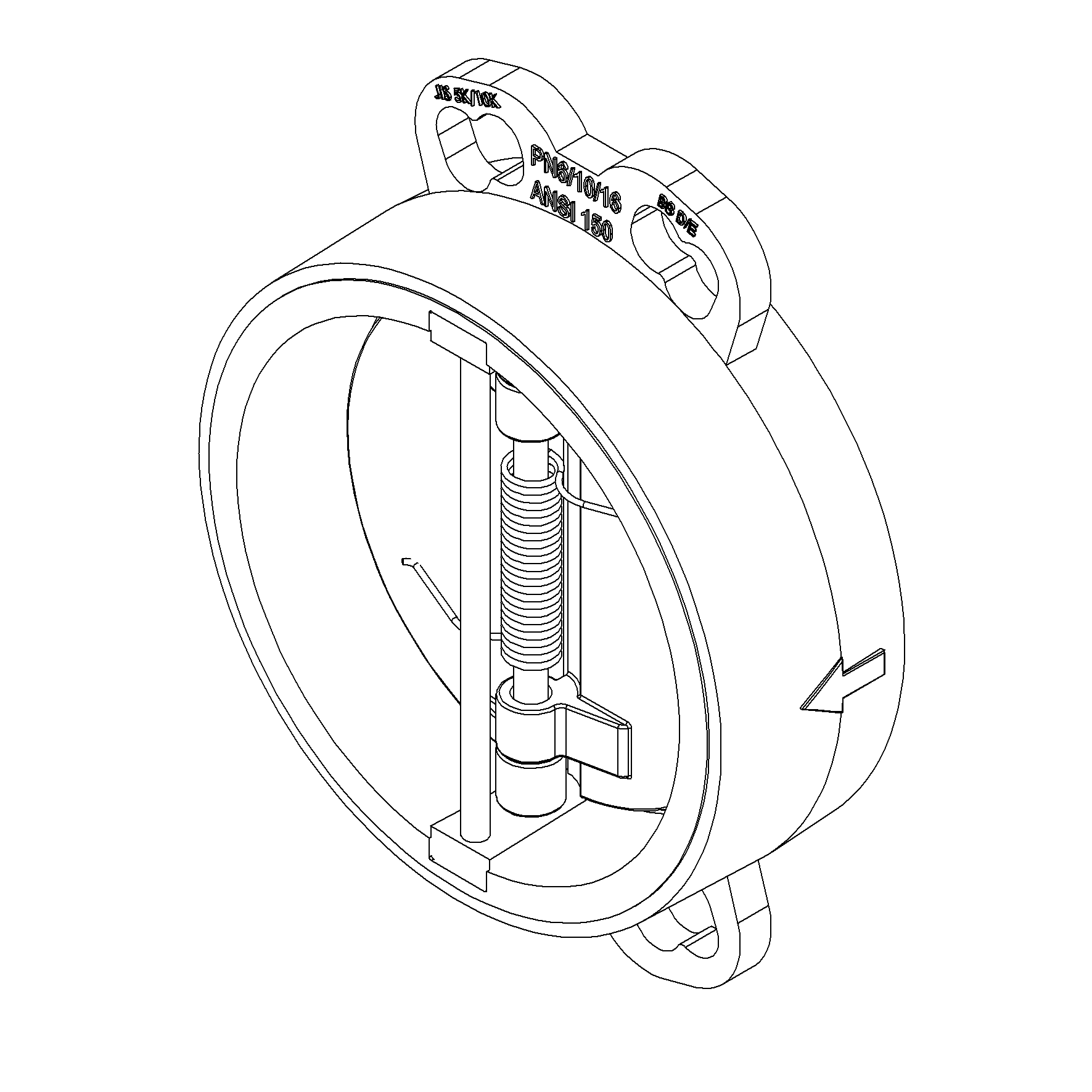

Dual Plate Check Valve DN600 PN10

Wafer type
Item No.
M33596
Details
Nodular Cast Iron body, vulcanized injection molded NBR liner dual plate check valve with Aluminium Bronze disc. Opening pressure less than 0,2 bar.
More Information
More Information
Price View Price Range
Product Group 300701
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Multiflange: PN6/10/16, ANSI150, JIS5K/10K
Throughput Direction Straight
Face To Face Standard EN 558, series 16
Standard DIN
Application Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 600
Material Seat NBR
Material Disc Aluminium Bronze
Pressure Rating PN10
End Type Wafer
Sub Category CHECK
Item Number M33596
Category Valve
Max temperature +80°C

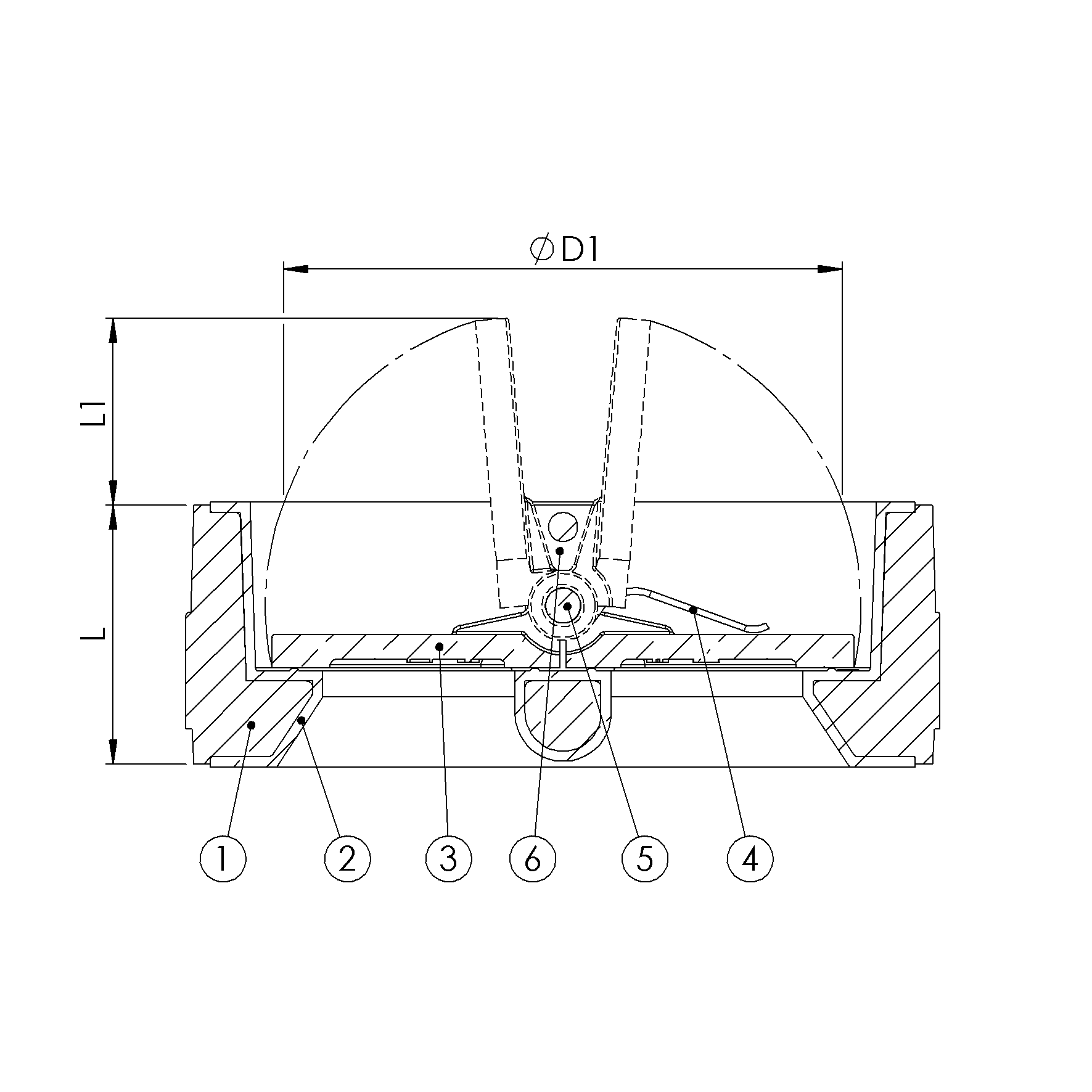

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat NBR
3 Disc Aluminium Bronze
4 Spring Inconel
5 Shaft Monel
6 Clips Aluminium Bronze

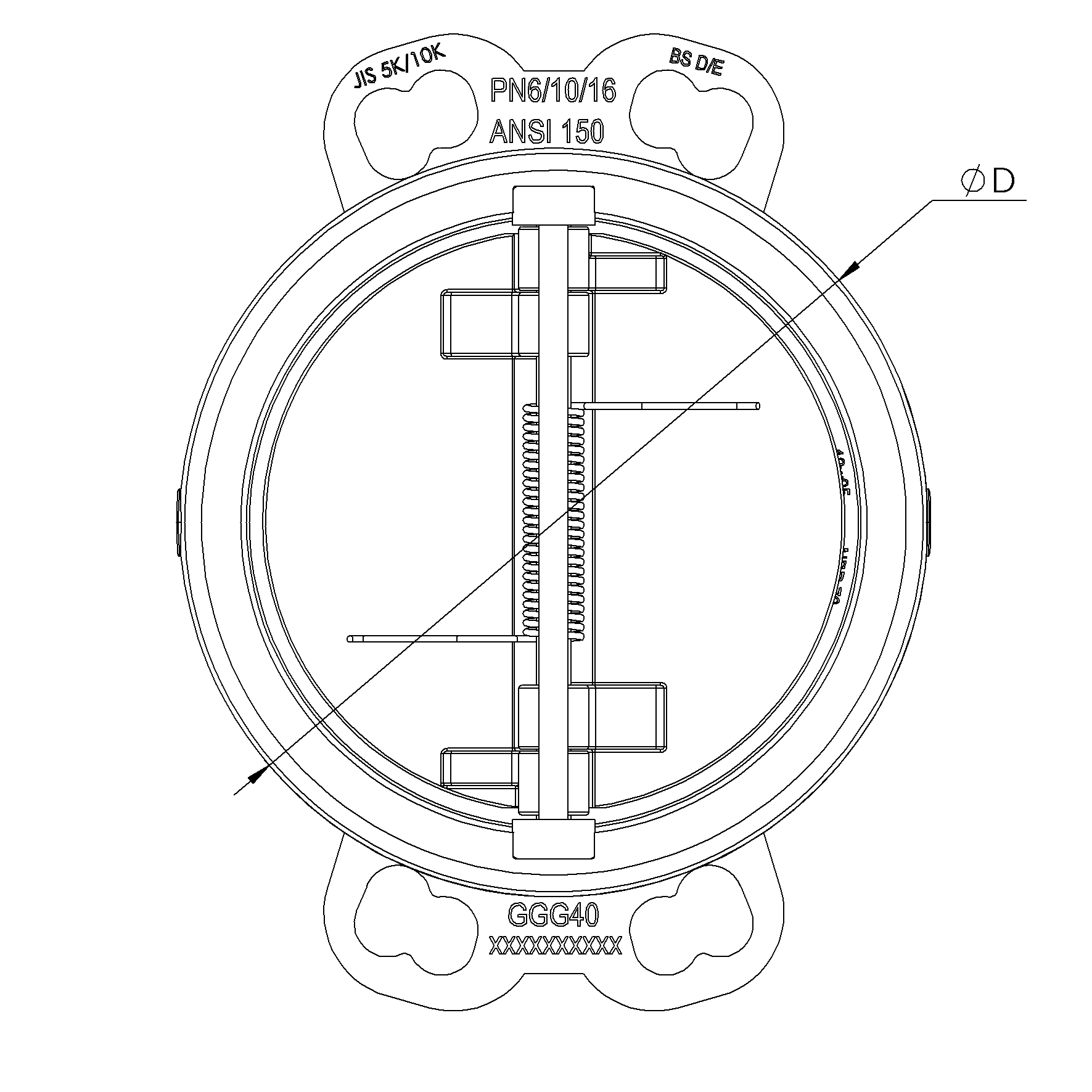

DETAILS
DN Pressure Rating Id Ø D L Kg L1 Ø D1
600 10 670 222 200 170 545
