Dual Plate Check Valve DN50 PN16
Details
Nodular Cast Iron body, EPDM sealing, spring tensioned dual plate check valve with Aluminium Bronze disc.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 315202 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Min temperature | -20°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 50 |
| Material Seat | EPDM |
| Material Disc | Aluminium Bronze |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | 60-00000299 |
| Category | Valve |
| Inspection Standard | API 598 |
| Max temperature | +100°C |
Partslist and details

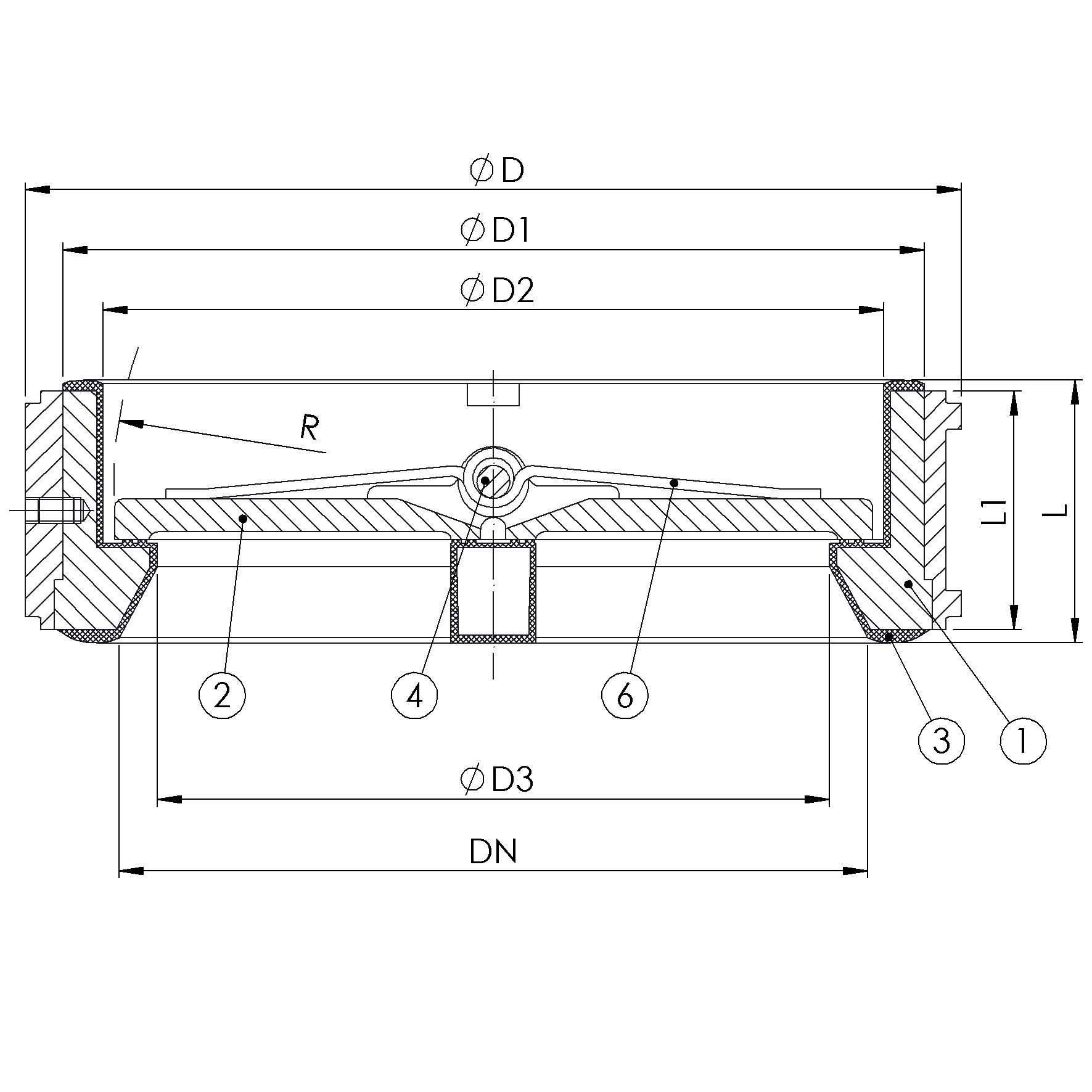

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Disc | Aluminium Bronze | |
| 3 | Seat | EPDM | |
| 4 | Shaft | Stainless Steel | SS 316 |
| 5 | Shaft plug | Stainless Steel | SS 316 |
| 6 | Spring | Stainless Steel | SS 316 |

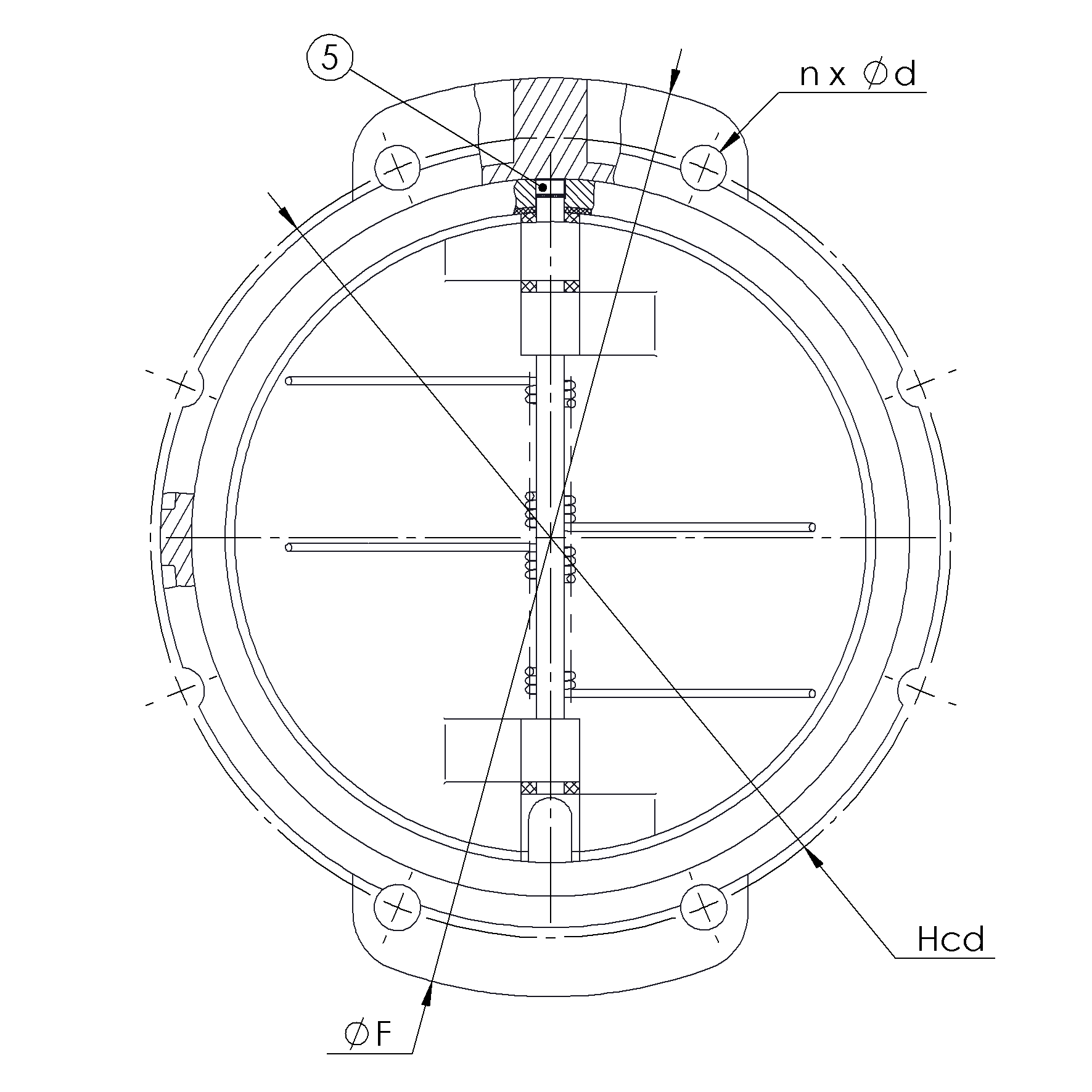

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | Ø D1 | Ø D2 | R | Ø F | Ø D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 16 | 4x19 | 125 | 101 | 54 | 2 | 50 | 84.6 | 66.7 | 29 | 165 | 47.6 |
