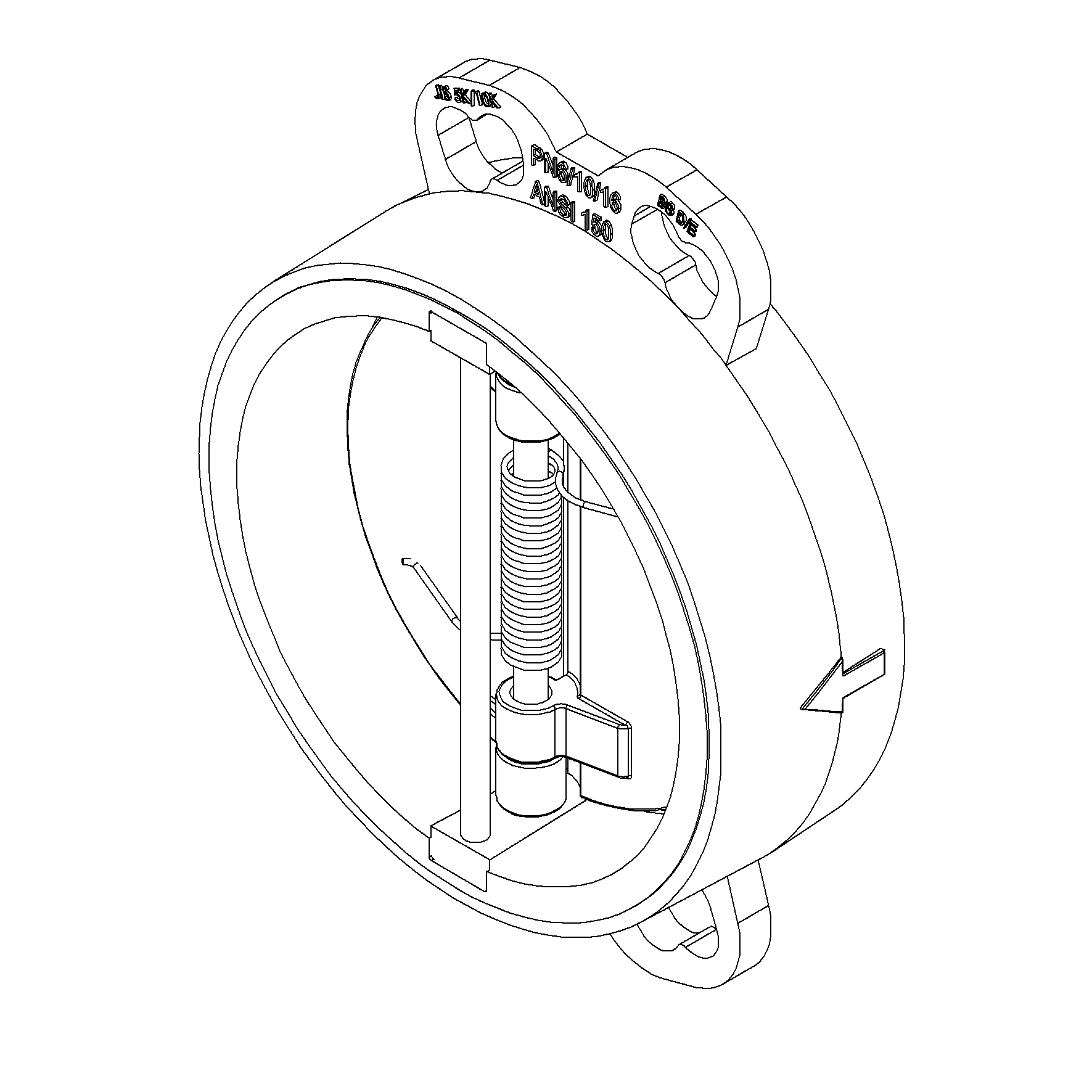

Dual Plate Check Valve DN450 PN10

Wafer type
Item No.
Nodular Cast Iron body, vulcanized injection molded NBR liner dual plate check valve with Aluminium Bronze disc. Opening pressure less than 0,2 bar.
More Information
More Information
Product Group 300701
Remark Multiflange: PN6/10/16, ANSI150, JIS5K/10K
Face To Face Standard EN 558, series 16
Max temperature +80°C
Min temperature -15°C
Throughput Direction Straight
Material Disc Aluminium Bronze
End Type Wafer
Standard DIN
Application Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 450
Material Seat NBR
Material Body Nodular Cast Iron, GGG40
Sub Category CHECK
Item Number M33594
Category Valve
Pressure Rating PN10

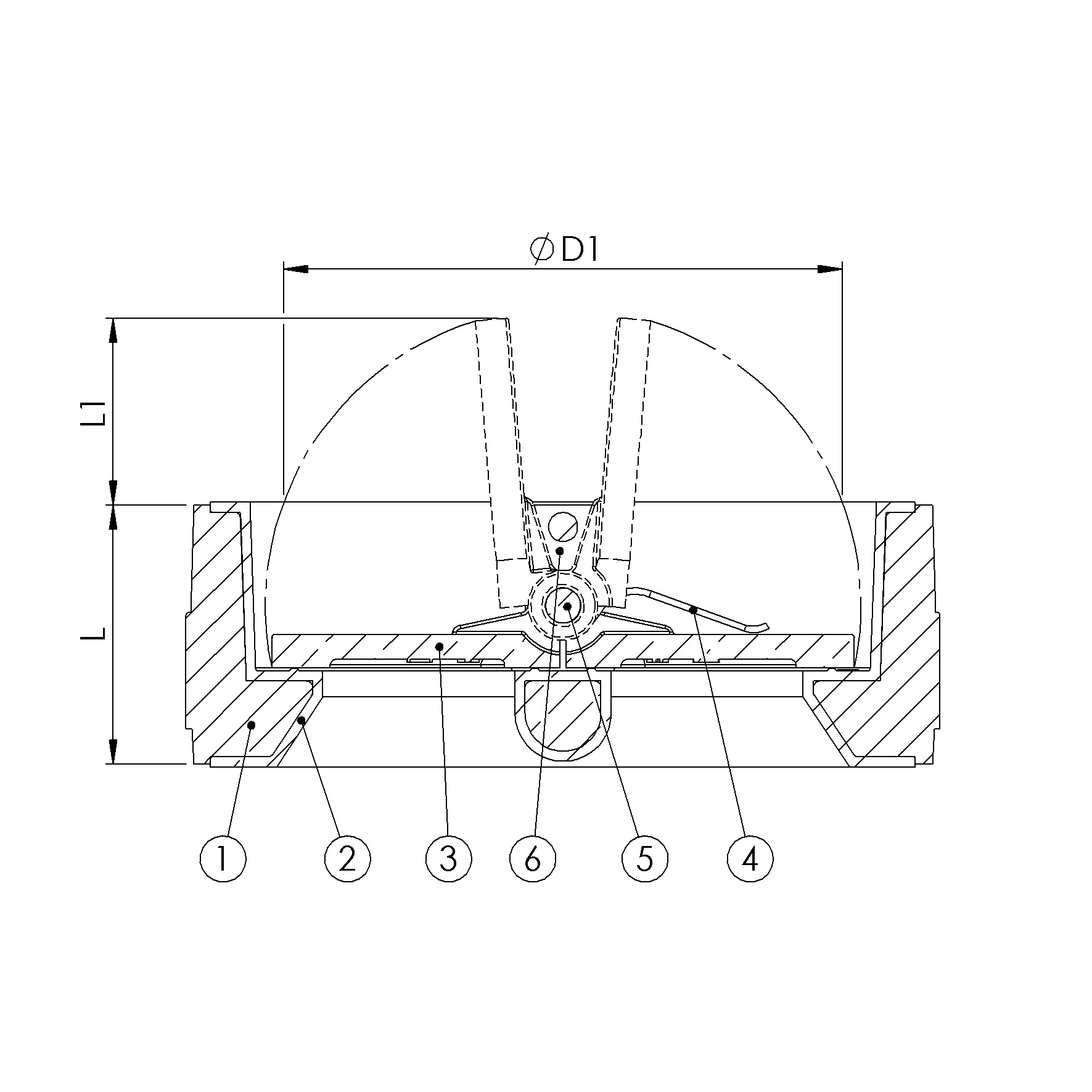

Partslist and details
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat NBR
3 Disc Aluminium Bronze
4 Spring Inconel
5 Shaft Monel
6 Clips Aluminium Bronze

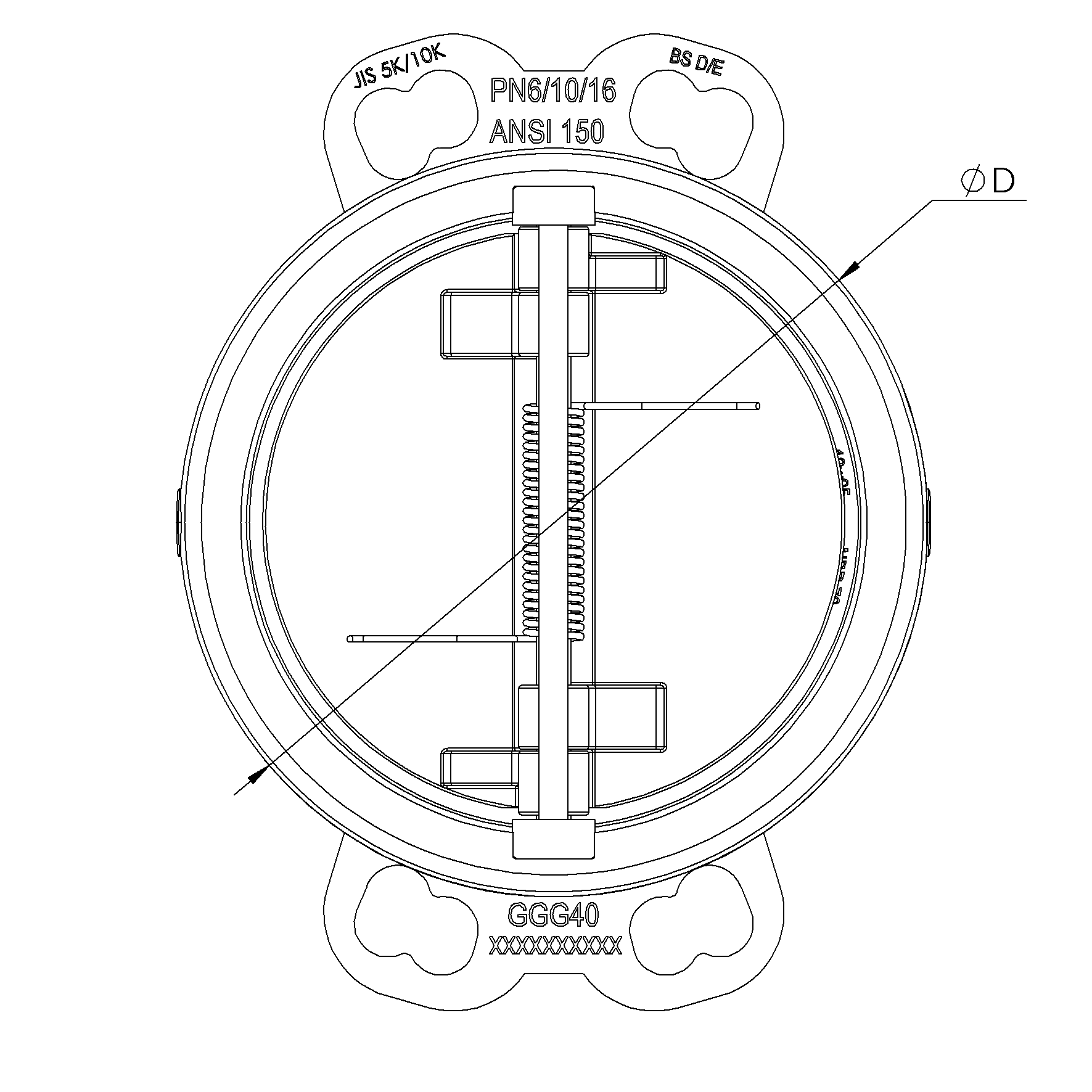

DN Pressure Rating Id Ø D L Kg L1 Ø D1
450 10 509 152 82 135 425
