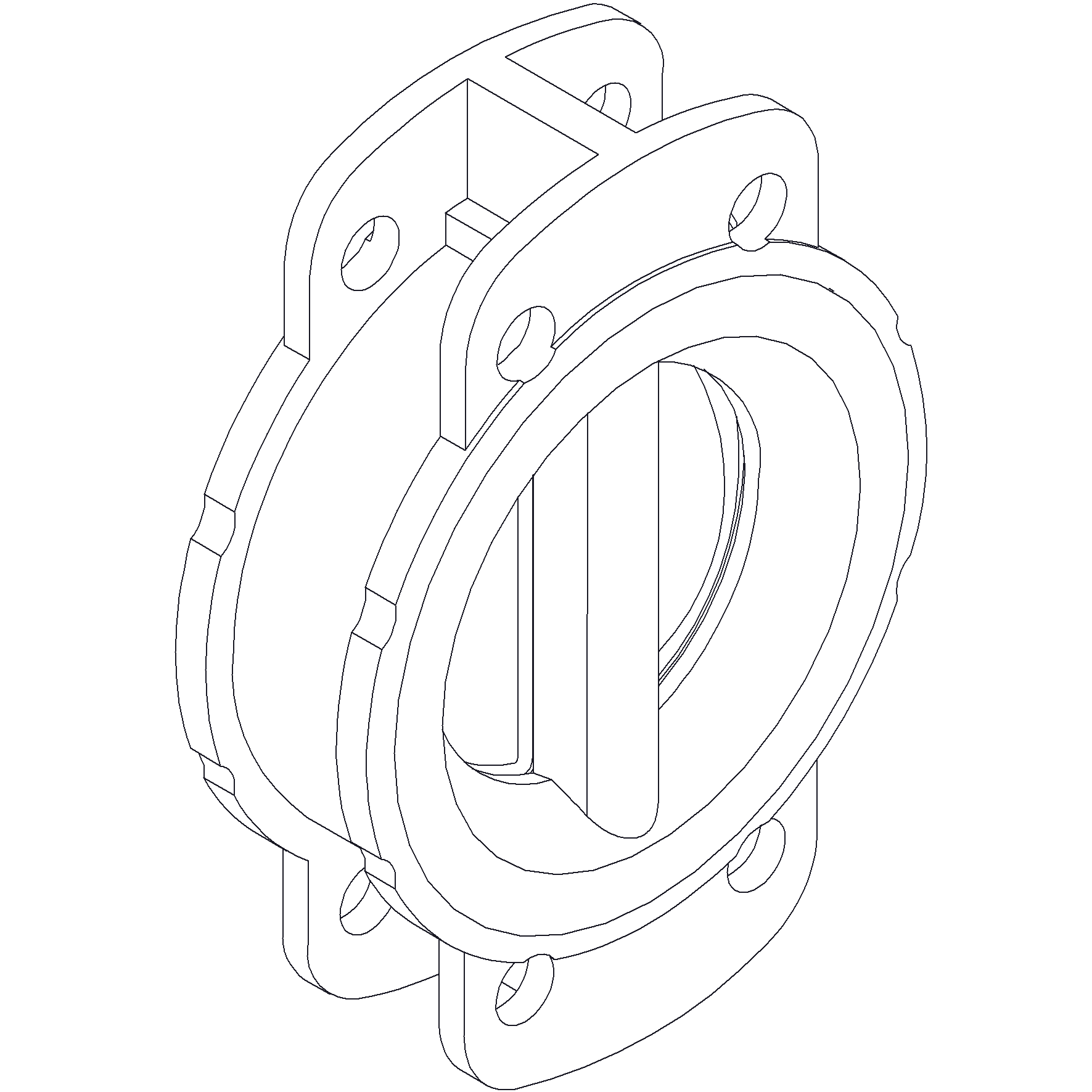

Dual Plate Check Valve DN300 PN10

Wafer type with mounting loops
Item No.
60-00000293
Details
Nodular Cast Iron body, EPDM sealing, spring tensioned dual plate check valve with Aluminium Bronze disc.
More Information
More Information
Price View Price Range
Product Group 315201
Material Body Nodular Cast Iron, GGG40.3
Min temperature -20°C
Remark Connection: PN10
Throughput Direction Straight
End Standard EN 1092-2
Standard DIN
Application Boiler feedwater, Condensate, Sea water, Water
Size 300
Material Seat EPDM
Material Disc Aluminium Bronze
Pressure Rating PN10
End Type Wafer
Sub Category CHECK
Item Number 60-00000293
Category Valve
Inspection Standard API 598
Max temperature +100°C

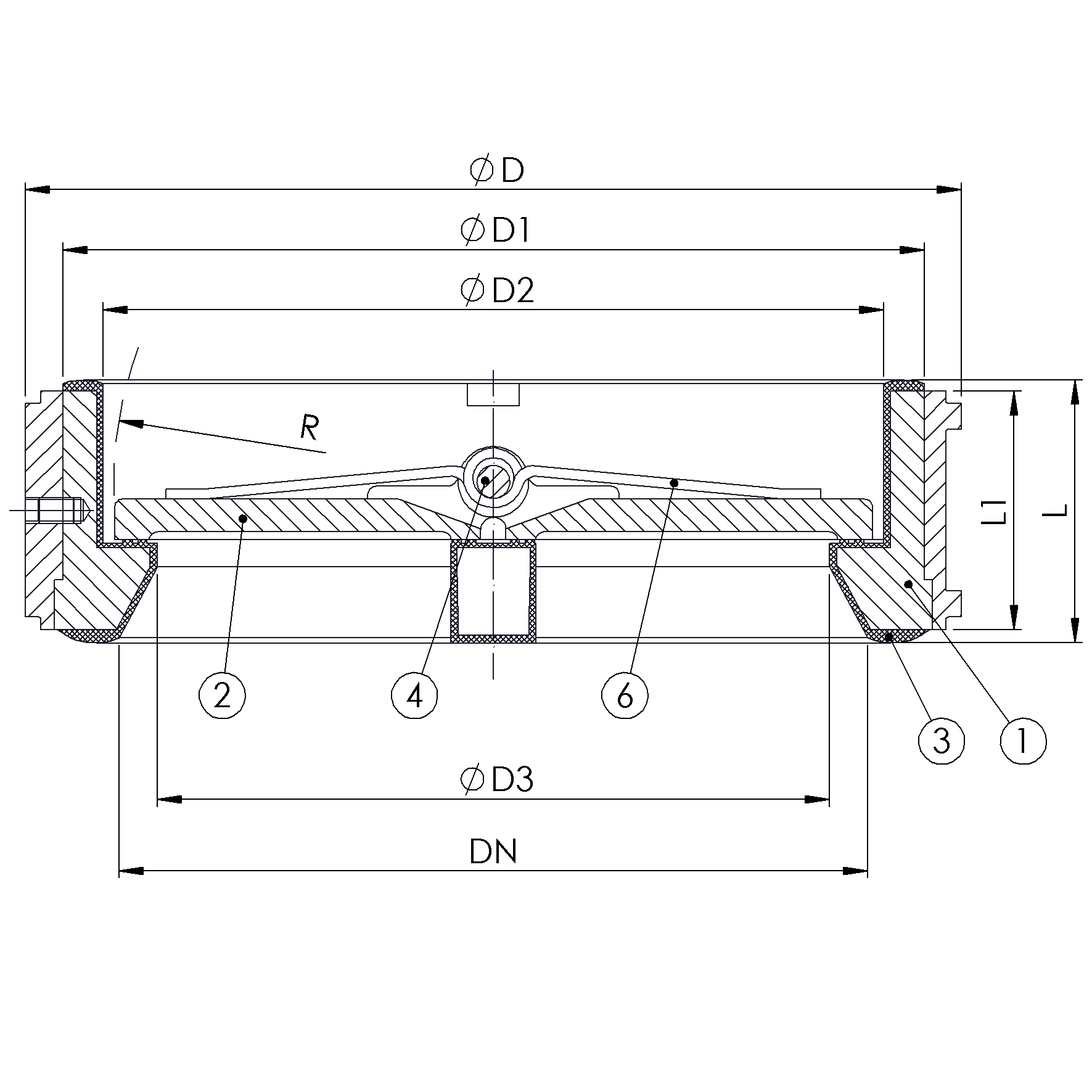

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Disc Aluminium Bronze
3 Seat EPDM
4 Shaft Stainless Steel SS 316
5 Shaft plug Stainless Steel SS 316
6 Spring Stainless Steel SS 316



DETAILS

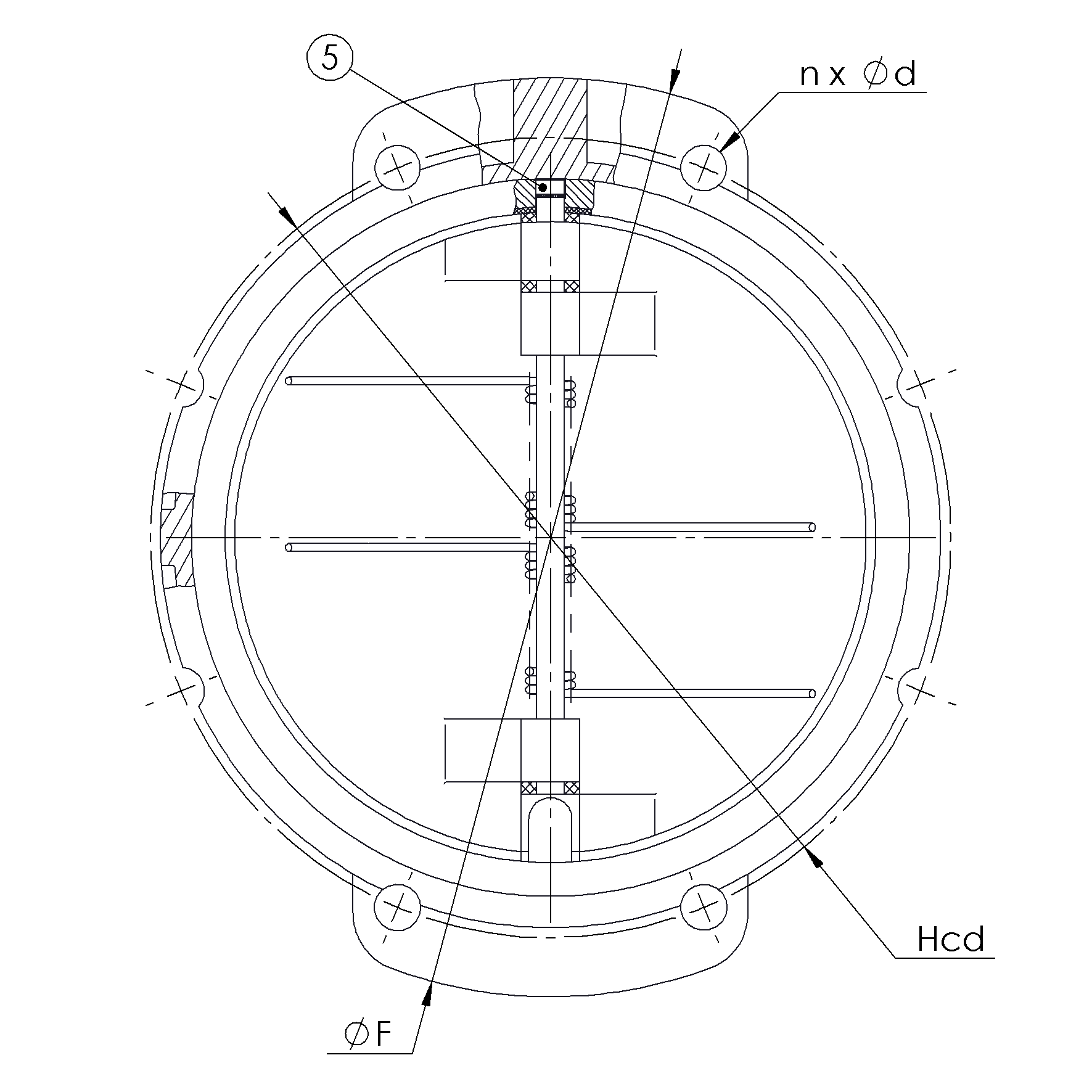

DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 Ø D1 Ø D2 R Ø F Ø D3
300 10 12x23 400 403 130.2 40.4 125 365.6 327 148 497 274.6
