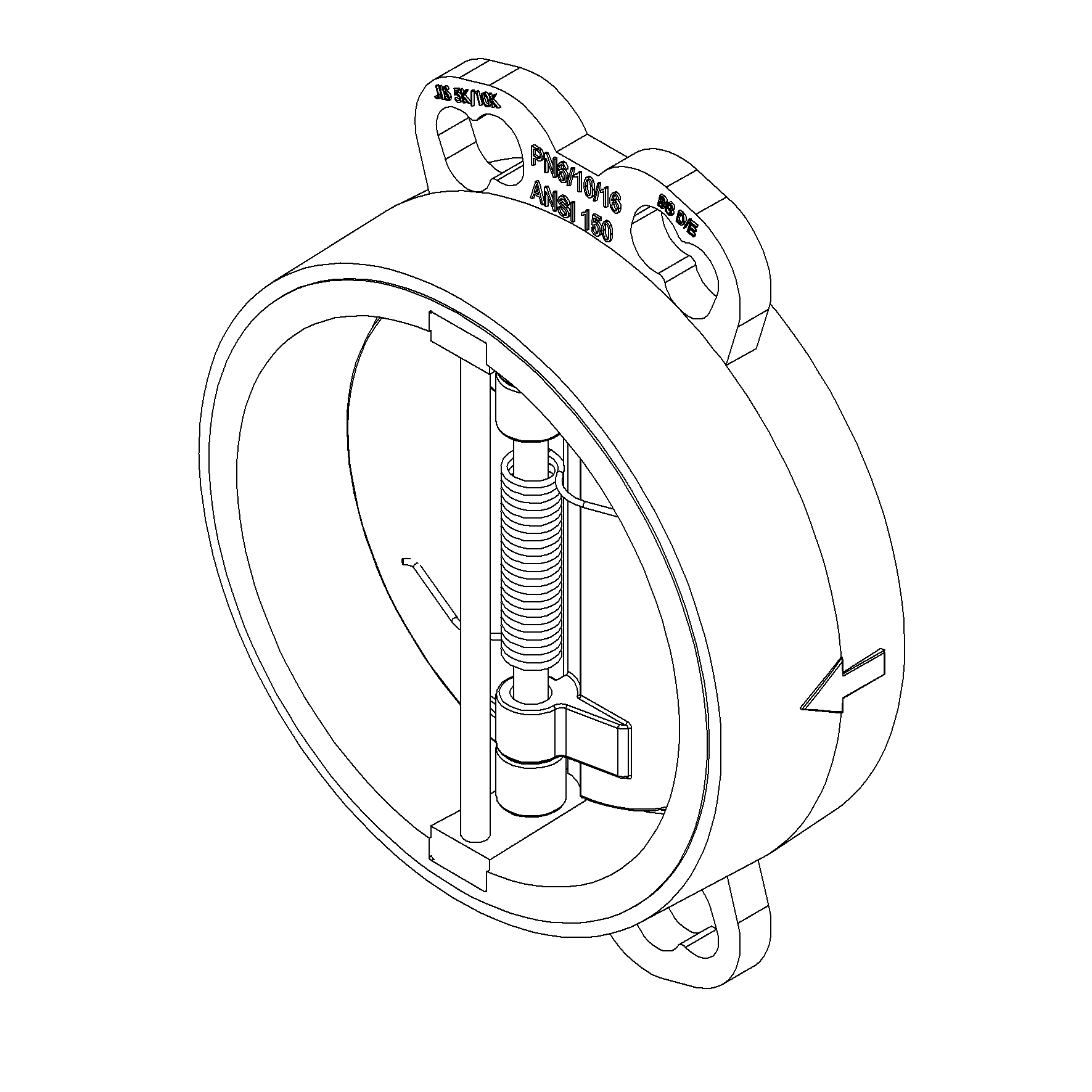

Dual Plate Check Valve DN100 PN16
Details
Nodular Cast Iron body, vulcanized injection molded FPM/FKM liner dual plate check valve with Aluminium Bronze disc. Opening pressure less than 0,2 bar.
More Information
Price View | Price Range |
---|---|
Product Group | 302702 |
Material Body | Nodular Cast Iron, GGG40 |
Min temperature | -30°C |
Remark | Multiflange: PN6/10/16, ANSI150, JIS5K/10K |
Throughput Direction | Straight |
Face To Face Standard | EN 558, series 16 |
Standard | DIN |
Application | Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid |
Size | 100 |
Material Seat | FPM/FKM |
Material Disc | Aluminium Bronze |
Pressure Rating | PN16 |
End Type | Wafer |
Sub Category | CHECK |
Item Number | M33634 |
Category | Valve |
Max temperature | +180°C |
Partslist and details

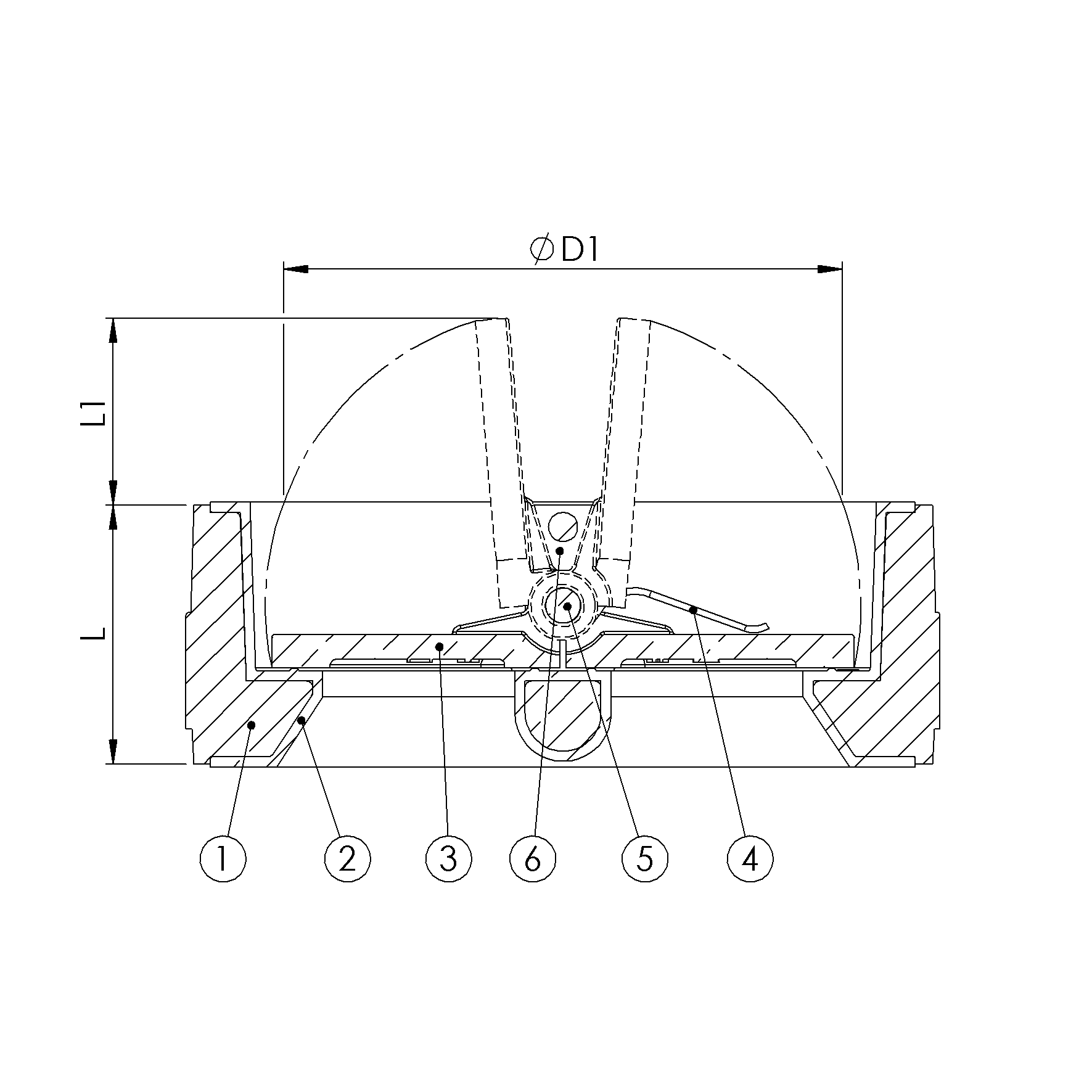

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Nodular Cast Iron | GGG40 |
2 | Seat | FPM/FKM | |
3 | Disc | Aluminium Bronze | |
4 | Spring | Inconel | |
5 | Shaft | Monel | |
6 | Clips | Aluminium Bronze |
DETAILS

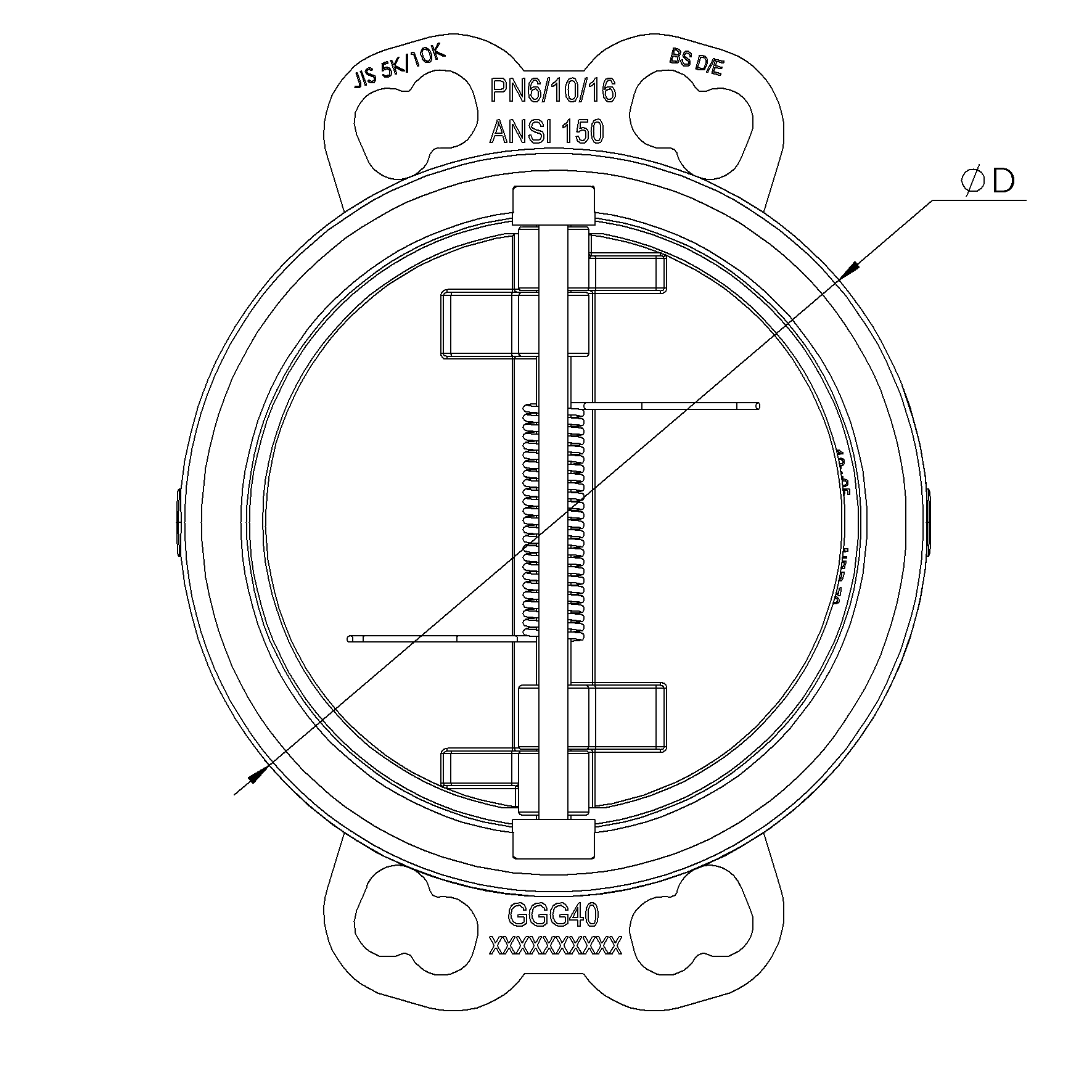

DN | Pressure Rating Id | Ø D | L | Kg | L1 | Ø D1 |
---|---|---|---|---|---|---|
100 | 16 | 144 | 64 | 4.6 | 21 | 86 |
