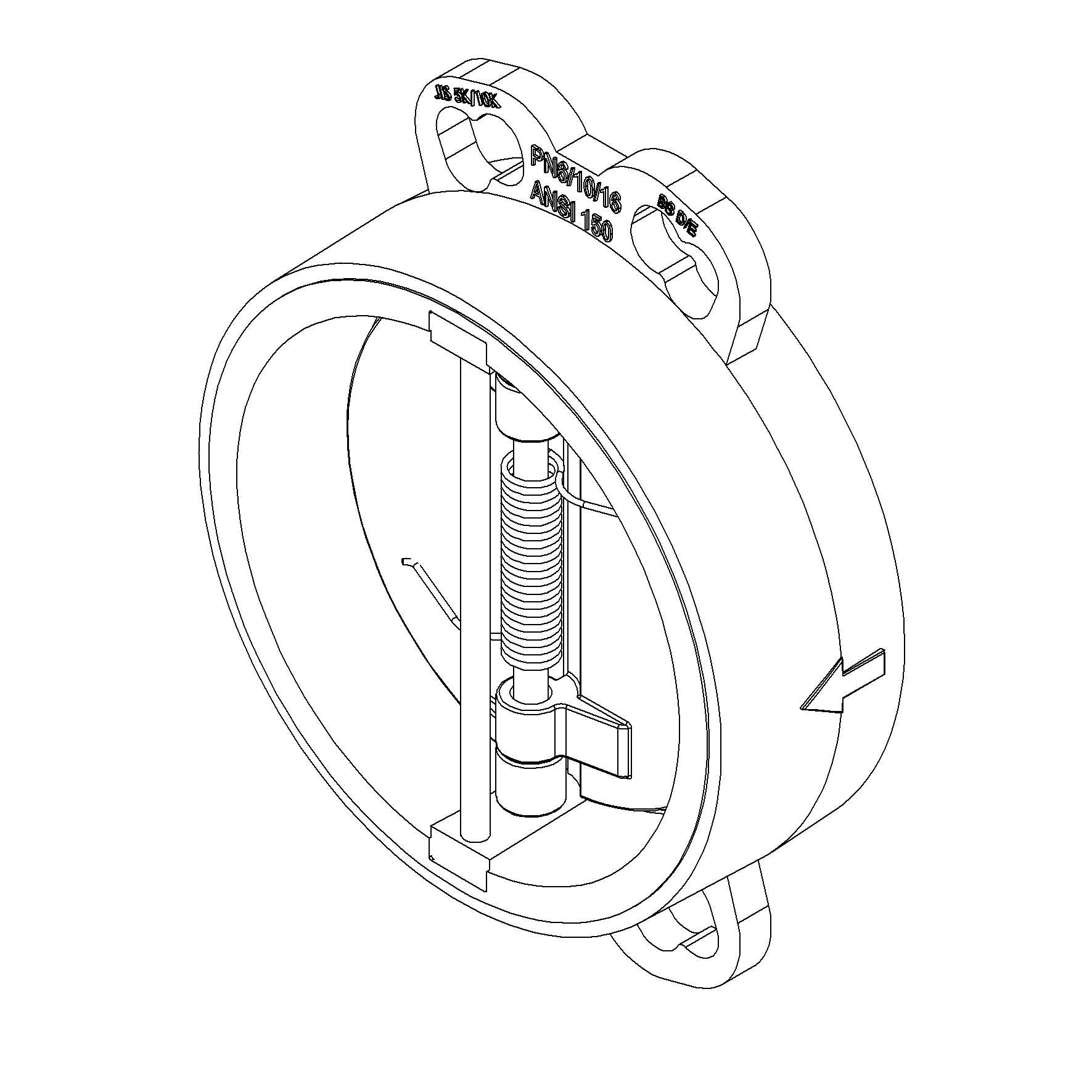

Dual Check Valve DN65 PN16

Wafer type
Item No.
60-00000940
Details
Nodular Cast Iron body, vulcanized injection molded EPDM liner dual plate check valve with Super Duplex disc. Opening pressure less than 0,2 bar.
More Information
More Information
Price View Price Range
Product Group 301802
Material Body Nodular Cast Iron, GGG40
Min temperature -20°C
Remark Multiflange: PN6/10/16, ANSI150, JIS5K/10K
Throughput Direction Straight
Face To Face Standard EN 558, series 16
Standard DIN
Application Boiler feedwater, Condensate, Sea water, Water
Size 65
Material Seat EPDM
Material Disc Stainless Steel, Super Duplex
Pressure Rating PN16
End Type Wafer
Sub Category CHECK
Item Number 60-00000940
Category Valve
Max temperature +100°C
Partslist and details

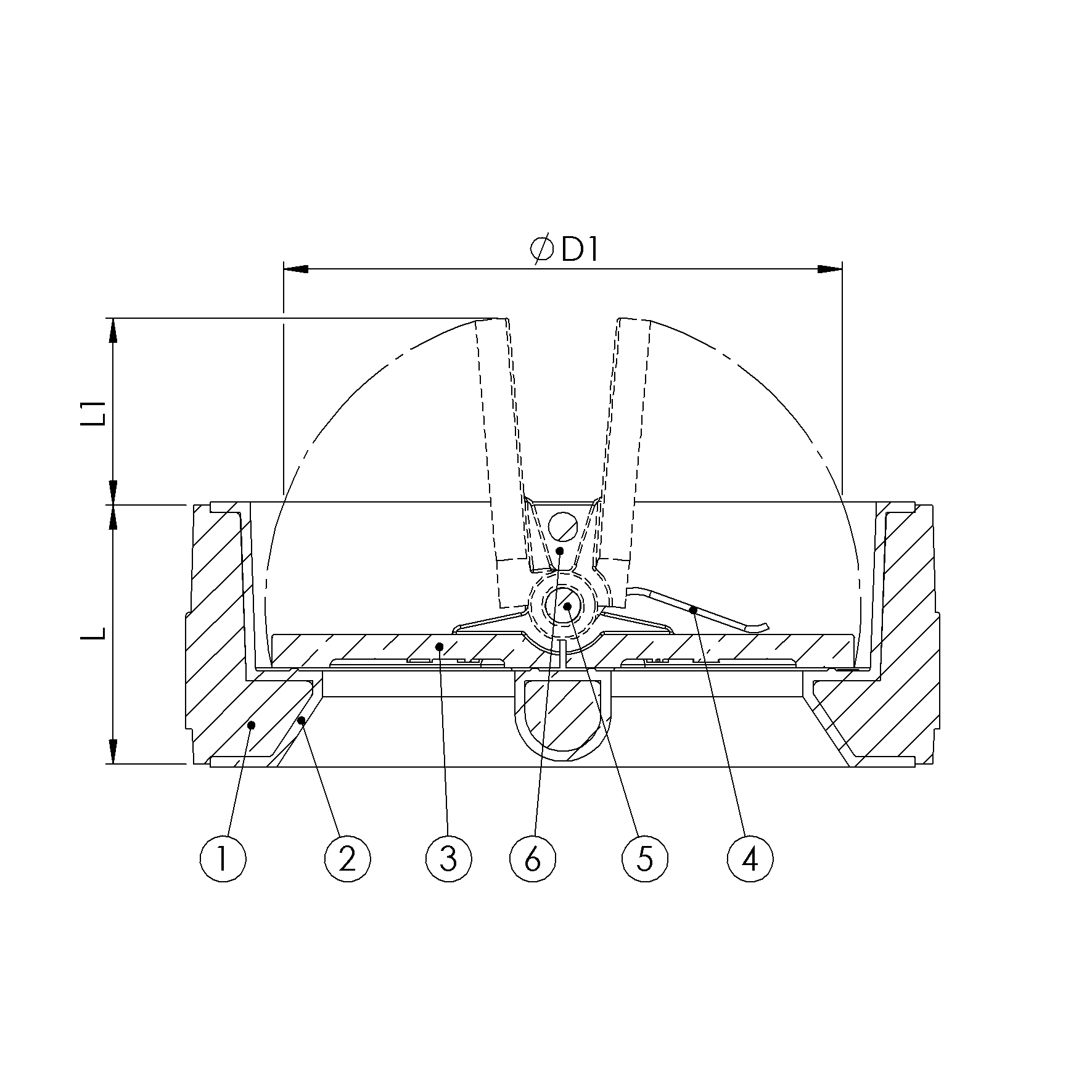

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat EPDM
3 Disc Super Duplex Stainless Steel 1.4469
4 Spring Inconel
5 Shaft Monel
6 Clips Super Duplex Stainless Steel 1.4469



DETAILS

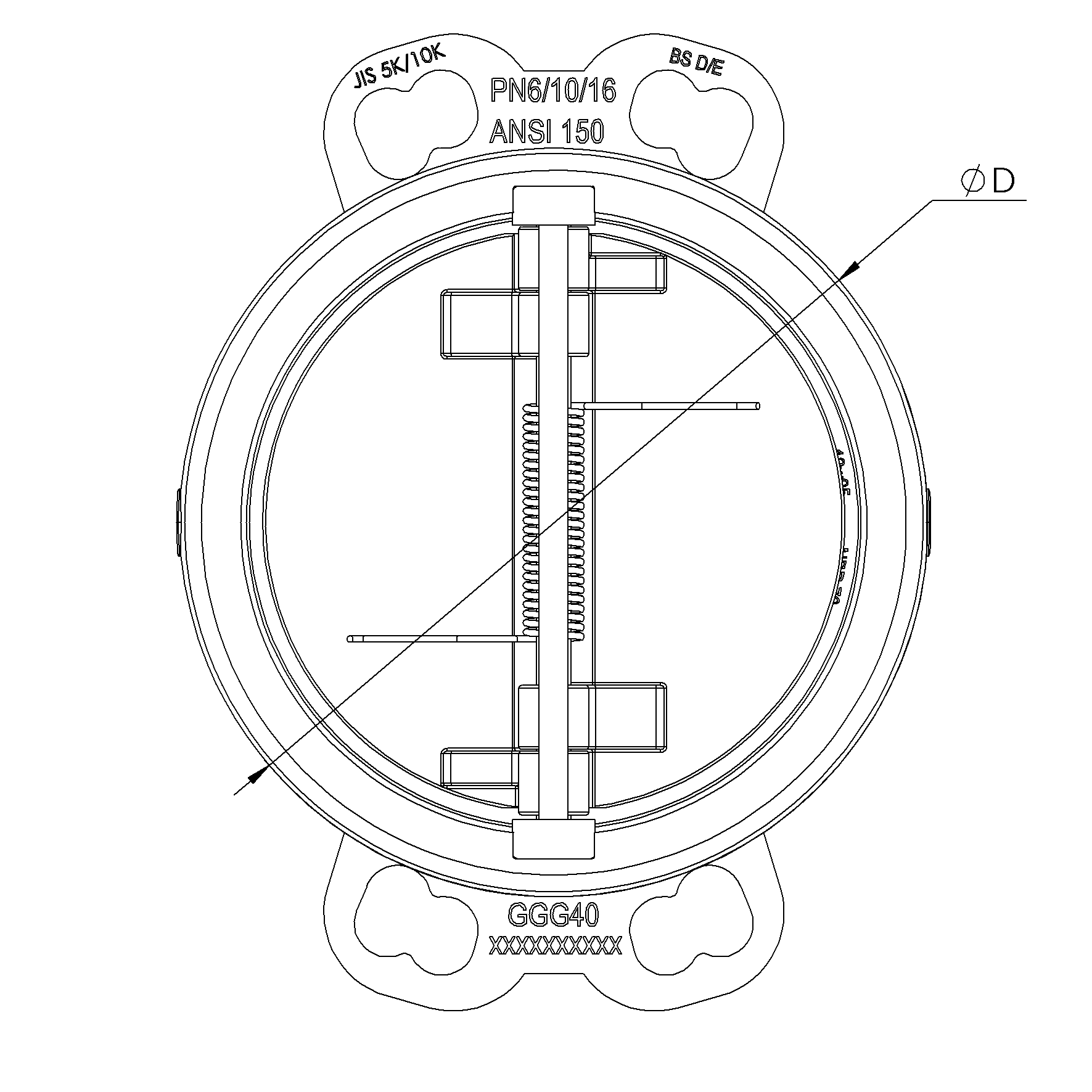

DN Pressure Rating Id Ø D L Kg L1 Ø D1
65 16 115 46 2.6 14 58
