Dual Check Valve DN450 PN10

Wafer type
Item No.
60-00000950
Details

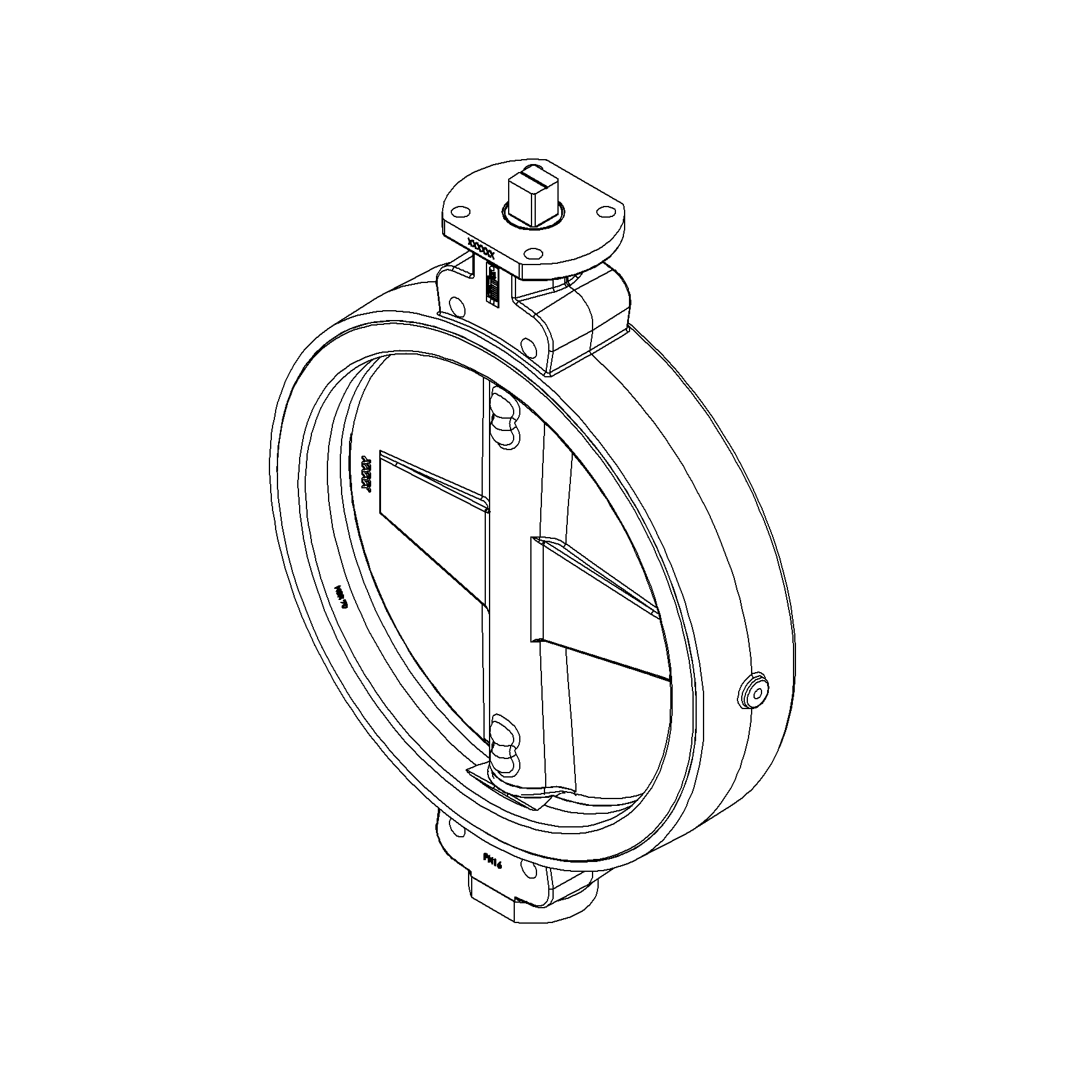

Nodular Cast Iron body, vulcanized injection molded EPDM liner dual plate check valve with Super Duplex disc. Opening pressure less than 0,2 bar.
More Information
More Information
Price ViewPrice Range
Product Group301801
Size450
Sub CategoryNAVY
Item Number60-00000950
CategoryValve
Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat EPDM -
3 Disc Super Duplex Stainless Steel 1.4469
4 Spring Inconel -
5 Shaft Monel -
6 Clips Super Duplex Stainless Steel 1.4469


DETAILS
DN Pressure Rating Id Ø D L Kg L1 Ø D1
450 10 509 152 82 135 425
