Dual Check Valve DN400 PN10

Wafer type
Item No.
60-00000949
Details
Nodular Cast Iron body, vulcanized injection molded EPDM liner dual plate check valve with Super Duplex disc. Opening pressure less than 0,2 bar.
More Information
More Information
Price ViewPrice Range
Product Group301801
Size400
Sub CategoryNAVY
Item Number60-00000949
CategoryValve
Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat EPDM -
3 Disc Super Duplex Stainless Steel 1.4469
4 Spring Inconel -
5 Shaft Monel -
6 Clips Super Duplex Stainless Stell 1.4469

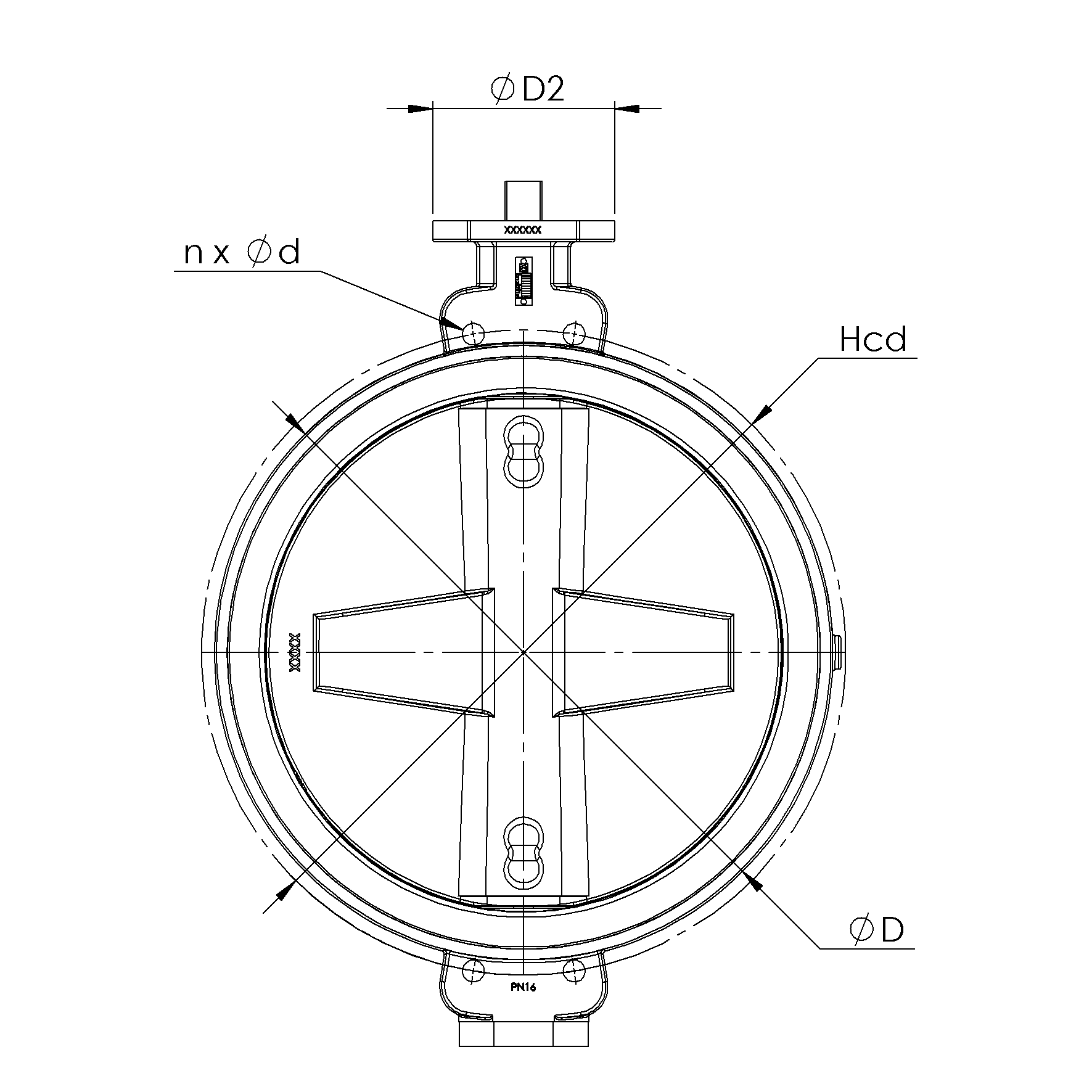

DETAILS
DN Pressure Rating Id Ø D L Kg L1 Ø D1
400 10 472 140 53 125 370
