Disc Check Valve DN65 PN40
Details
Wafer type, Stainless Steel body, spring tensioned disc check valve with metal sealing.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 473094 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -20°C |
| Throughput Direction | Straight |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 65 |
| Material Disc | Stainless Steel, 304 |
| Pressure Rating | PN40 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | 60-00000788 |
| Category | Valve |
| Max temperature | +180°C |

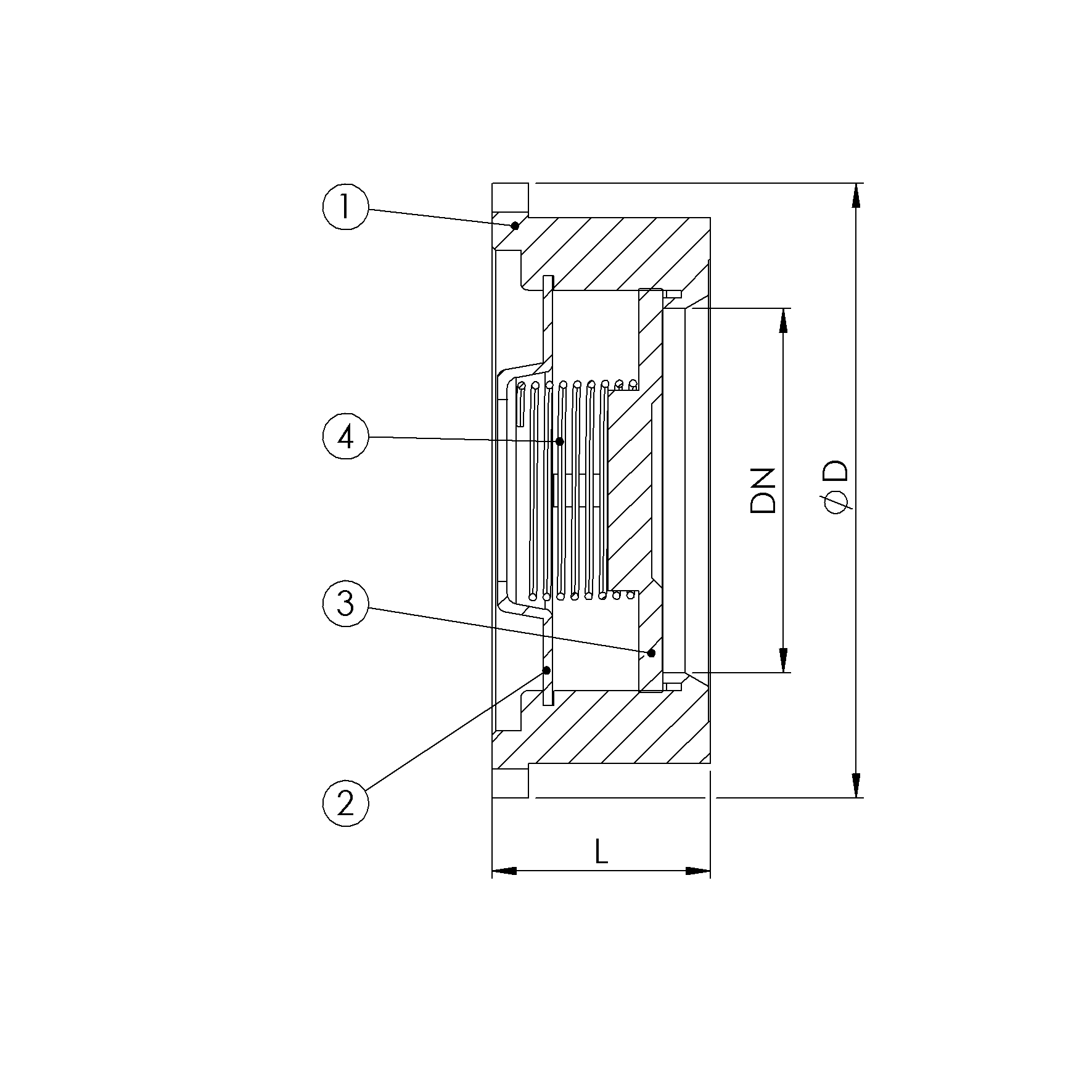

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | AISI 316 |
| 2 | Cap | Stainless Steel | AISI 304 |
| 3 | Disc | Stainless Steel | AISI 304 |
| 4 | Spring | Stainless Steel | AISI 304 |

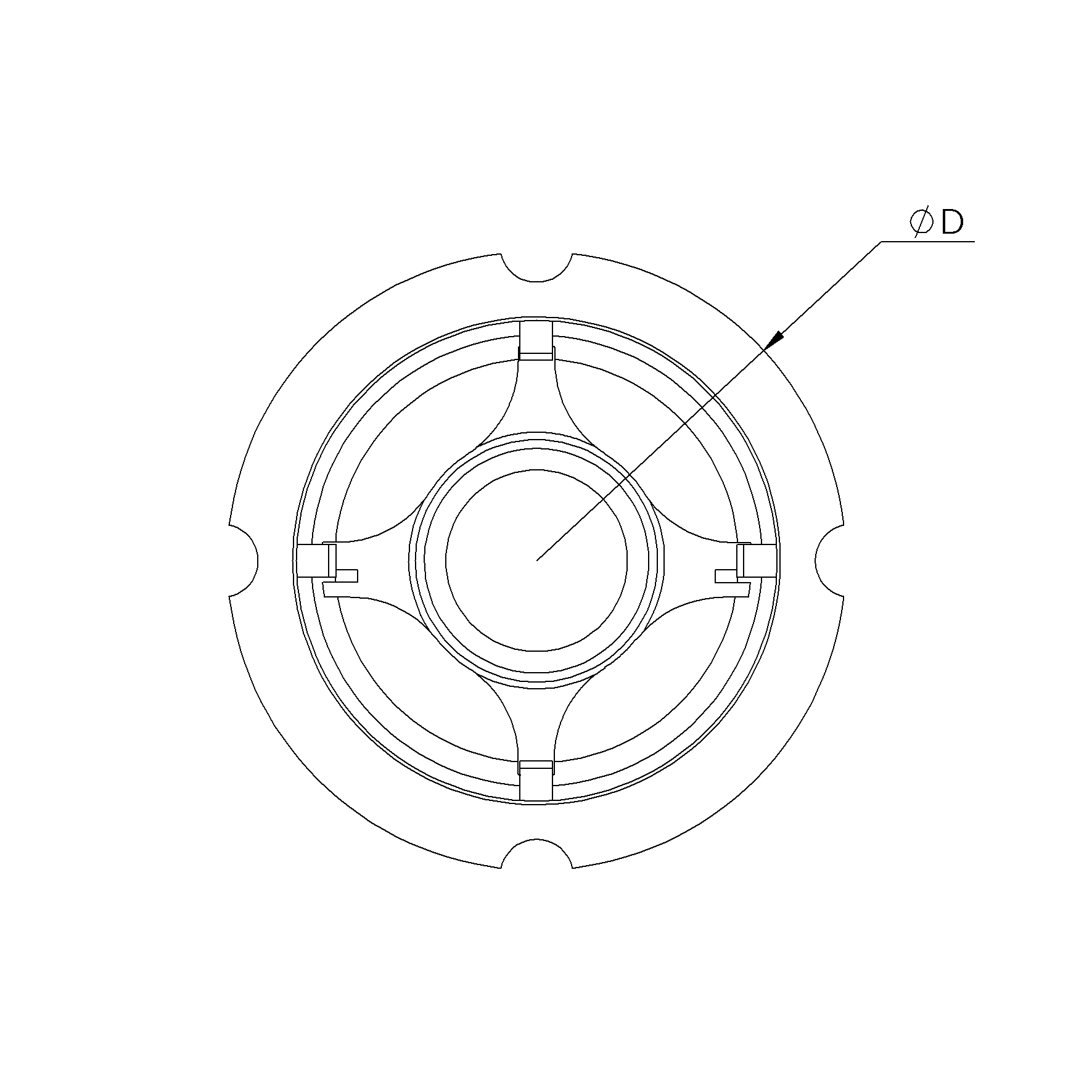

DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg |
|---|---|---|---|---|
| 65 | 40 | 126 | 46 | 1.6 |
