Disc Check Valve DN125 PN25

Wafer type
Item No.
60-00000720
Details
Wafer type, Stainless Steel body, spring tensioned disc check valve with metal sealing.
More Information
More Information
Price View Price Range
Product Group 473093
Material Body Stainless Steel, 316
Throughput Direction Straight
Face To Face Standard EN 558, series 49
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 125
Material Disc Stainless Steel, 316
Pressure Rating PN25
End Type Wafer
Sub Category CHECK
Item Number 60-00000720
Category Valve

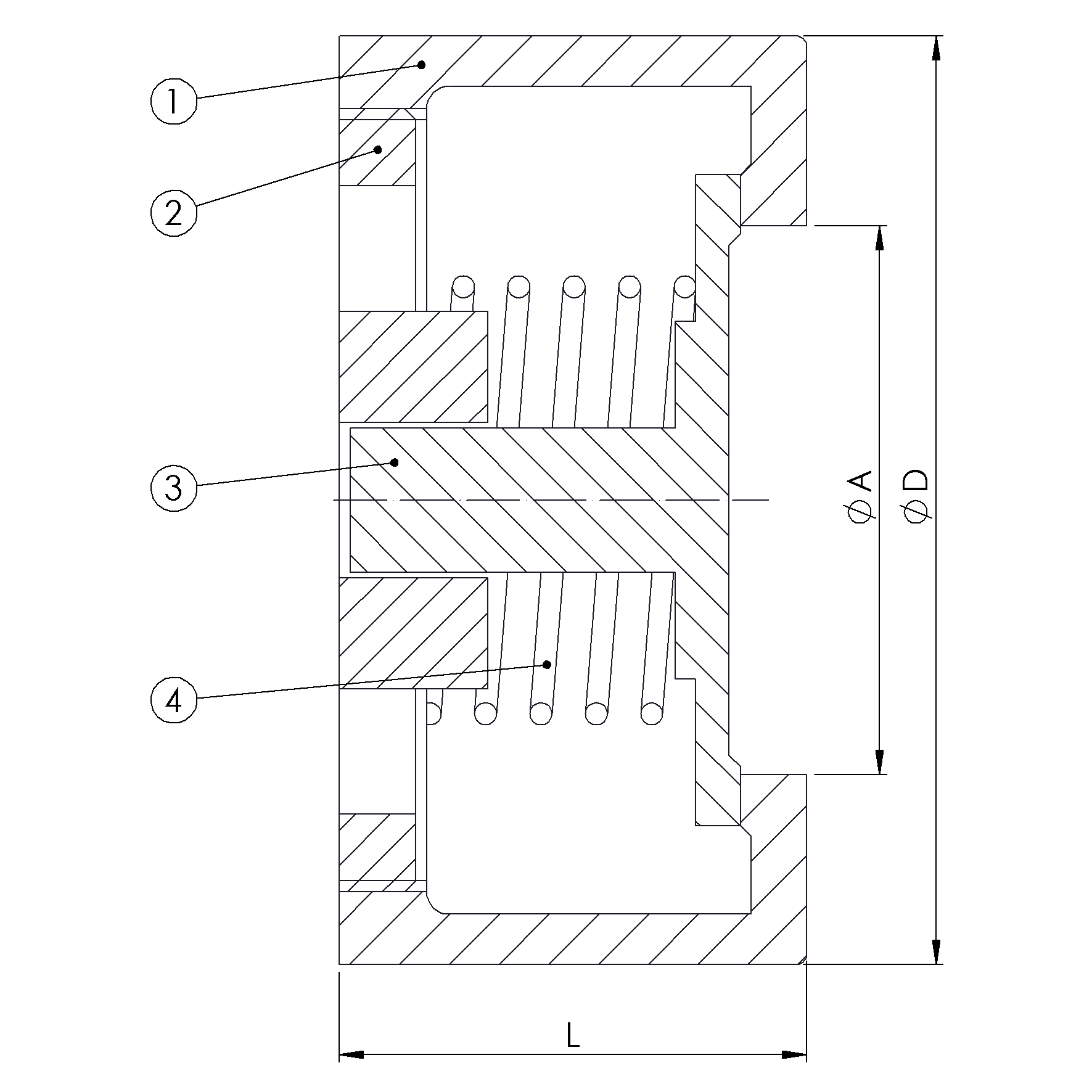

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel 1.4408
2 Cap Stainless Steel 1.4408
3 Disc Stainless Steel 1.4408
4 Spring Stainless Steel SS316


DETAILS
DN Pressure Rating Id Ø D L Kg Ø A
125 25 190 90 7.4 105
