Butterfly Valve W DN400 PN16

Wafer type - with gearbox
Item No.
M96349
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 700902
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Multiflange: PN10, PN16, ANSI150
Face To Face Standard EN 558, series 20
End Standard EN 1092-2
Design Code EN 593
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 400
Material Seat NBR
Material Disc Stainless Steel, 316
Pressure Rating PN16
End Type Wafer
Sub Category BUTTERFLY
Item Number M96349
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F12
Variant Gearbox
Max temperature + 80°C
Partslist and details

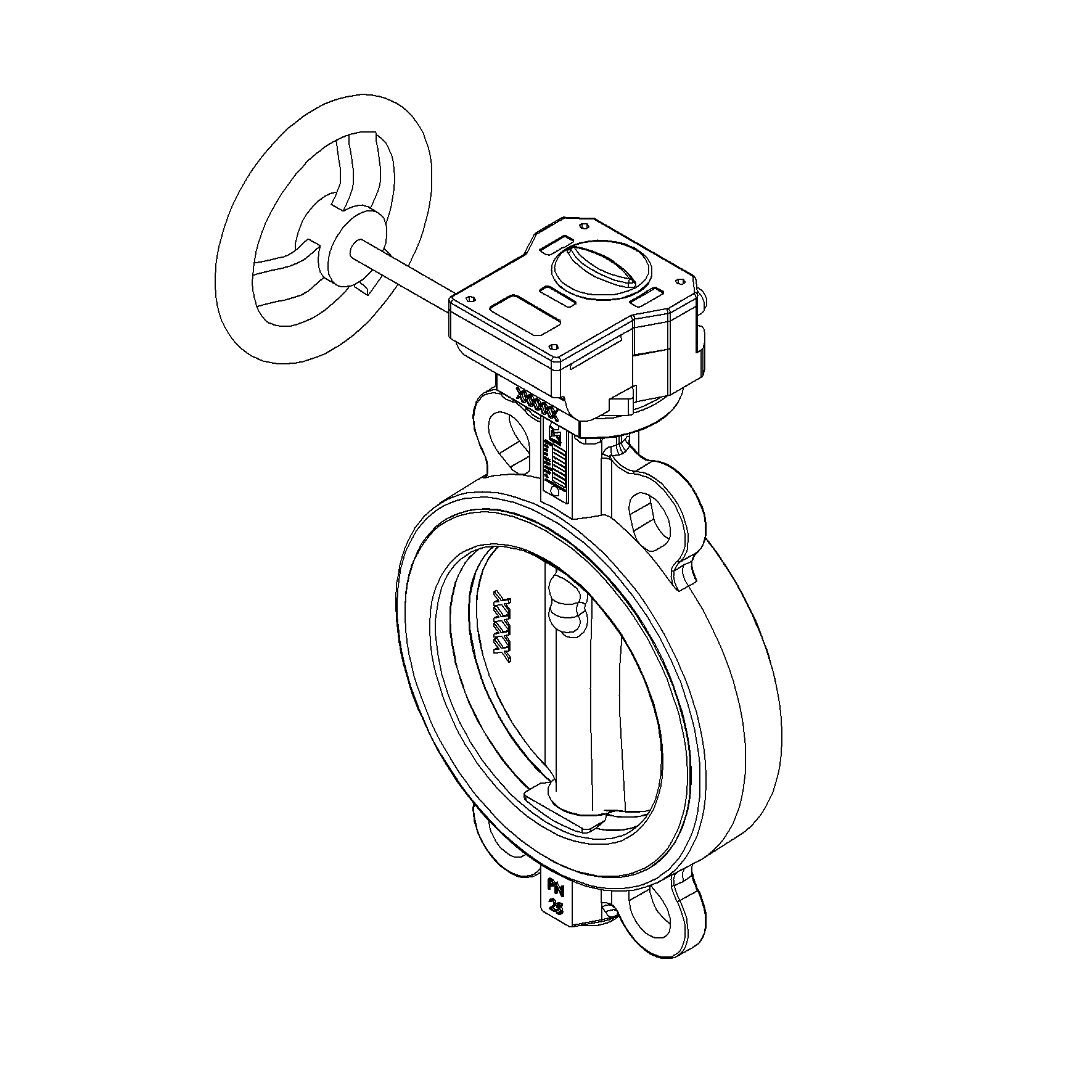

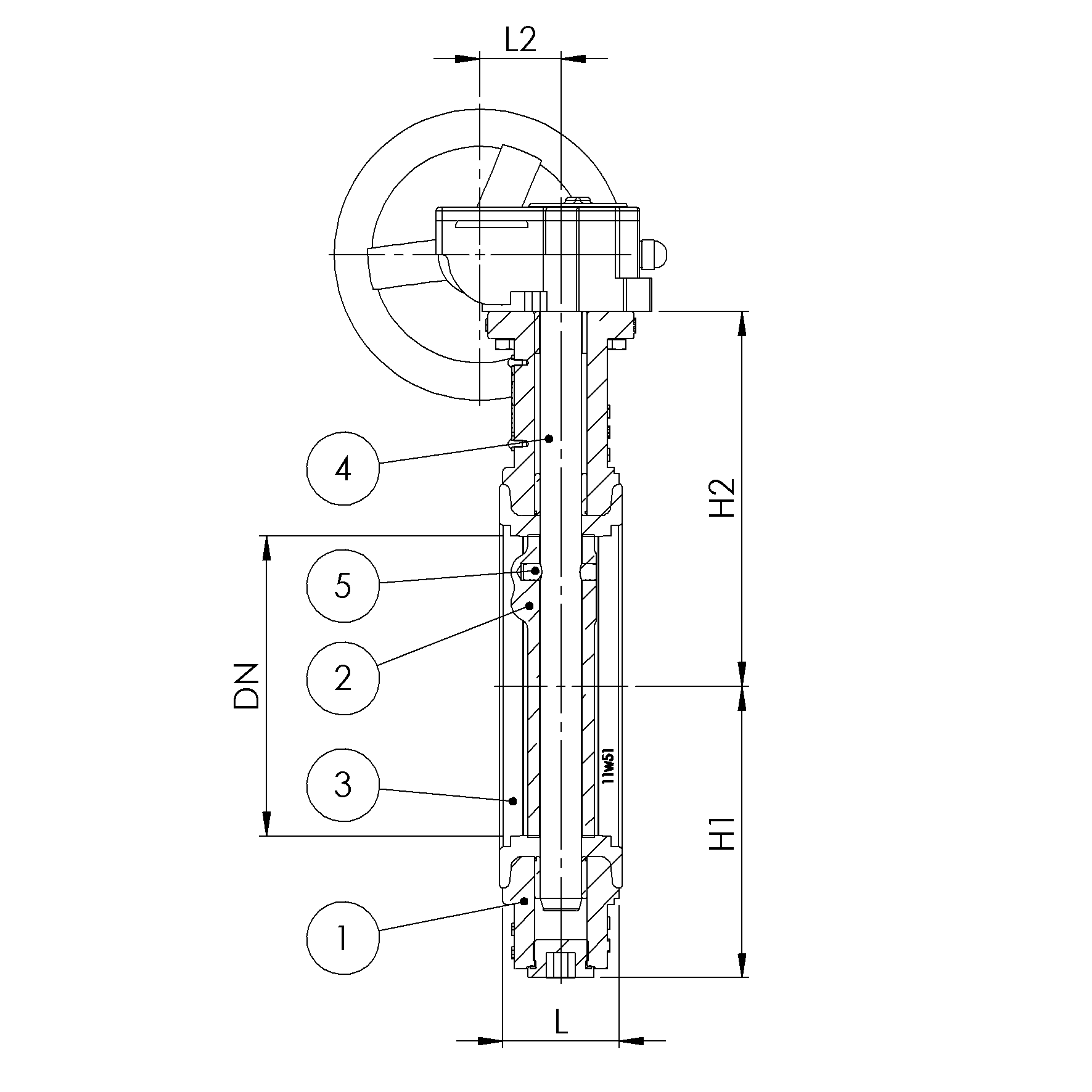

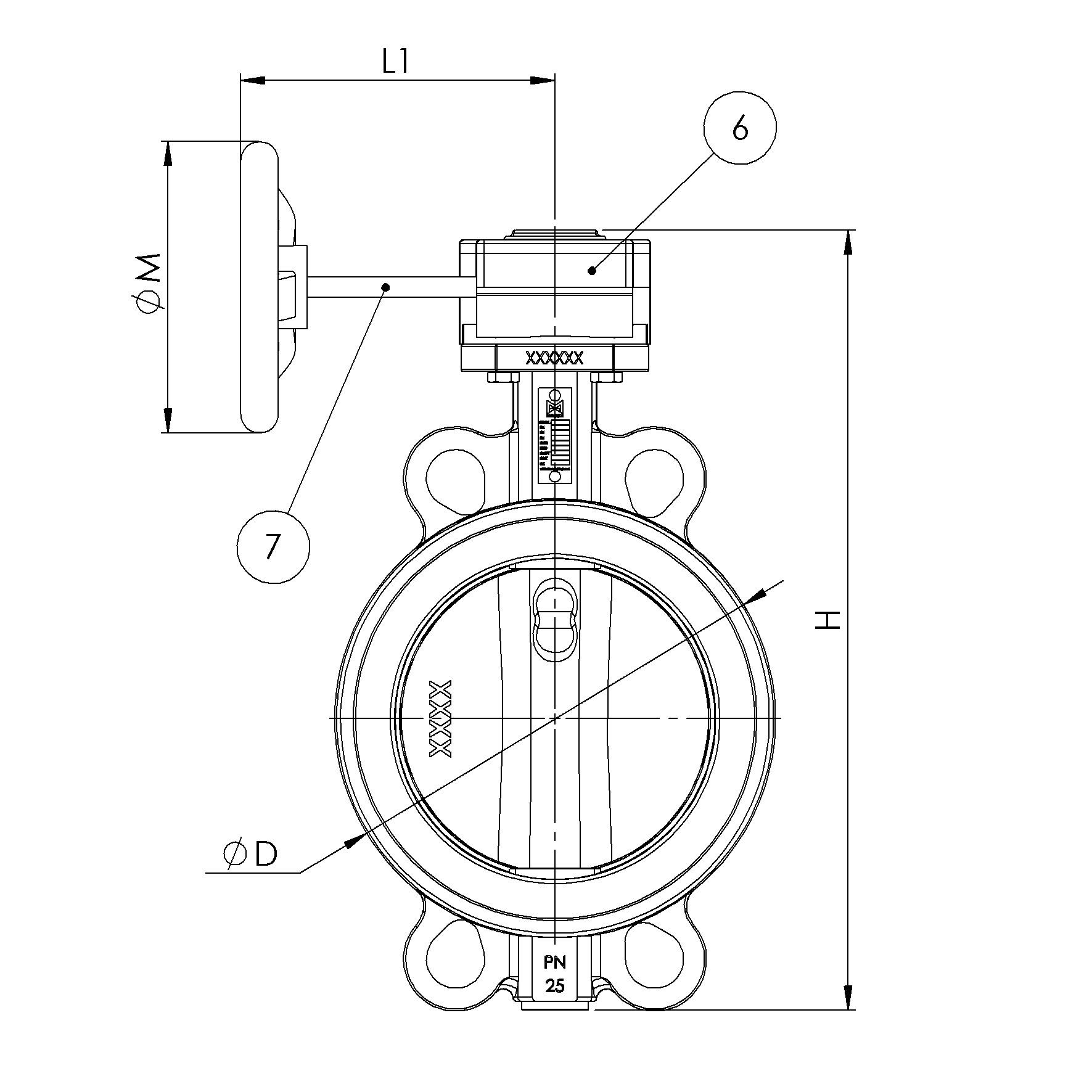

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Stainless Steel 1.4408
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4057
5 Pin Duplex Stainless Steel 1.4462
6 Gearbox Cast Iron GG20
7 Gearbox shaft Steel C45



DETAILS
DN Pressure Rating Id Ø D L Kg L1 H H1 L2 H2 Ø M
400 16 492 102 91 287 755 305 101 350 400
