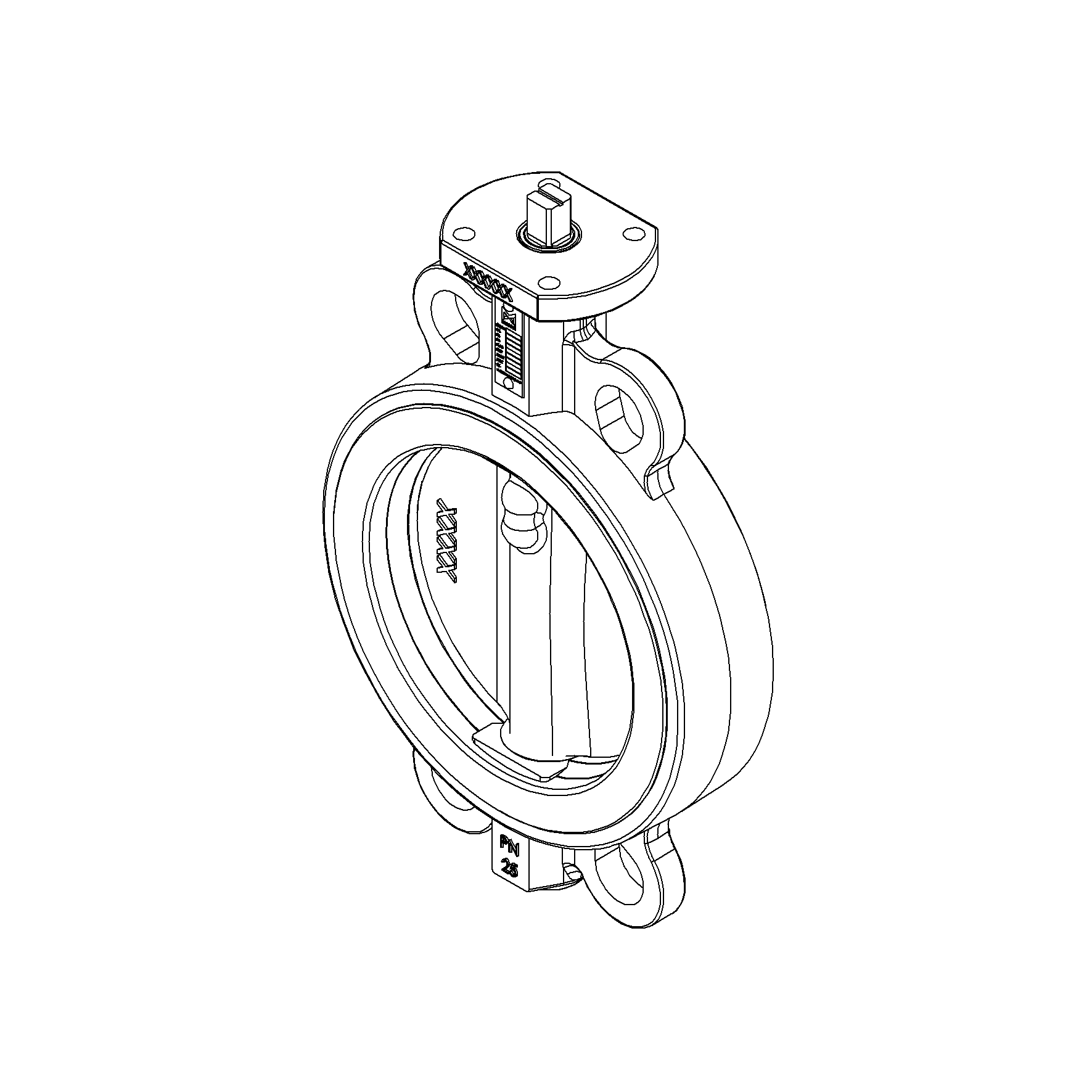

Butterfly Valve W DN400 PN10

Wafer type - bare stem
Item No.
40-00002358
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 701801
Material Body Nodular Cast Iron, GGG40
Min temperature -20°C
Remark Multiflange: PN10/16, ANSI150
Face To Face Standard EN 558, series 20
End Standard EN 1092-2
Design Code EN 593
Standard DIN
Application Boiler feedwater, Condensate, Sea water, Water
Size 400
Material Seat EPDM
Material Disc Stainless Steel, Super Duplex
Pressure Rating PN10
End Type Wafer
Sub Category BUTTERFLY
Item Number 40-00002358
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F12
Variant Bare stem
Max temperature +100°C
Partslist and details

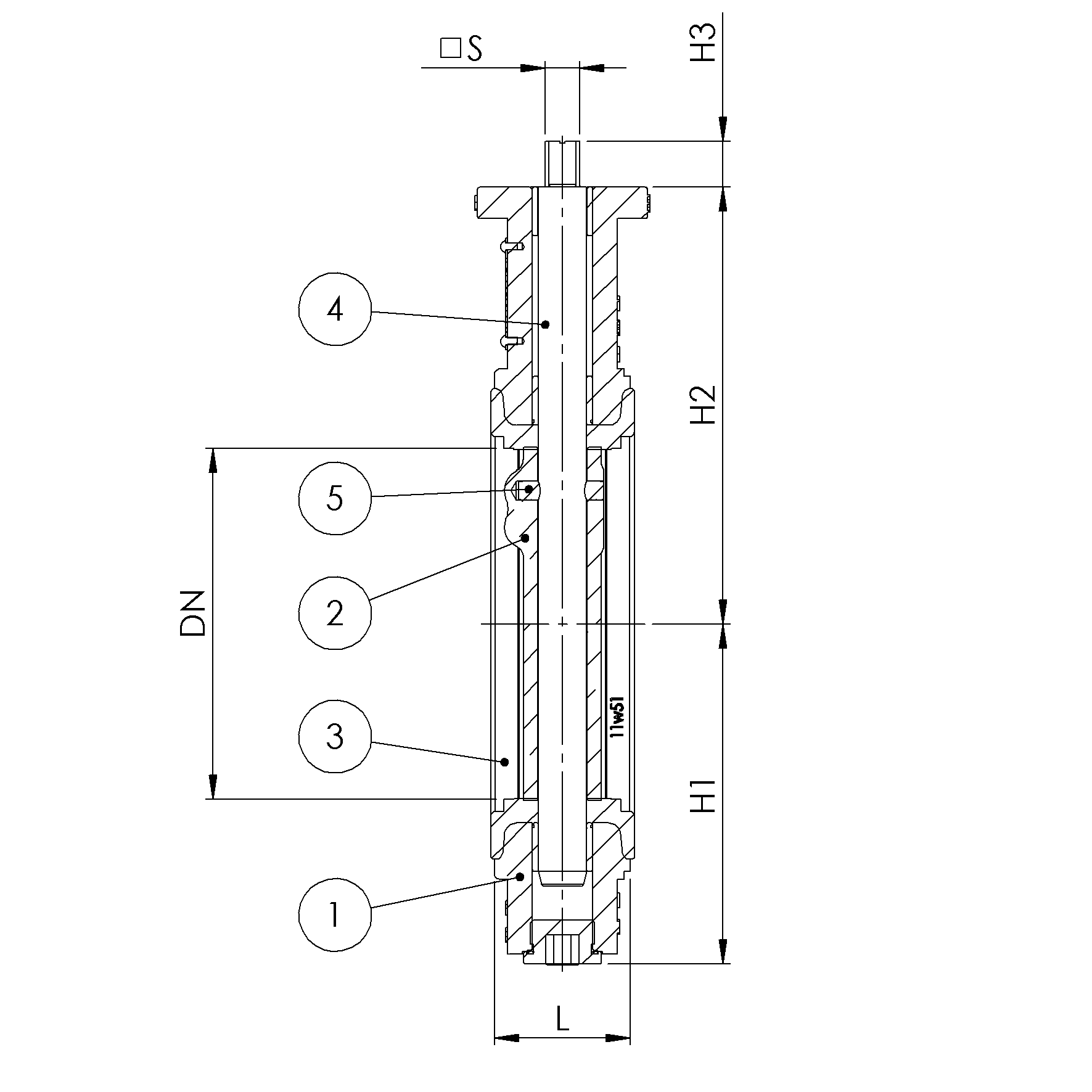

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Super Duplex Stainless Steel 1.4469
3 Seat EPDM max working temp. 100°C
4 Stem Stainless Steel 1.4401
5 Pin Duplex Stainless Steel 1.4462

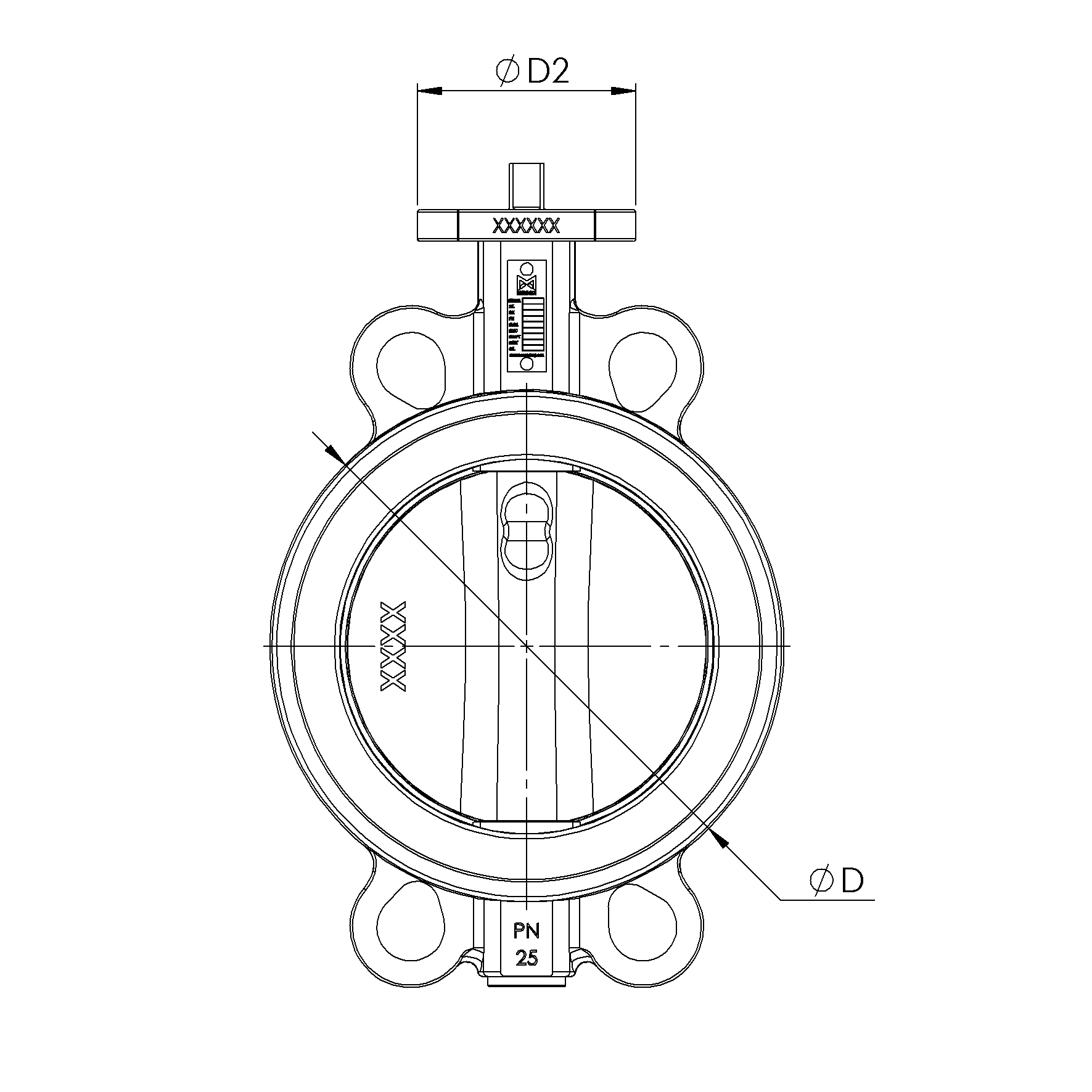

DETAILS
DN Pressure Rating Id Ø D L Kg H1 Ø D2 H2 S H3
400 10 492 102 70 305 150 350 27 30
