Butterfly Valve W DN350 PN16

Wafer type - bare stem
Item No.
M35007
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 700702
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Multiflange: PN10/16, ANSI150, JIS10K
Face To Face Standard EN 558, series 20
End Standard EN 1092-2
Design Code EN 593
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 350
Material Seat NBR
Material Disc Aluminium Bronze
Pressure Rating PN16
End Type Wafer
Sub Category BUTTERFLY
Item Number M35007
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F12
Variant Bare stem
Max temperature +80°C

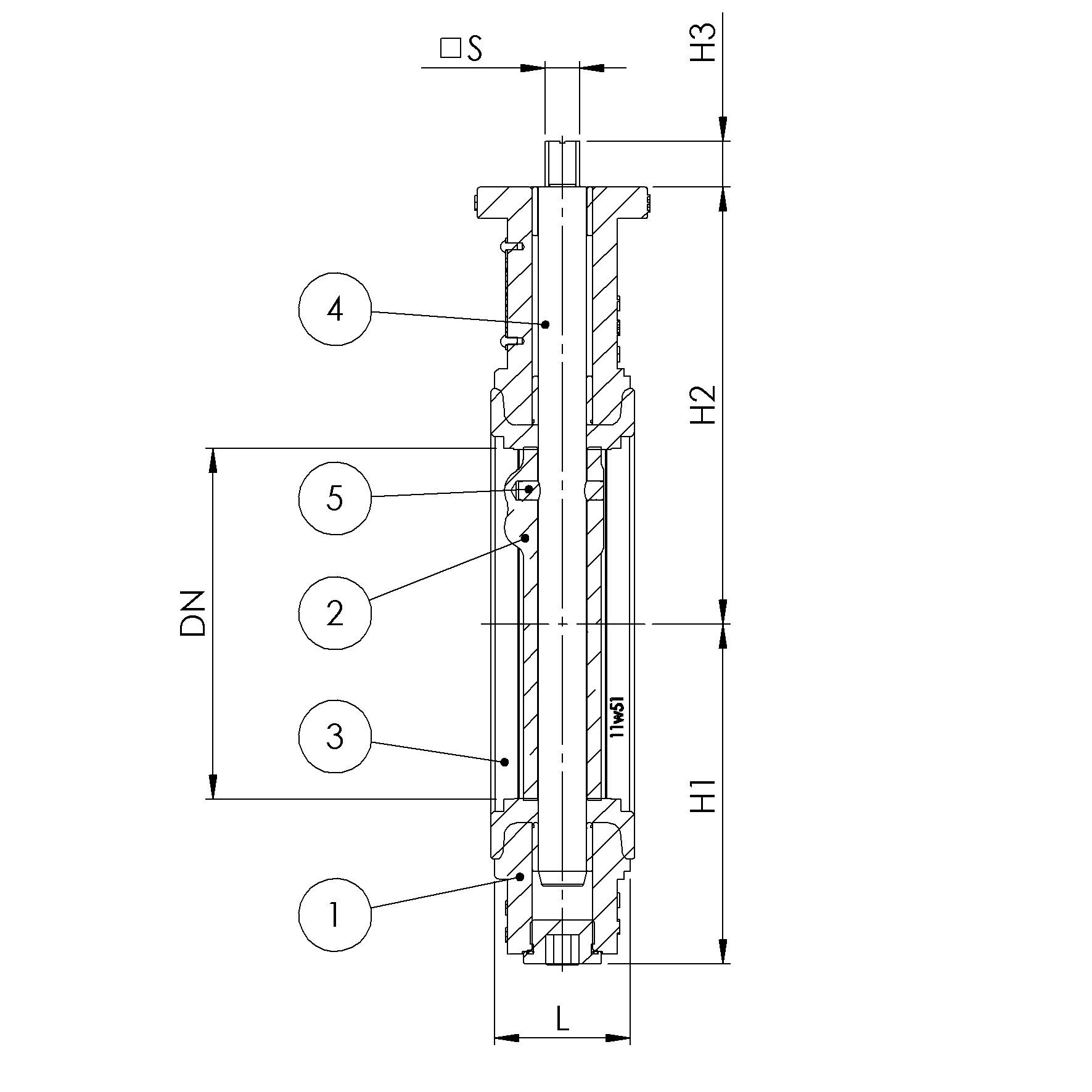

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Aluminium Bronze
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4057
5 Pin Duplex Stainless Steel 1.4462

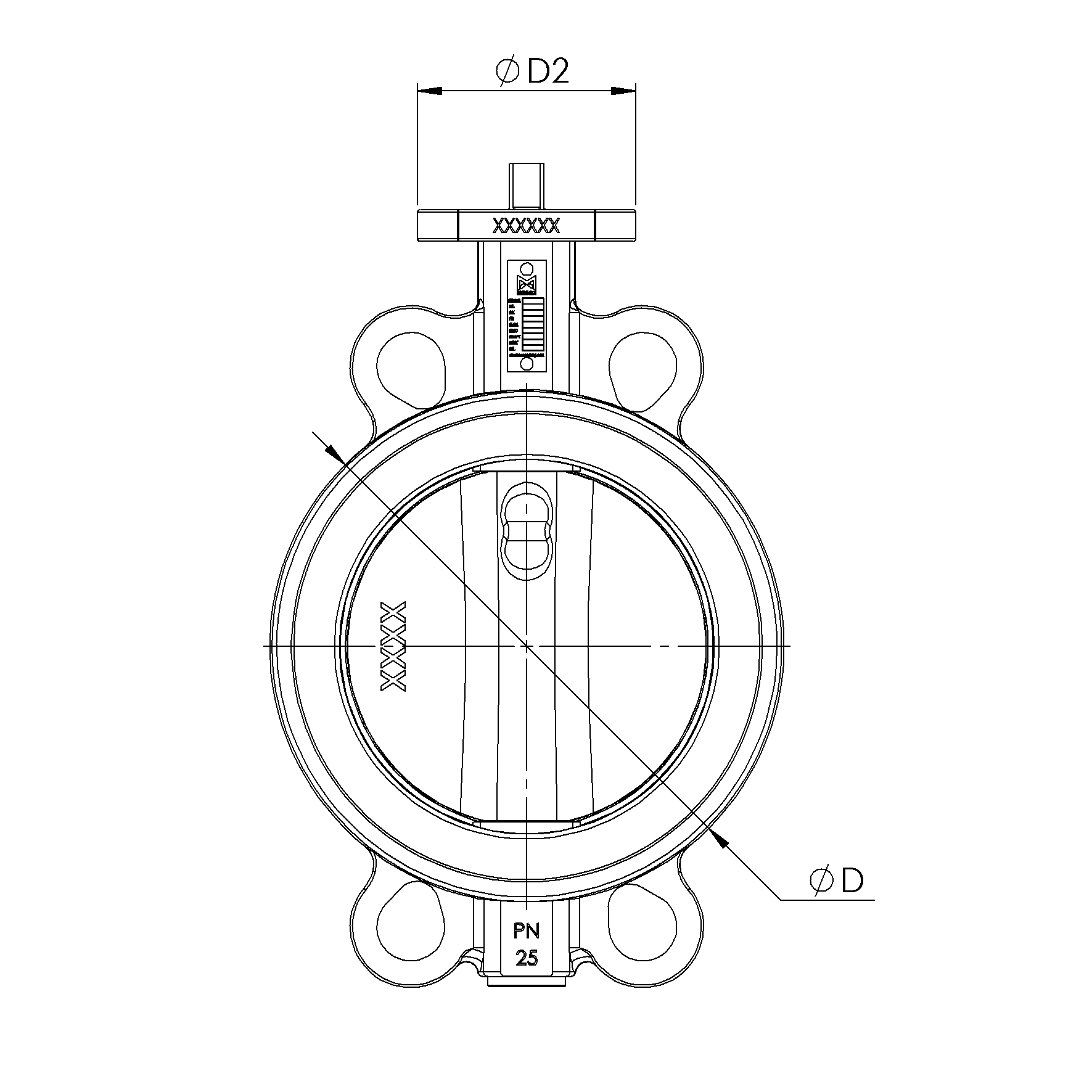

DETAILS
DN Pressure Rating Id Ø D L Kg H1 Ø D2 H2 S H3
350 16 437 78 43 288 150 315 27 30
