Butterfly Valve W DN200 PN16

Wafer type - bare stem
Item No.
M34341
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 702902
Material Body Nodular Cast Iron, GGG40
Min temperature -30°C
Remark Multiflange: PN6/10/16/25, ANSI150, JIS5K/10K
Face To Face Standard EN 558, series 20
End Standard EN 1092-2
Design Code EN 593
Standard DIN
Application Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid
Size 200
Material Seat FPM/FKM
Material Disc Stainless Steel, 316
Pressure Rating PN16
End Type Wafer
Sub Category BUTTERFLY
Item Number M34341
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F07
Variant Bare stem
Max temperature +180°C

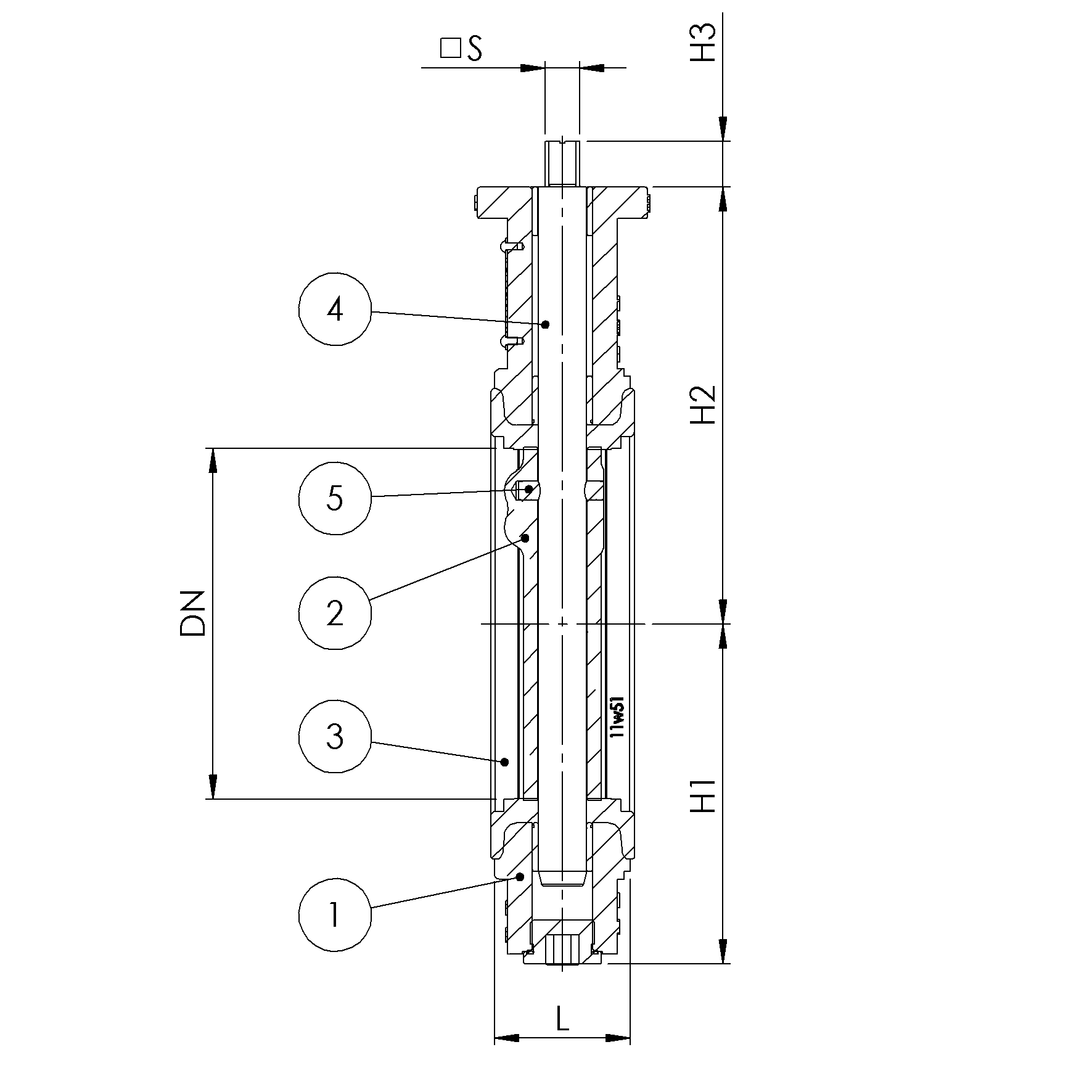

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Stainless Steel 1.4408
3 Seat FPM/FKM max working temp. 180°C
4 Stem Stainless Steel 1.4401
5 Pin Duplex Stainless Steel 1.4462

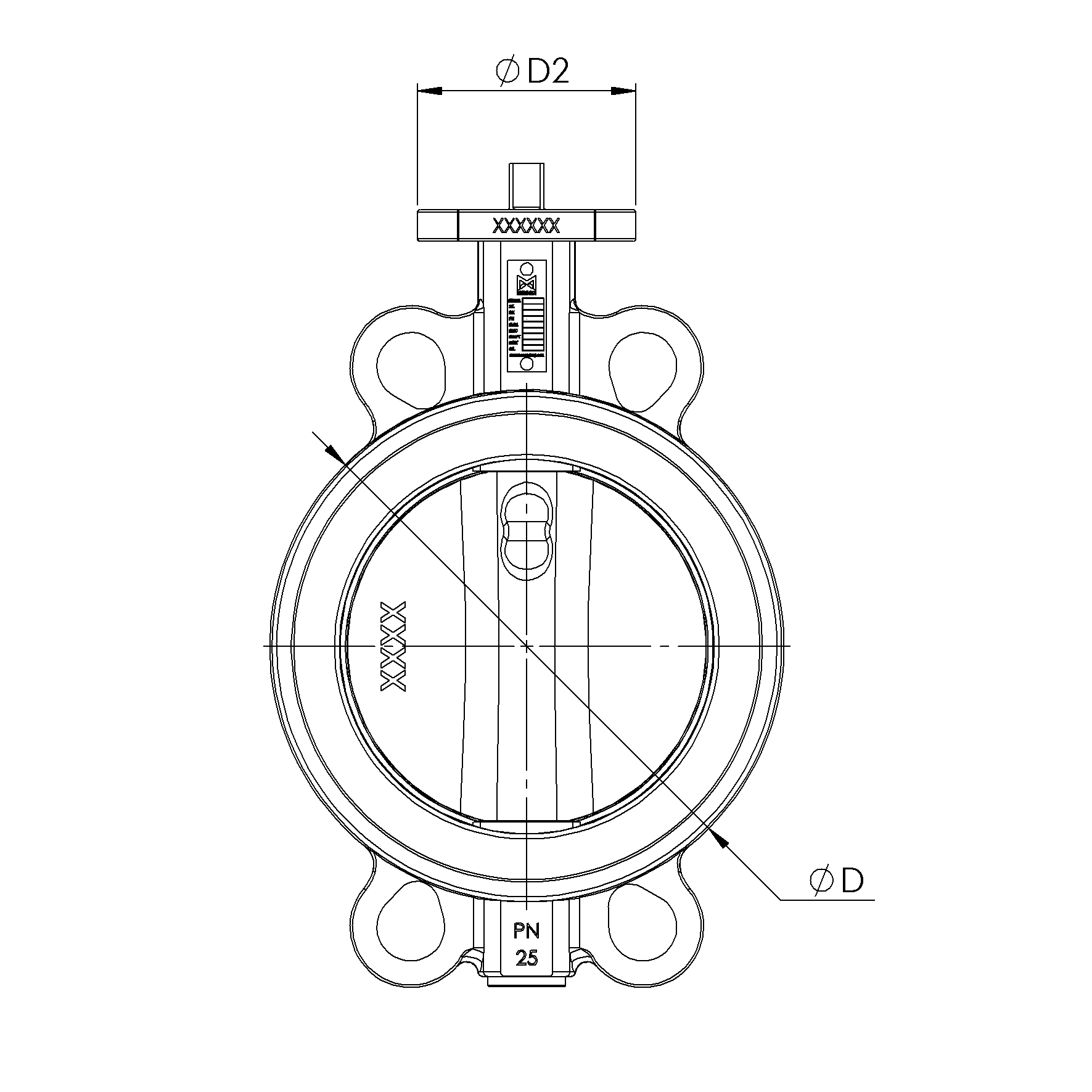

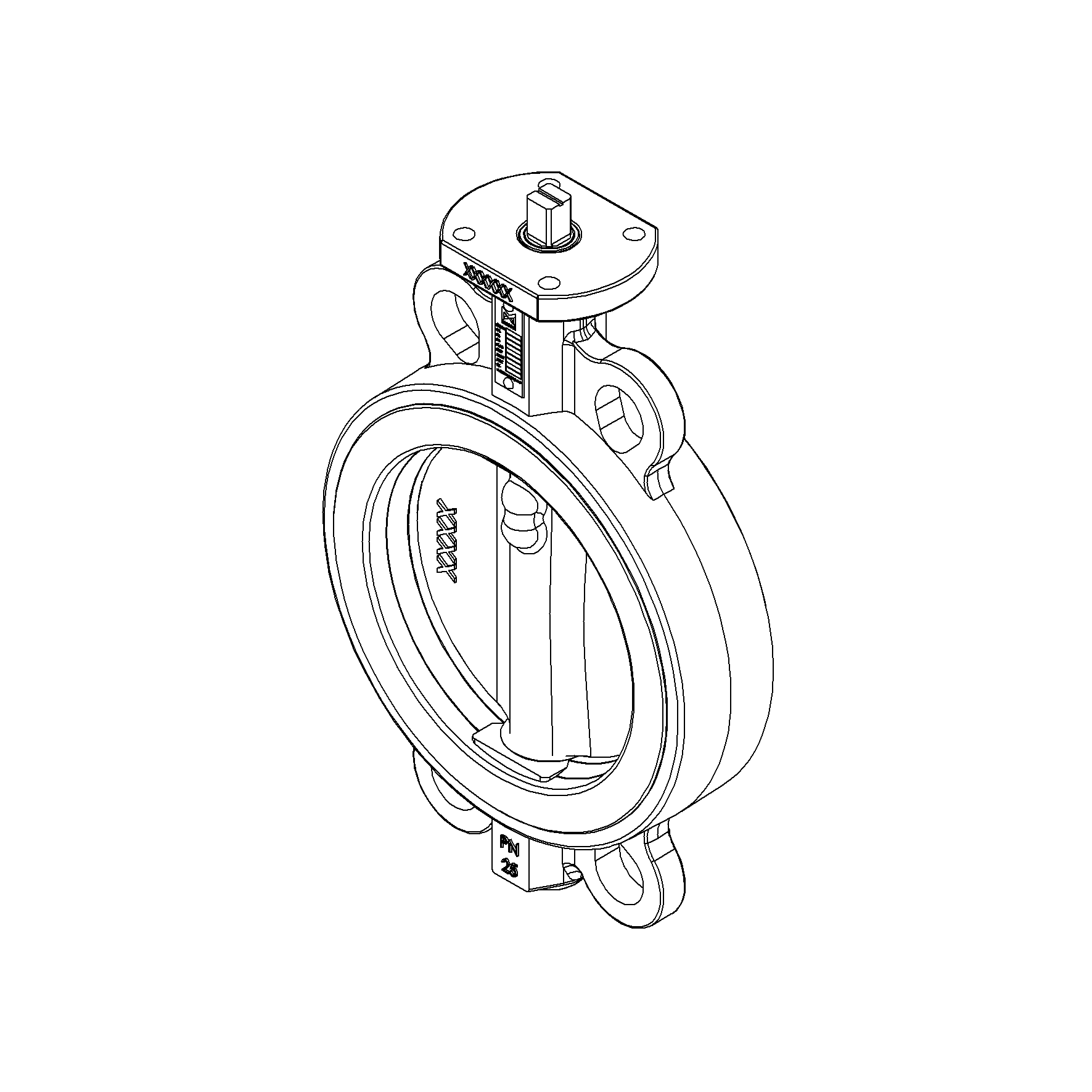

DETAILS
DN Pressure Rating Id Ø D L Kg H1 Ø D2 H2 S H3
200 16 266 60 14 167 90 204 17 28
