Butterfly Valve L DN700 PN10

Lug type - bare stem
Item No.
M33525
Details

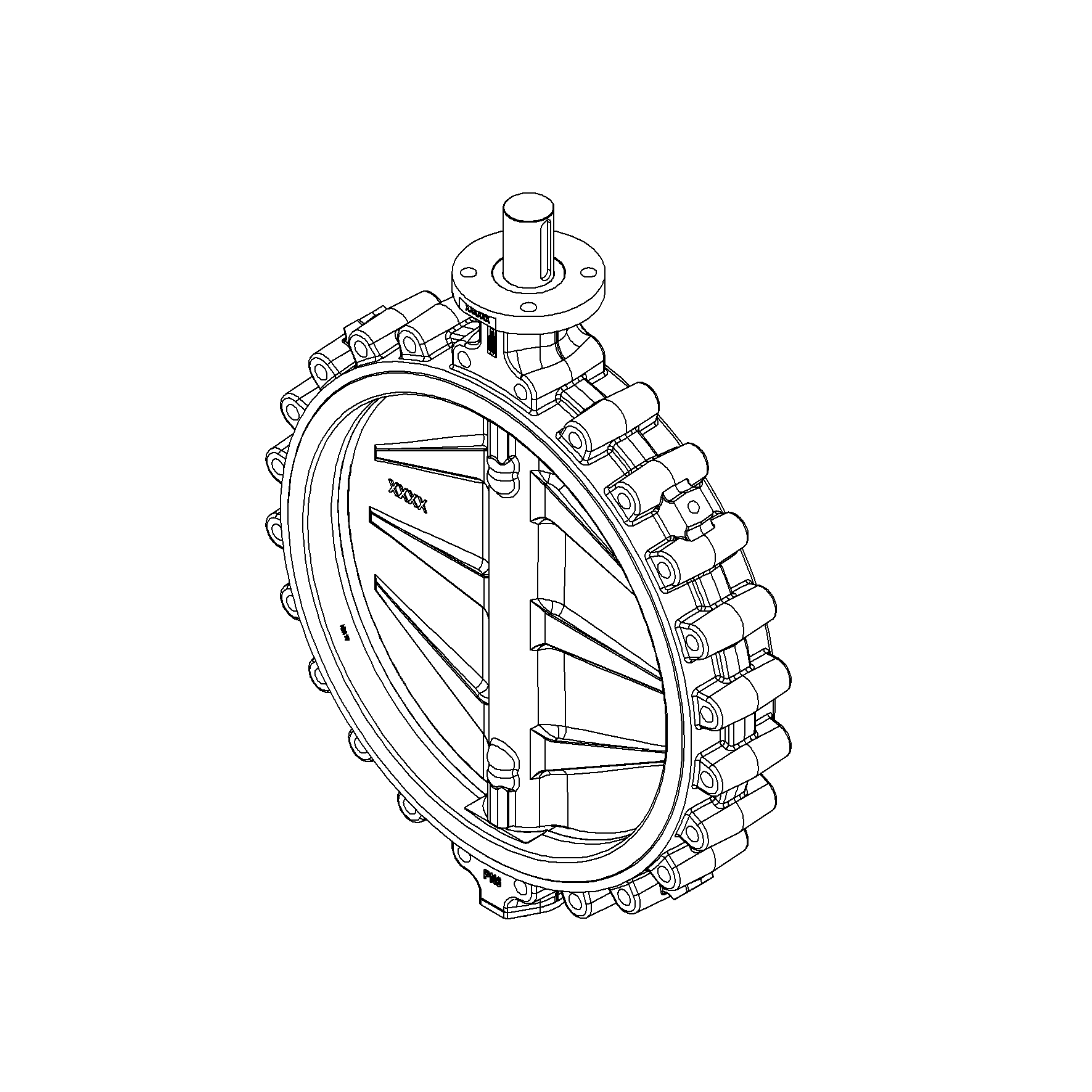

Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Product Group 710701
Material Disc Aluminium Bronze
Min temperature -15°C
Max temperature +80°C
Category Valve
Item Number M33525
Sub Category BUTTERFLY
End Type Lug
Pressure Rating PN10
Material Body Nodular Cast Iron, GGG40
Material Seat NBR
Size 700
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Standard DIN
Design Code EN 593
End Standard EN 1092-2
Face To Face Standard EN 558, series 20
Inspection Standard EN 12266
Remark Connection: PN10
Top Flange Standard ISO 5211 - F16
Variant Bare stem
Partslist and details

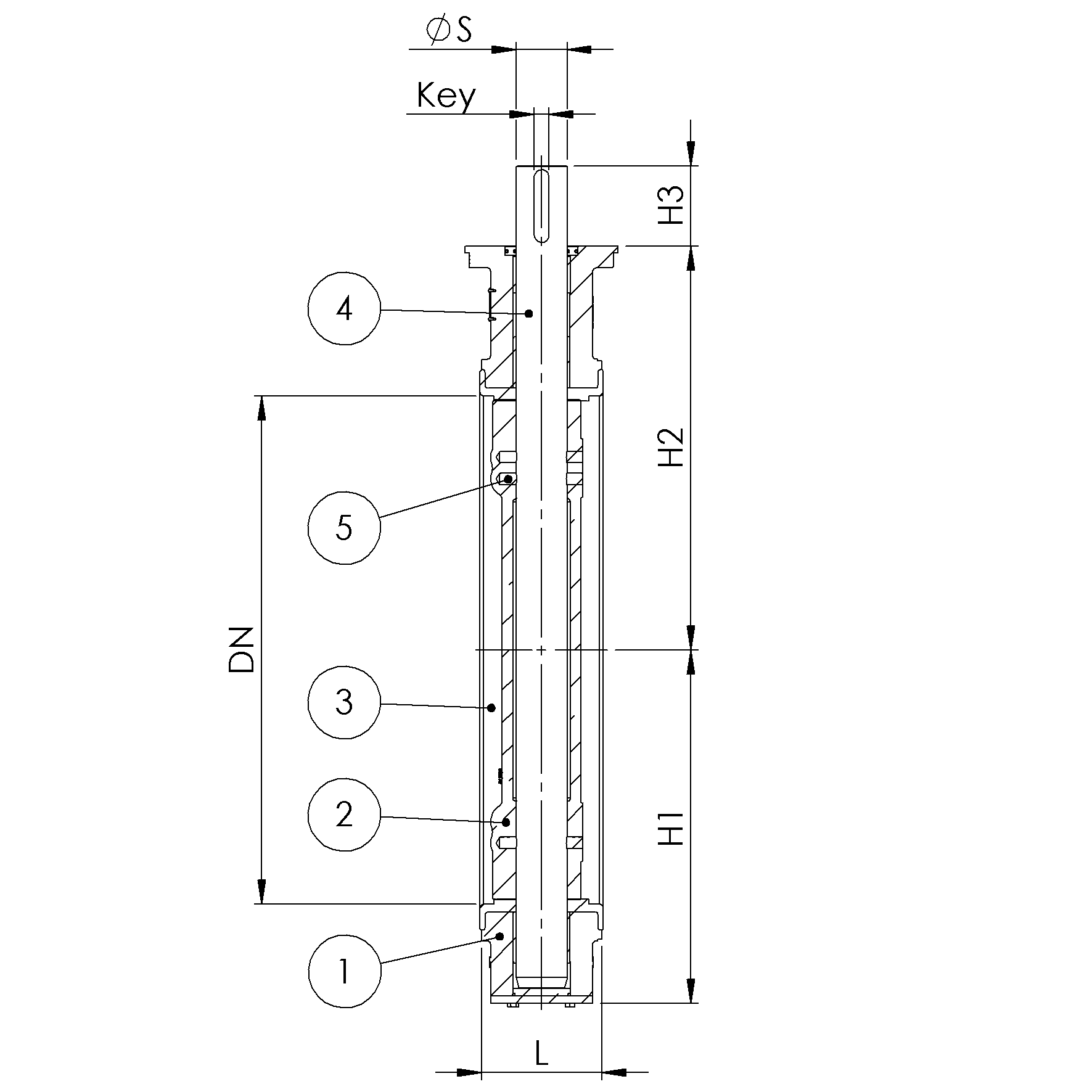

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Aluminium Bronze
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4057
5 Pin Duplex Stainless Steel 1.4462



DETAILS

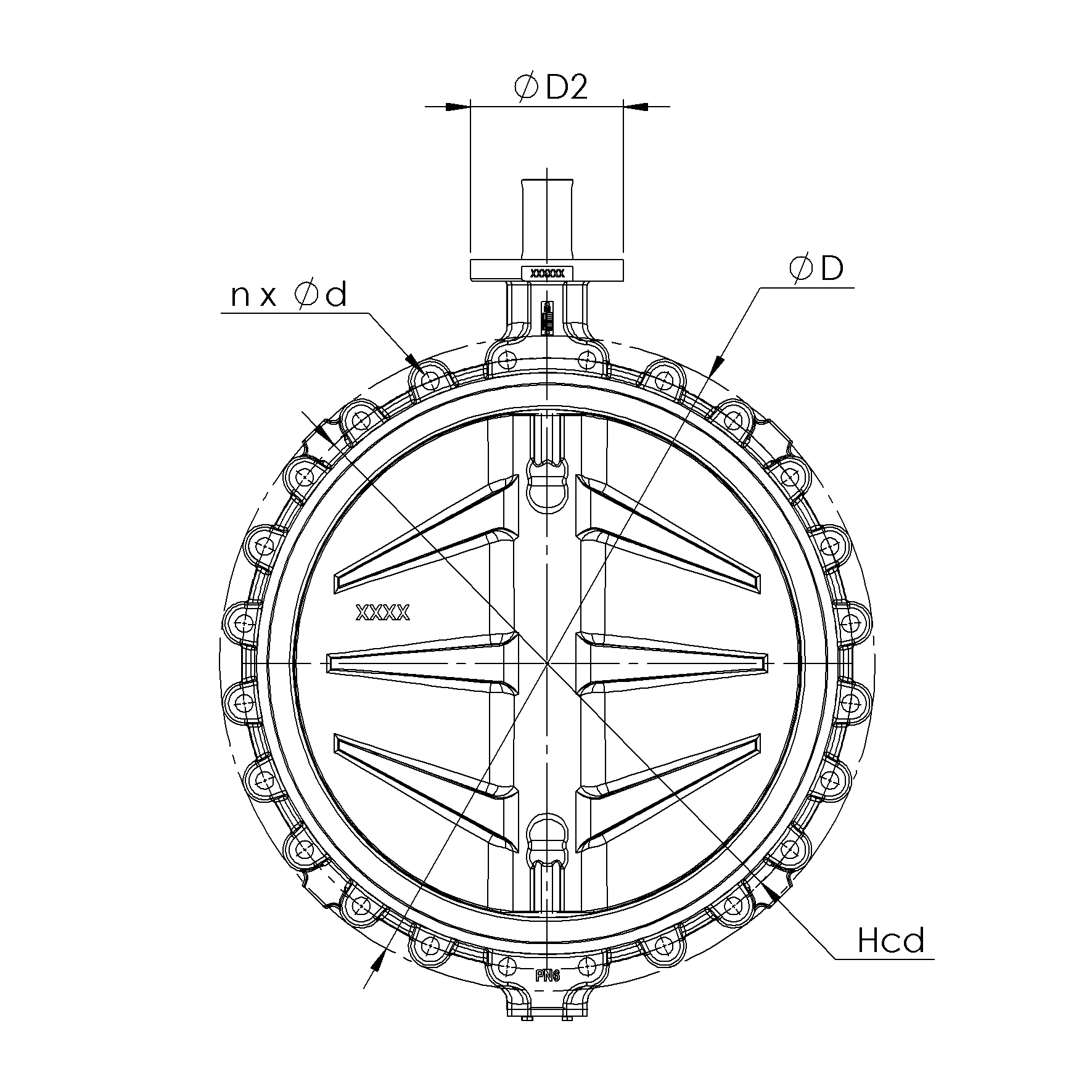

DN Pressure Rating Id nxdd Hcd Ø D L Kg H1 Ø D2 H2 S H3
700 10 24xM27 840 900 165 295 485 210 555 70 110
