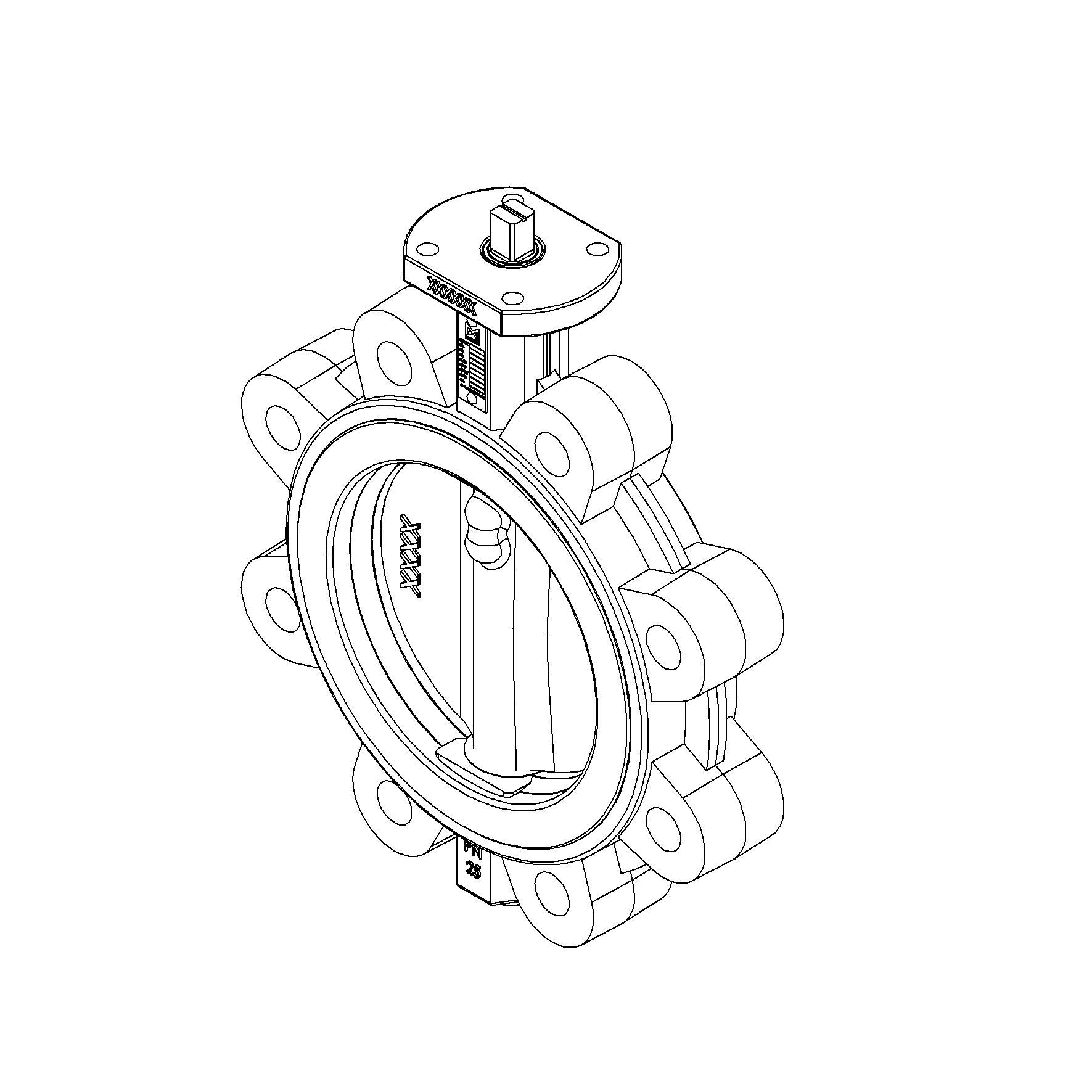

Butterfly Valve L DN65 JIS 10K

Lug type - bare stem
Item No.
M34895
Details
Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 711902
Material Body Nodular Cast Iron, GGG40
Min temperature -20°C
Remark Connection: JIS 10K
Face To Face Standard EN 558, series 20
End Standard JIS B2239
Design Code EN 593
Standard JIS
Application Boiler feedwater, Condensate, Sea water, Water
Size 65
Material Seat EPDM
Material Disc Stainless Steel, 316
Pressure Rating JIS 10K
End Type Lug
Sub Category BUTTERFLY
Item Number M34895
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F07
Variant Bare stem
Max temperature +100°C

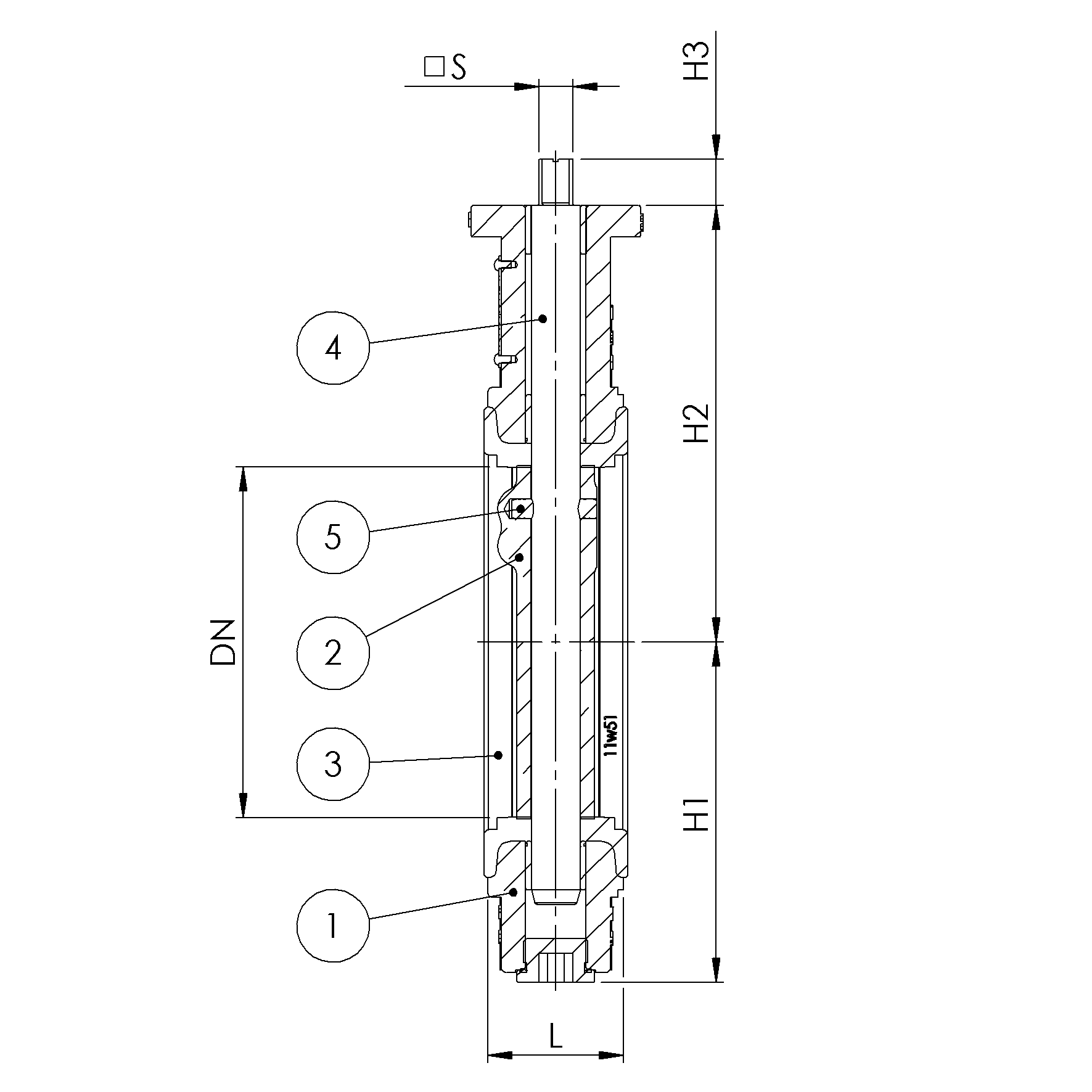

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Stainless Steel 1.4408
3 Seat EPDM max working temp. 100°C
4 Stem Stainless Steel 1.4401
5 Pin Duplex Stainless Steel 1.4462

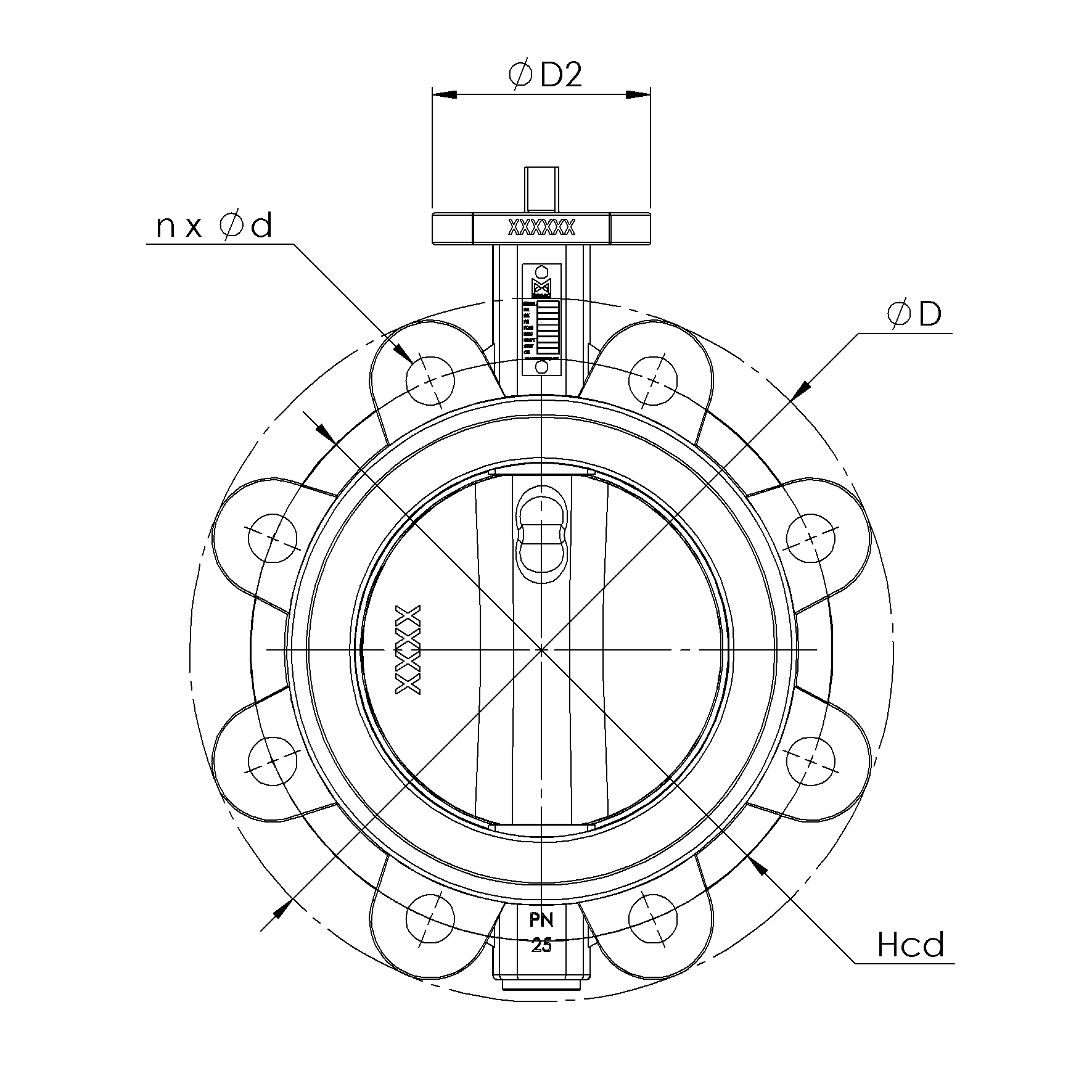

DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H1 Ø D2 H2 S H3
65 10 4xM16 140 185 46 4.4 80 90 126 11 19
