Butterfly Valve L DN40 JIS 10K

Lug type - with lever
Item No.
M35632
Details

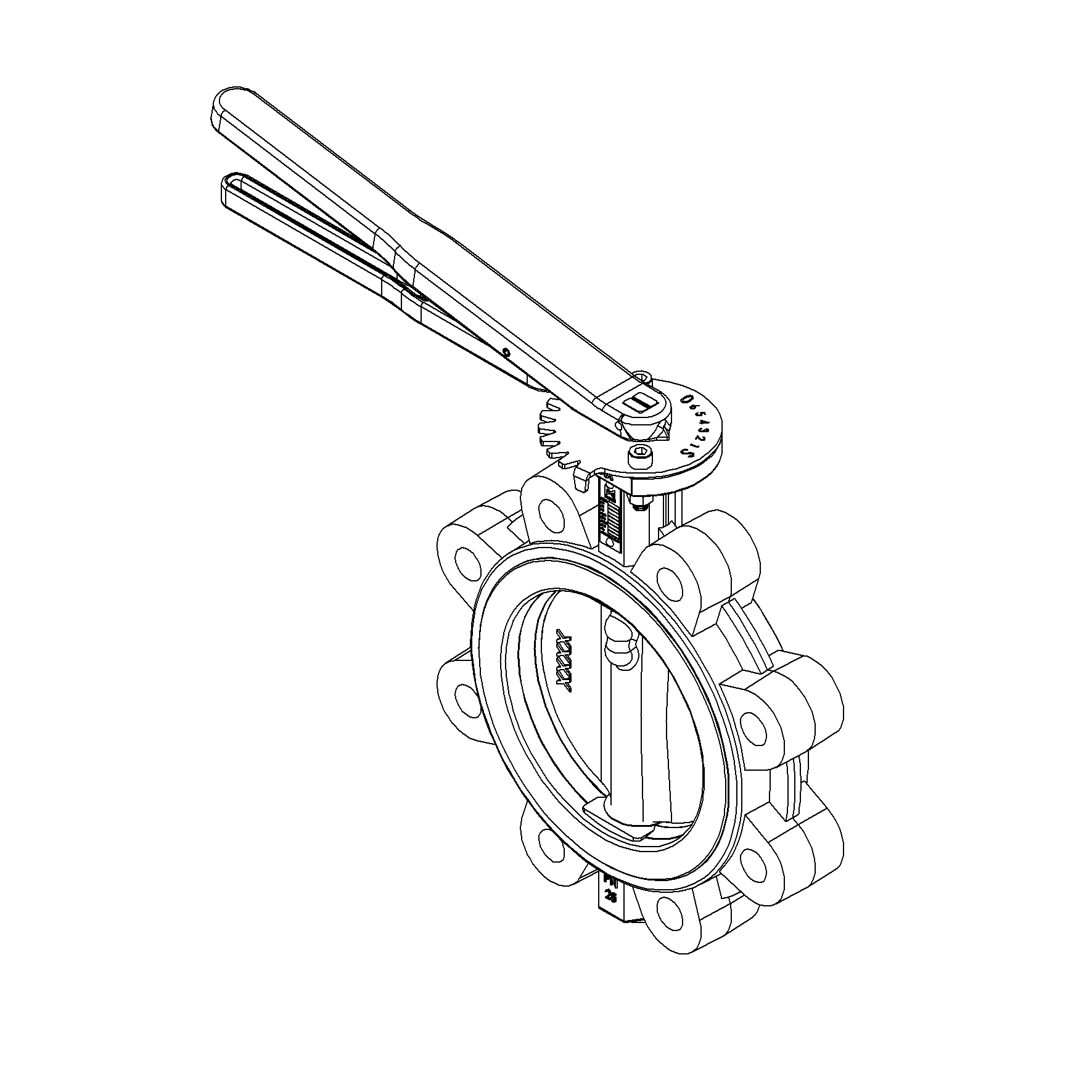

Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 710702
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Connection: JIS 10K
Face To Face Standard EN 558, series 20
End Standard JIS B2239
Design Code EN 593
Standard JIS
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 40
Material Seat NBR
Material Disc Aluminium Bronze
Pressure Rating JIS 10K
End Type Lug
Sub Category BUTTERFLY
Item Number M35632
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F07
Variant Lever
Max temperature +80°C
Partslist and details

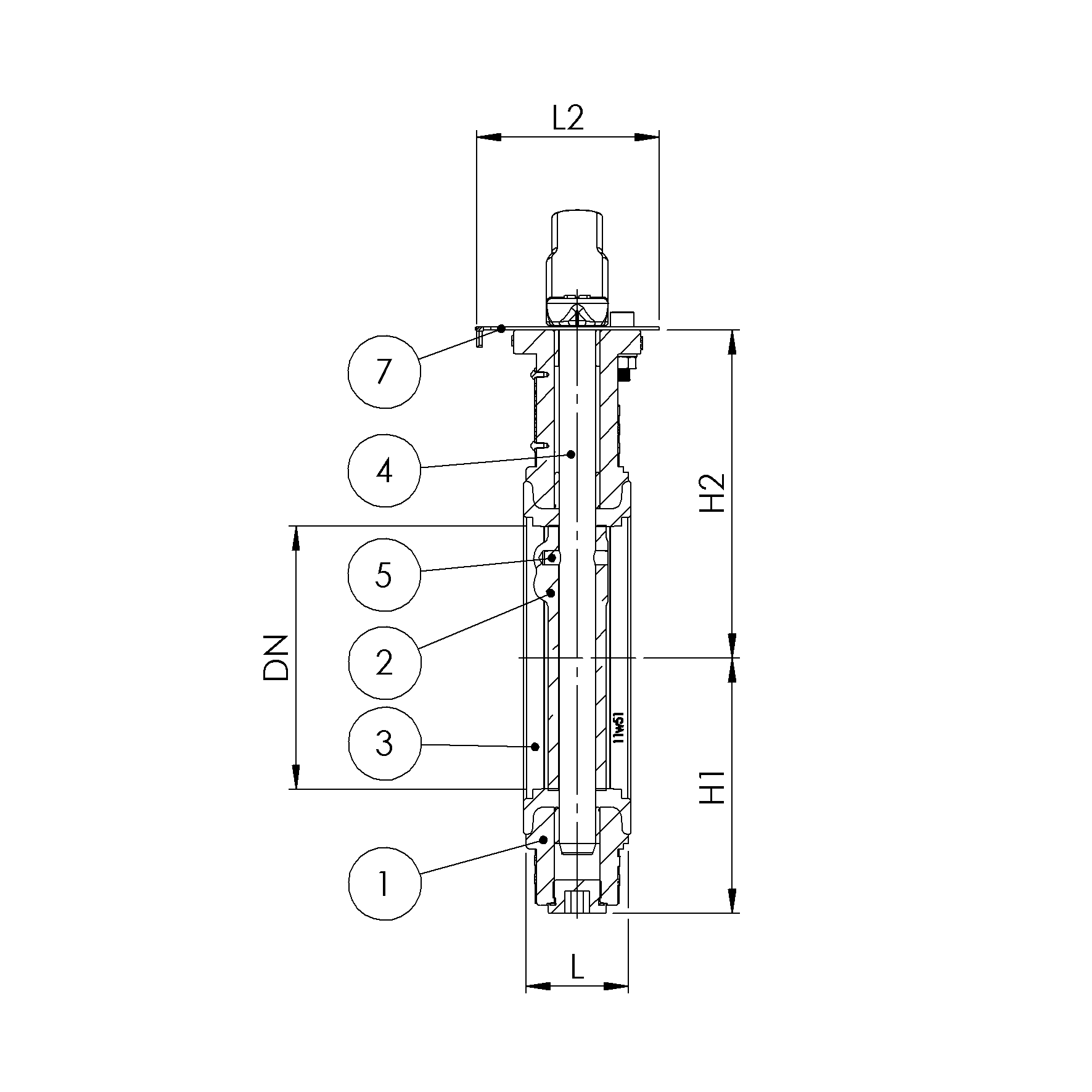

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Aluminium Bronze
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4401
5 Pin Duplex Stainless Steel 1.4462
6 Lever Nodular Cast Iron GGG40
7 Position plate Stainless Steel 1.4401



DETAILS

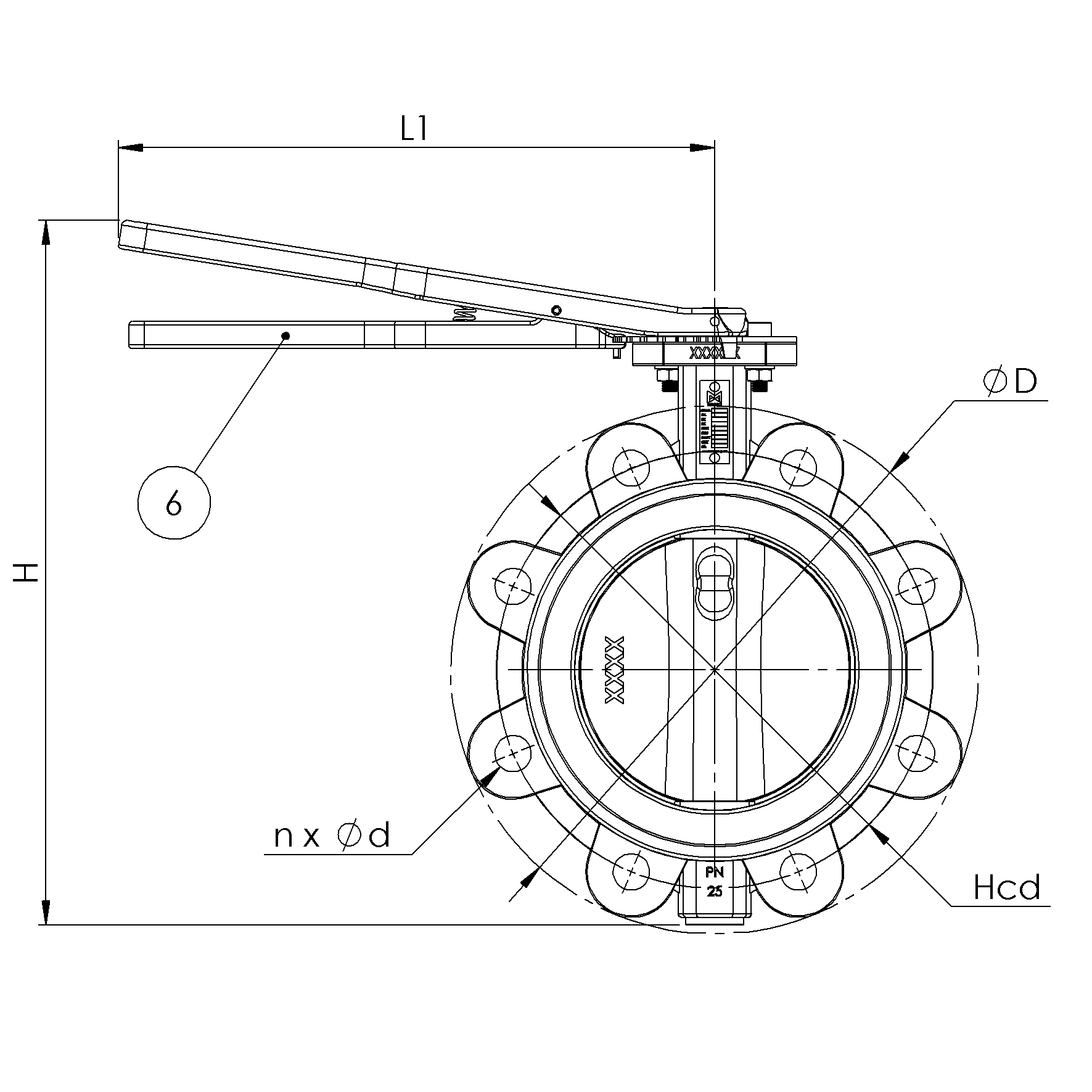

DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 L2 H2
40 10 4xM16 105 147 33 2.8 232 232,5 66 101 113
