Butterfly Valve L DN350 JIS 5K

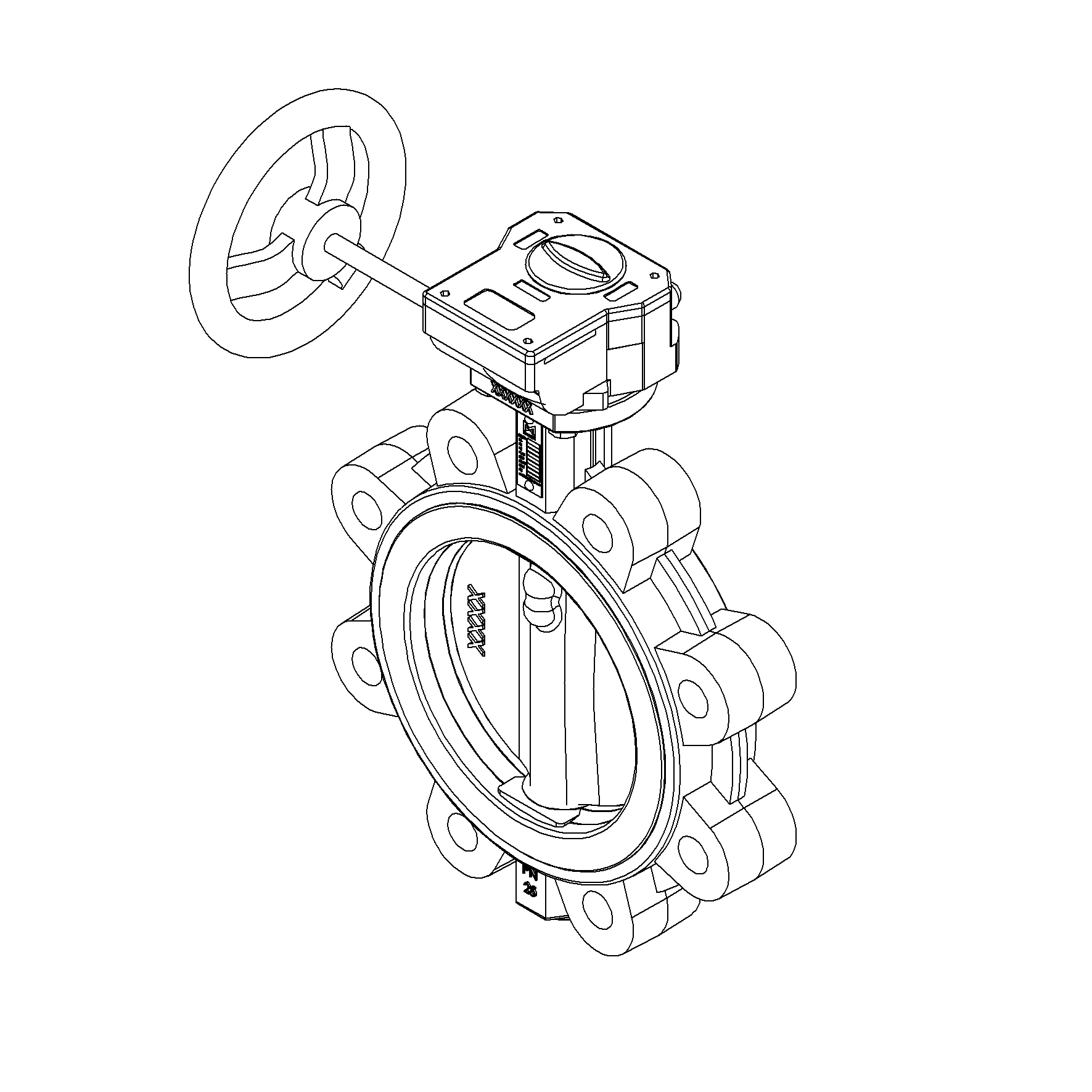

Lug type - with gearbox
Item No.
40-00002405
Details
Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 710701
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Connection: JIS 5K
Face To Face Standard EN 558, series 20
End Standard JIS B2239
Design Code EN 593
Standard JIS
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 350
Material Seat NBR
Material Disc Aluminium Bronze
Pressure Rating JIS 5K
End Type Lug
Sub Category BUTTERFLY
Item Number 40-00002405
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F12
Variant Gearbox
PartNumberListId 0
Max temperature +80°C
Partslist and details

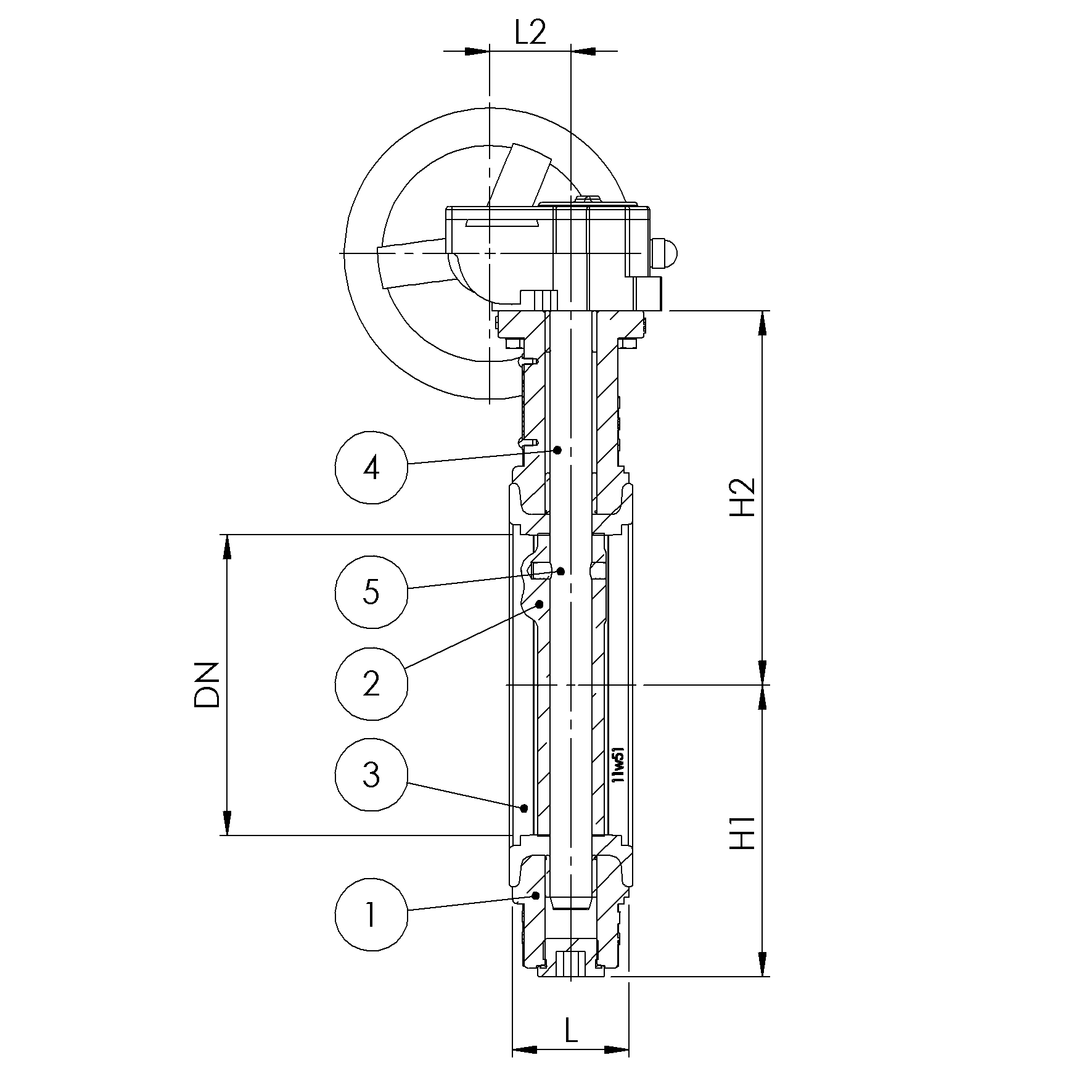

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Aluminium Bronze
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4057
5 Pin Duplex Stainless Steel 1.4462
6 Gearbox Cast Iron GG20
7 Gearbox shaft Steel C45

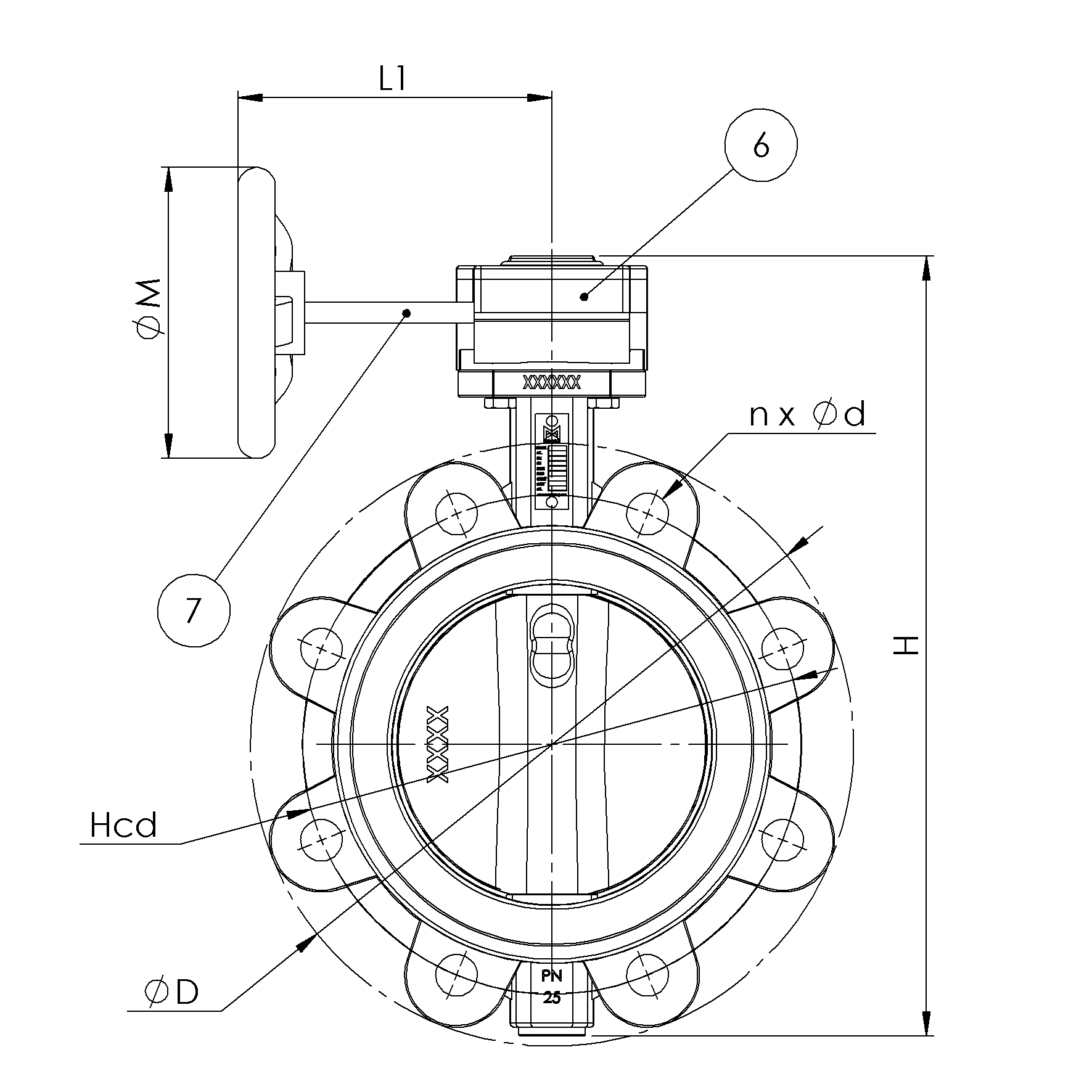

DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 L2 H2 Ø M
350 5 12xM22 435 516 78 65 210 675 288 66 315 300
