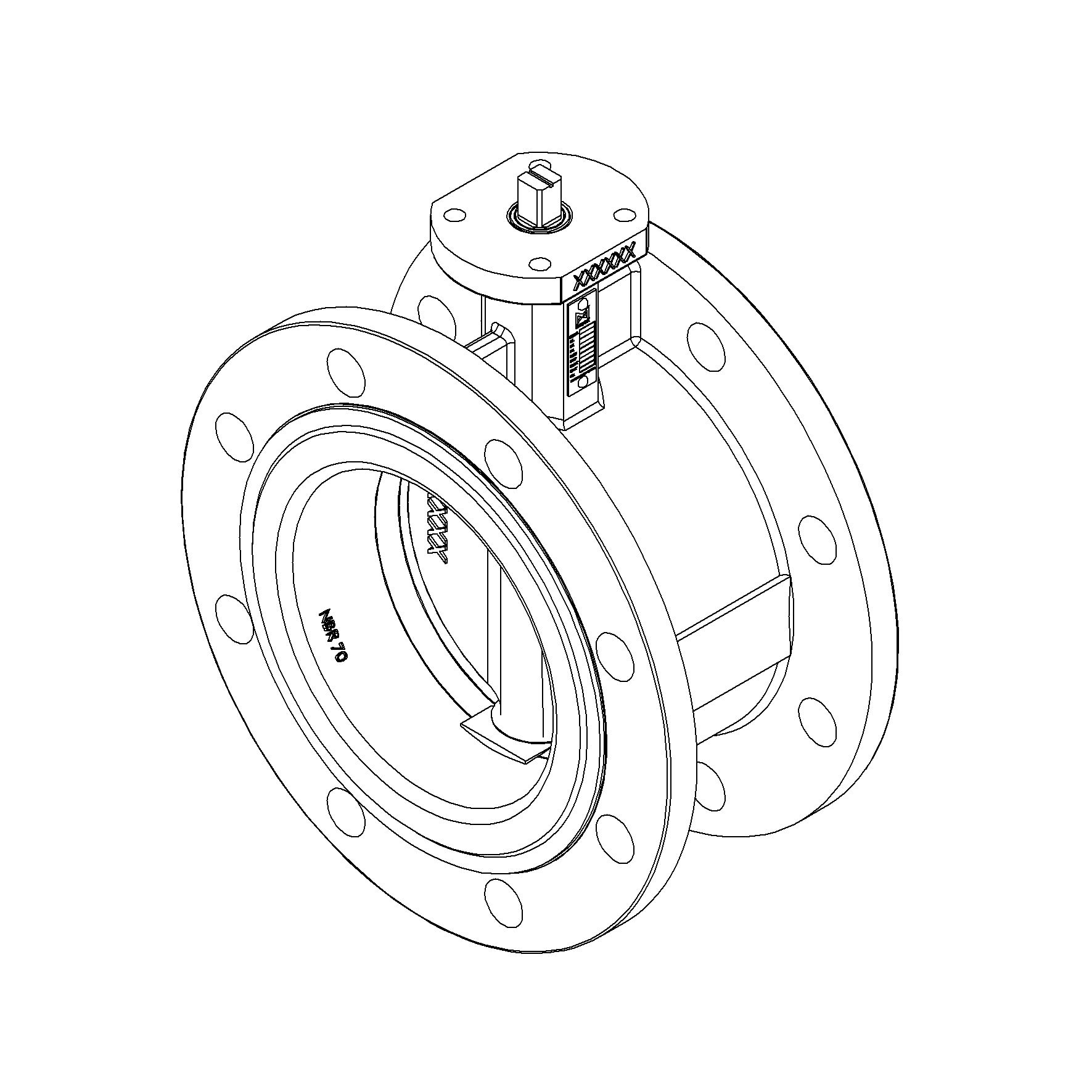

Butterfly Valve DF DN350 JIS 10K

Double flange type - bare stem
Item No.
M35288
Details
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Price View Price Range
Product Group 730902
Material Body Nodular Cast Iron, GGG40
Min temperature -15°C
Remark Connection: JIS 10K
Face To Face Standard EN 558, series 13
End Standard JIS B2239
Design Code EN 593
Standard JIS
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 350
Material Seat NBR
Material Disc Stainless Steel, 316
Pressure Rating JIS 10K
End Type Double flange
Sub Category BUTTERFLY
Item Number M35288
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F12
Variant Bare stem
Max temperature +80°C
Partslist and details

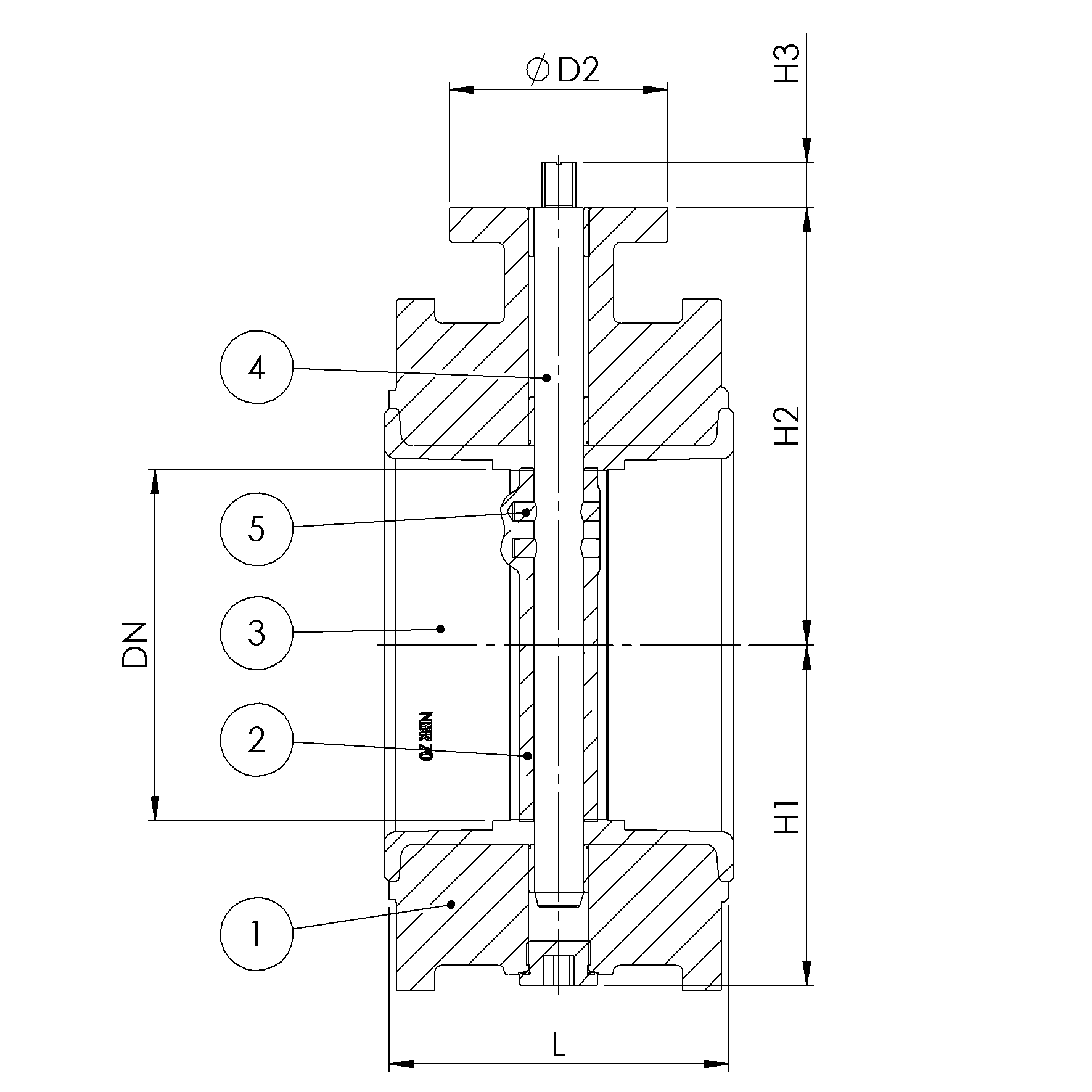

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Stainless Steel 1.4408
3 Seat NBR max working temp. 80°C
4 Stem Stainless Steel 1.4057
5 Pin Duplex Stainless Steel 1.4462



DETAILS

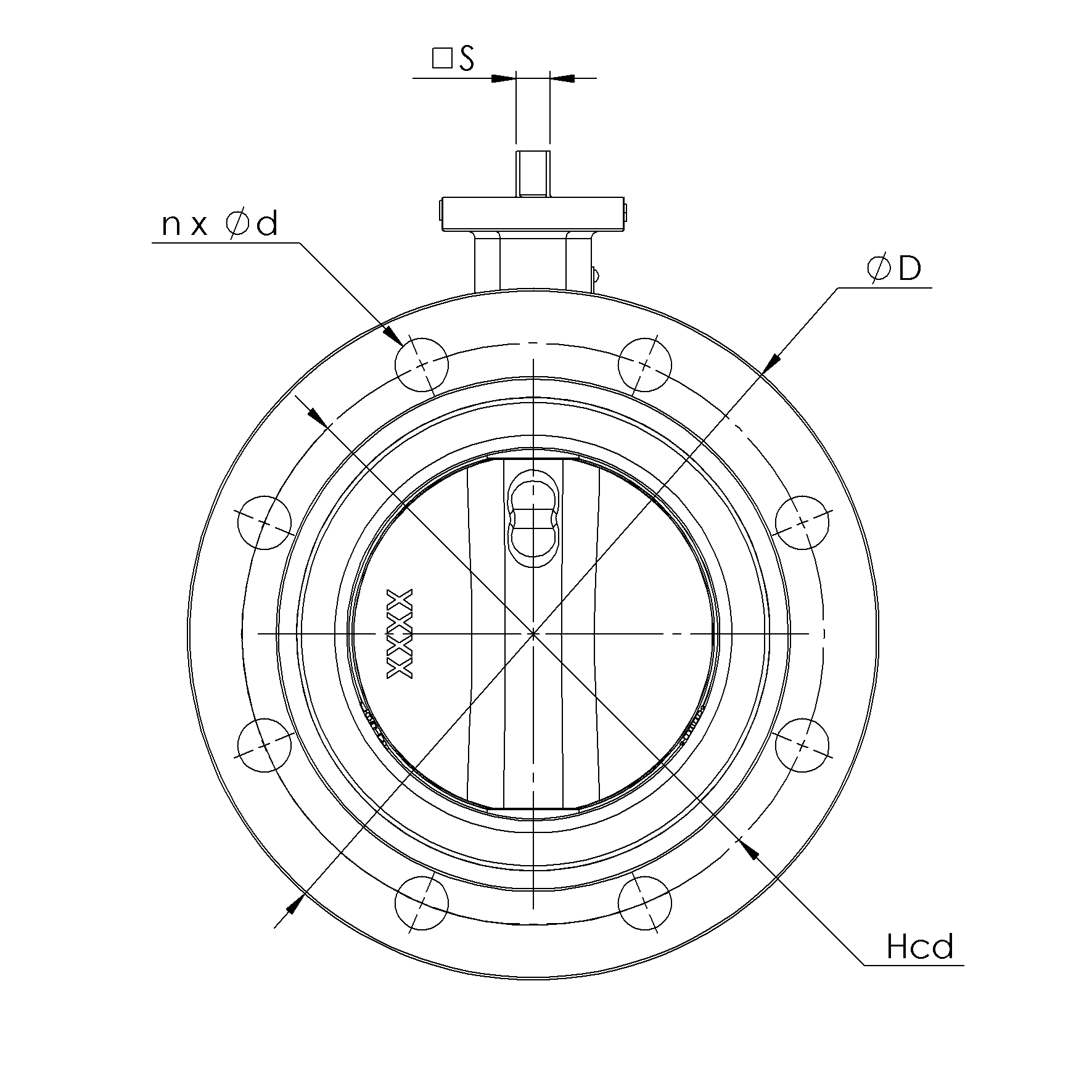

DN Pressure Rating Id nxdd Hcd Ø D L Kg H1 Ø D2 H2 S H3
350 10 16x25 445 505 190 80 288 150 315 27 30
