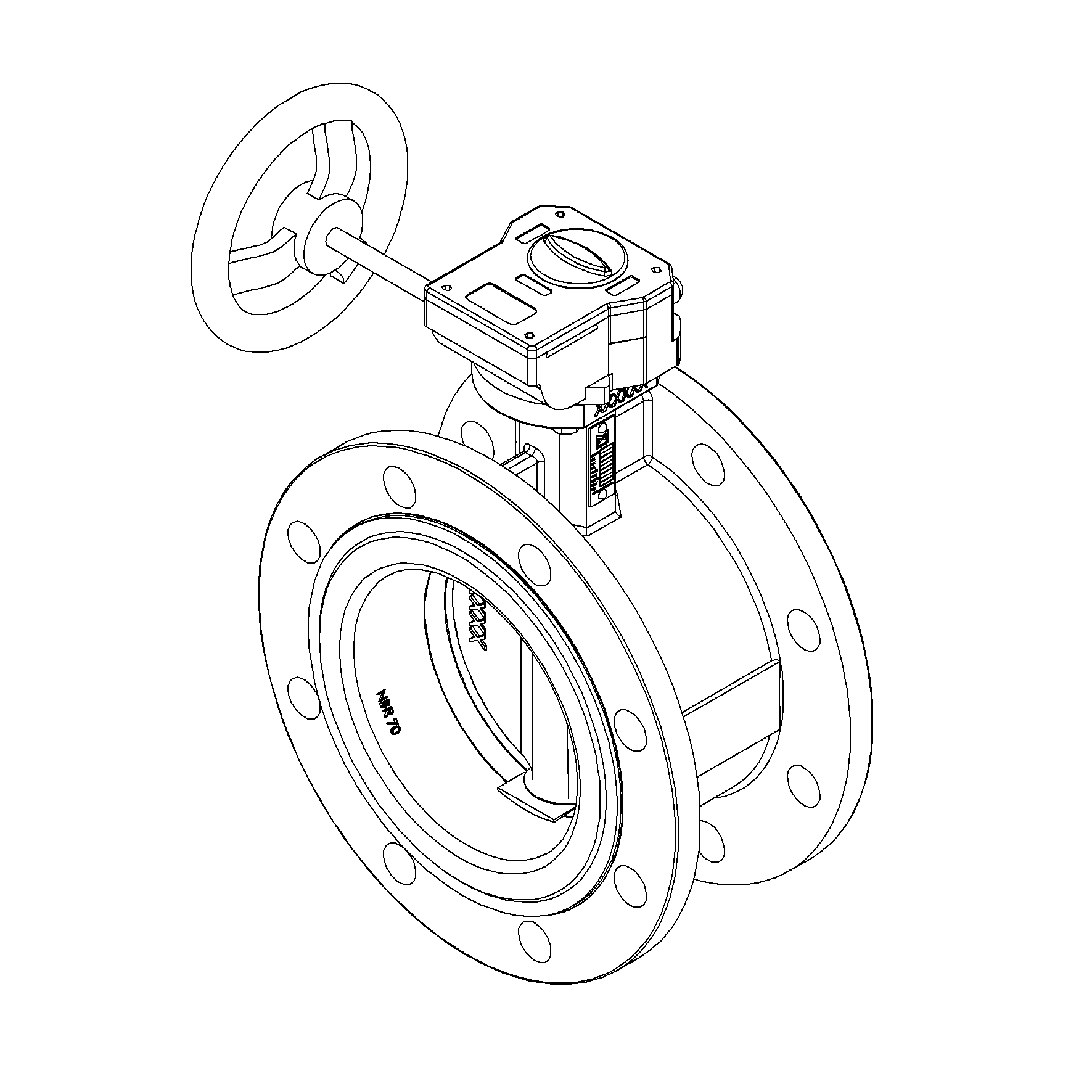

Butterfly Valve DF DN200 PN10

Double flange type - with gearbox
Item No.
M95892
Details
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
More Information
Product Group 731701
Top Flange Standard ISO 5211 - F07
Design Code EN 593
End Standard EN 1092-2
Face To Face Standard EN 558, series 13
Inspection Standard EN 12266
Category Valve
Item Number M95892
Sub Category BUTTERFLY
End Type Double flange
Pressure Rating PN10
Material Body Nodular Cast Iron, GGG40
Material Disc Aluminium Bronze
Material Seat EPDM
Size 200
Application Boiler feedwater, Condensate, Sea water, Water
Standard DIN
Remark Connection: PN10
Min temperature -20°C
Max temperature +100°C
Variant Gearbox
Partslist and details

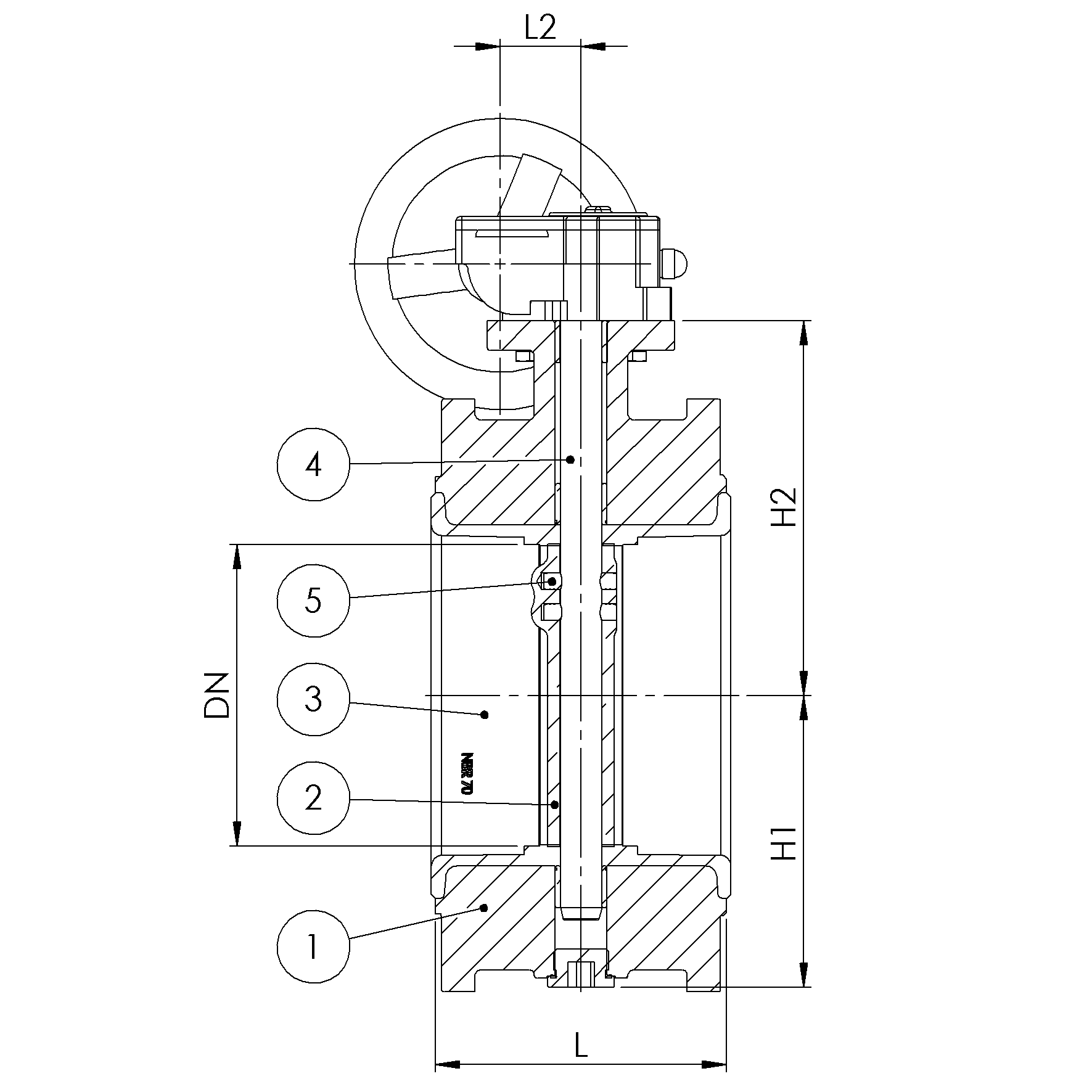

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Aluminium Bronze
3 Seat EPDM max working temp. 100°C
4 Stem Stainless Steel 1.4401
5 Pin Duplex Stainless Steel 1.4462
6 Gearbox Cast Iron GG20
7 Gearbox shaft Steel C45



DETAILS

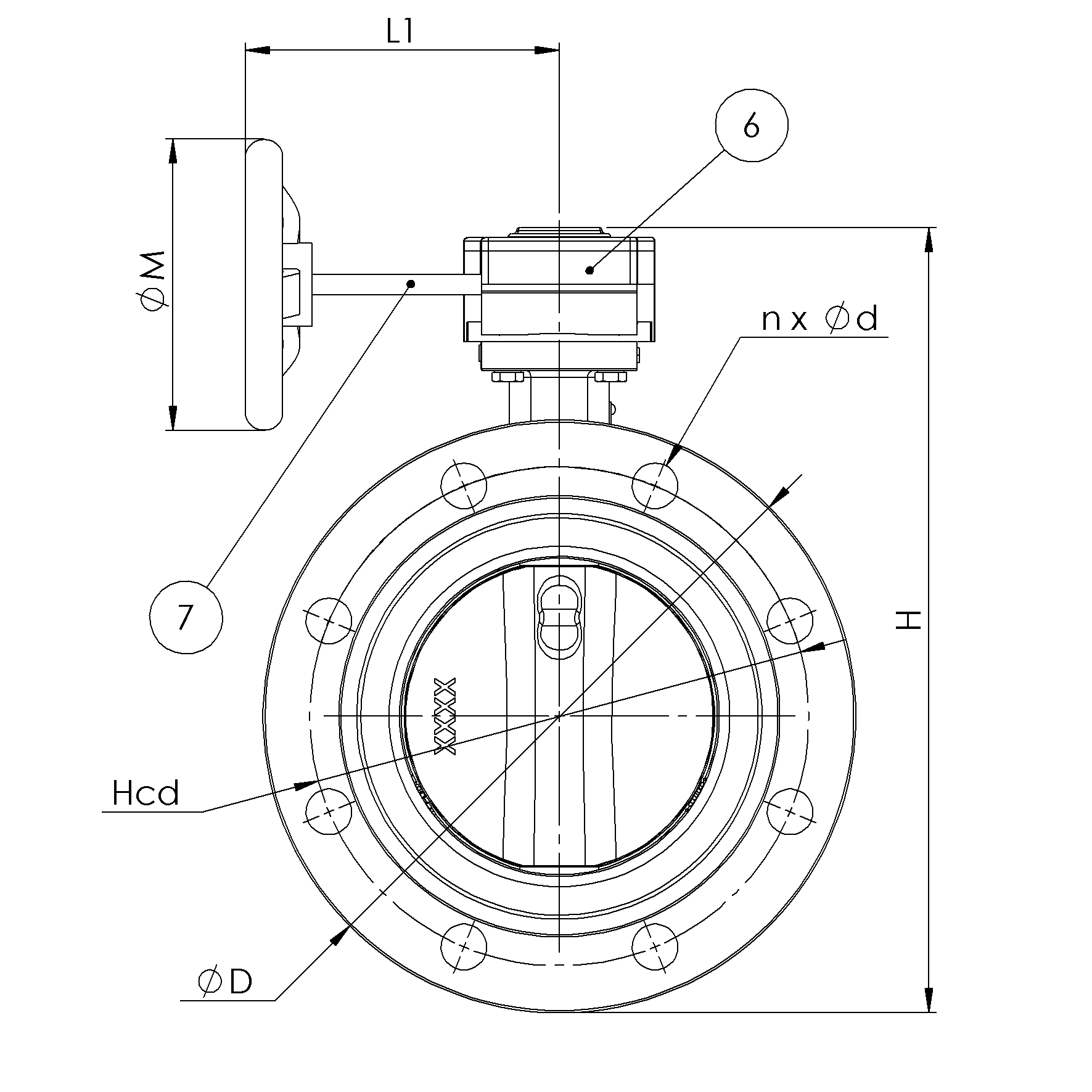

DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 L2 H2 Ø M
200 10 8x23 295 340 152 32.2 218 428 167 53 204 260
