Ball Valve ⅜" PN63

3-way type - L-port
Item No.
20-00001018
Details
3-way, reduced bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 448095
Material Body Stainless Steel, 316
Throughput Direction 3-way
End Standard ISO 228-1
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 10
Material Seat PTFE
Pressure Rating PN63
End Type Threaded
Sub Category BALL
Item Number 20-00001018
Category Valve
Inspection Standard EN 12266
Variant L-port
Execution Reduced Bore
Partslist and details

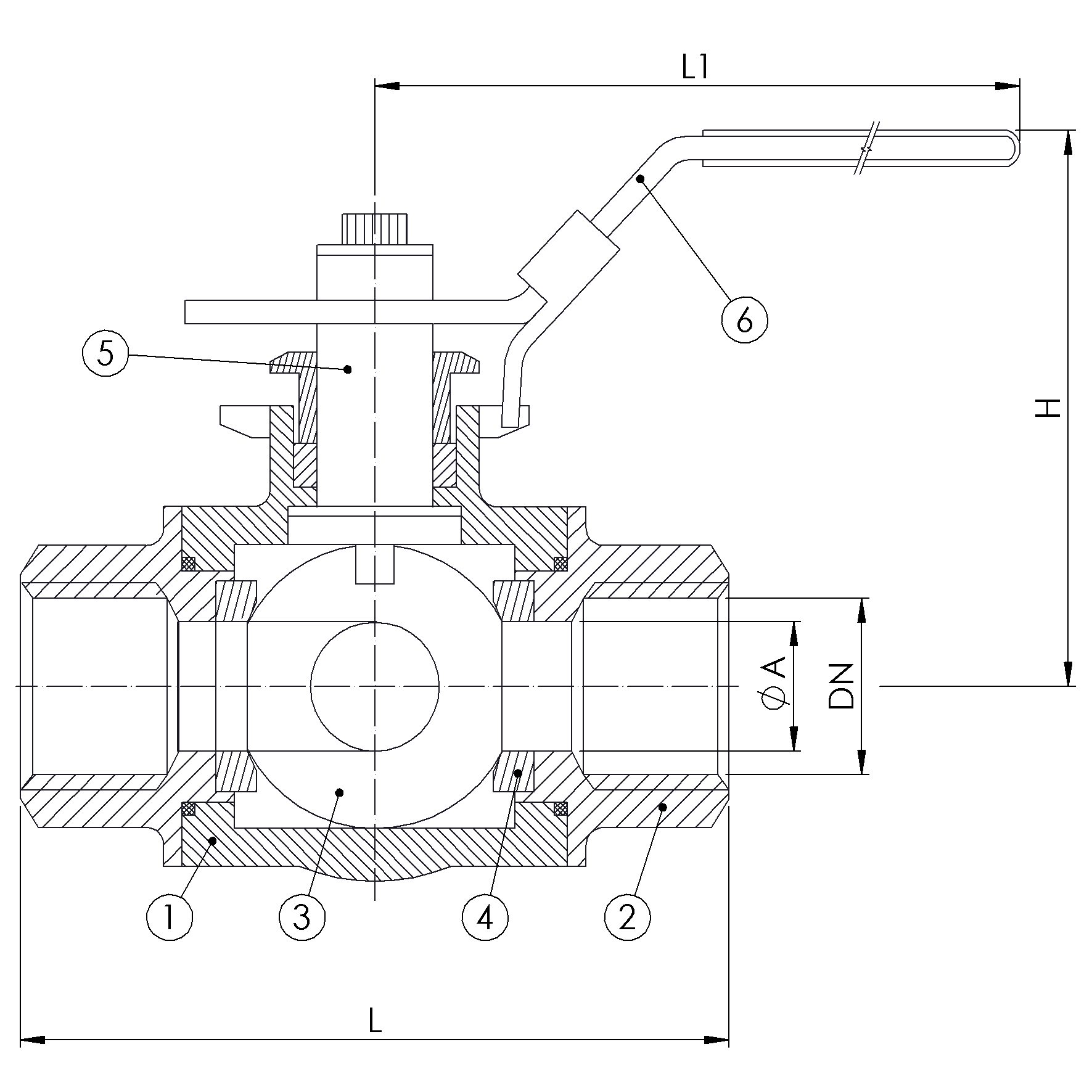

PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 304



DETAILS

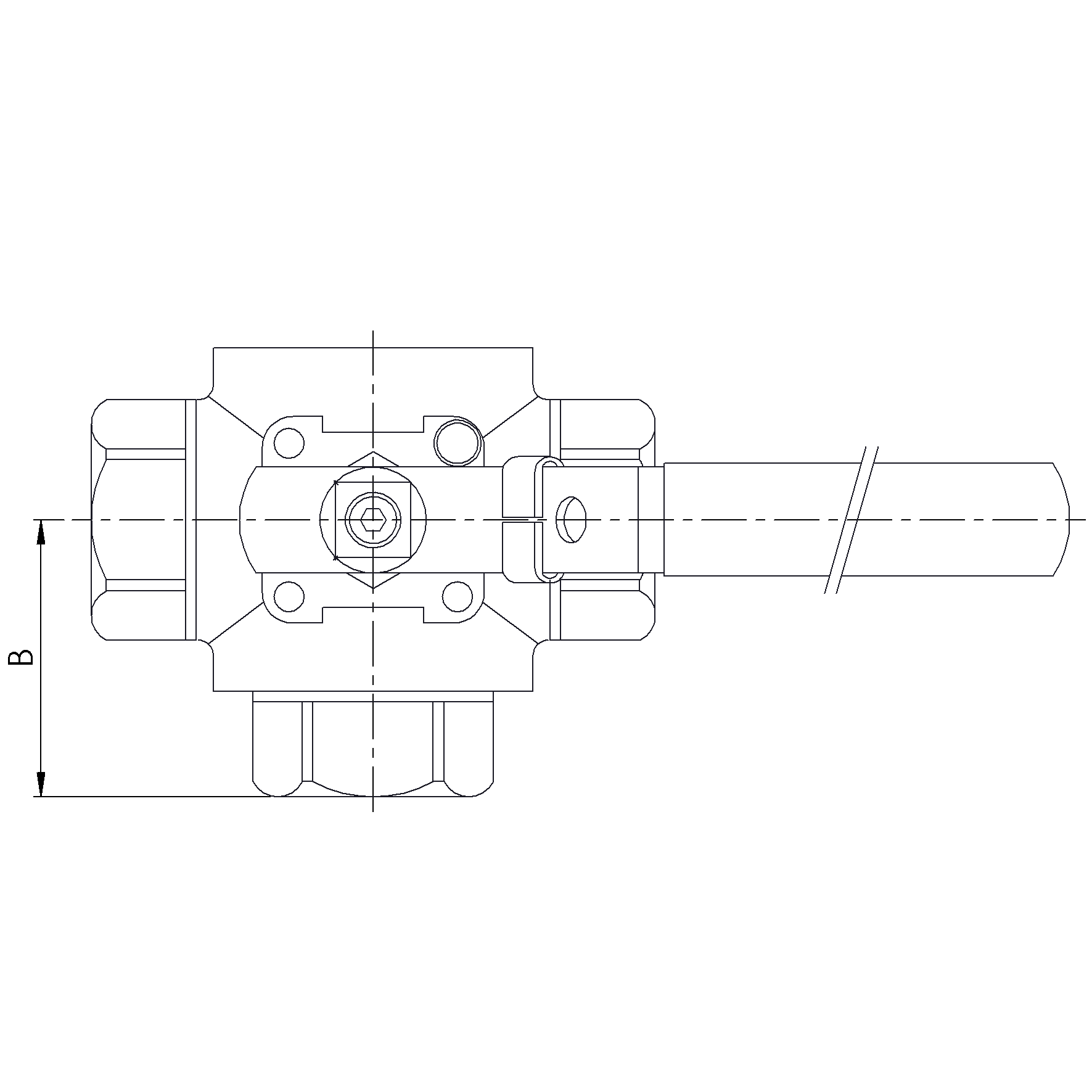

DN Pressure Rating Id L Kg L1 Inch H Ø A B
10 63 64 0.5 132 3/8" 58 11 32
