Ball Valve ¼" PN63
Details

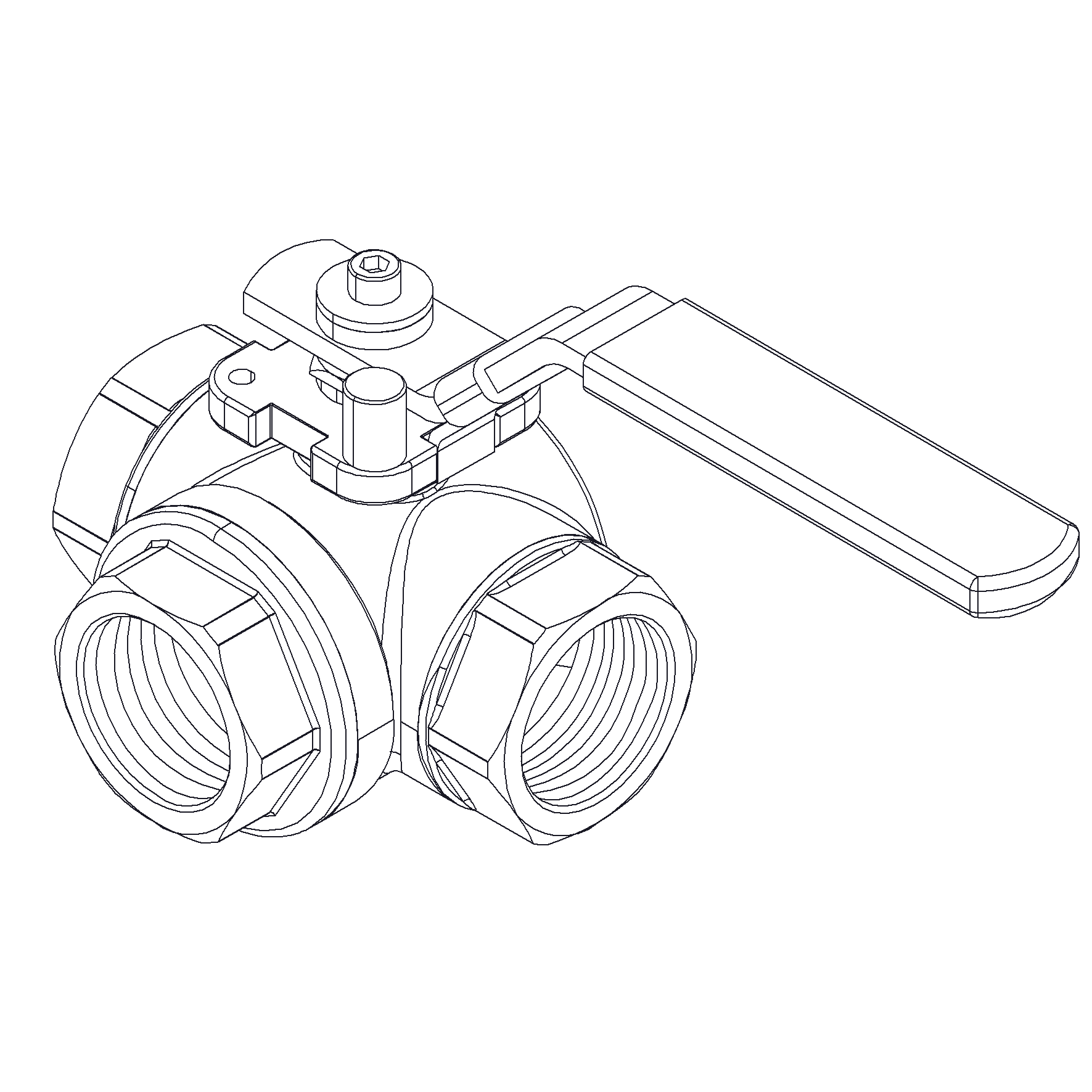

3-way, reduced bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 448095 |
| Throughput Direction | 3-way |
| End Standard | ISO 228-1 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 8 |
| Material Seat | PTFE |
| Pressure Rating | PN63 |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000942 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | L-port |
| Execution | Reduced Bore |
Partslist and details

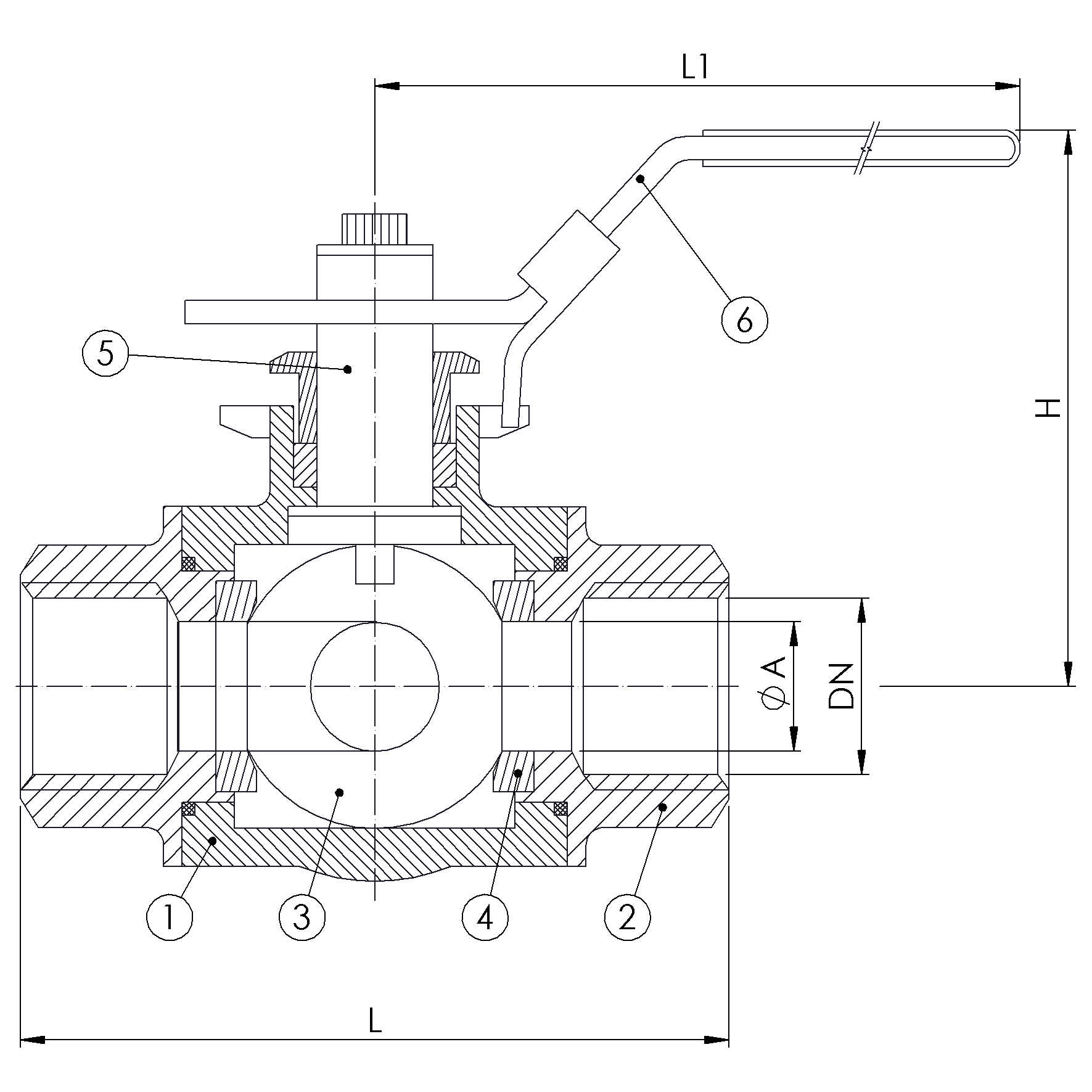

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 304 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A | B |
|---|---|---|---|---|---|---|---|---|
| 8 | 63 | 64 | 0.5 | 132 | 1/4" | 58 | 11 | 32 |
